The Kit Came automation sliding gate 800Kg 230V 001U2313
The Kit Came automation sliding gate up to a weight of 800 Kg (1,770 lb) and length Max leaf 14 m length, power supply 230VAC. Not for intensive use.
The Kit Came automation sliding gate 800Kg 230V 001U2313
Tax included
The complete systems for the automation of sliding gates are the best solution to ensure maximum efficiency and safety with the added comfort of having all the necessary devices for an installation in a workmanlike in a single kit.
The proposed solution in the kit is for sliding gates up to 800 Kg or 14 m long, providing great advantages for the installer, or technology EN Tested for easy certification of the plant in accordance with European Regulations, and also for the user of the system that integrates an electronic system managed by an encoder for safe motion, and constant, and the safety of those using the gate.

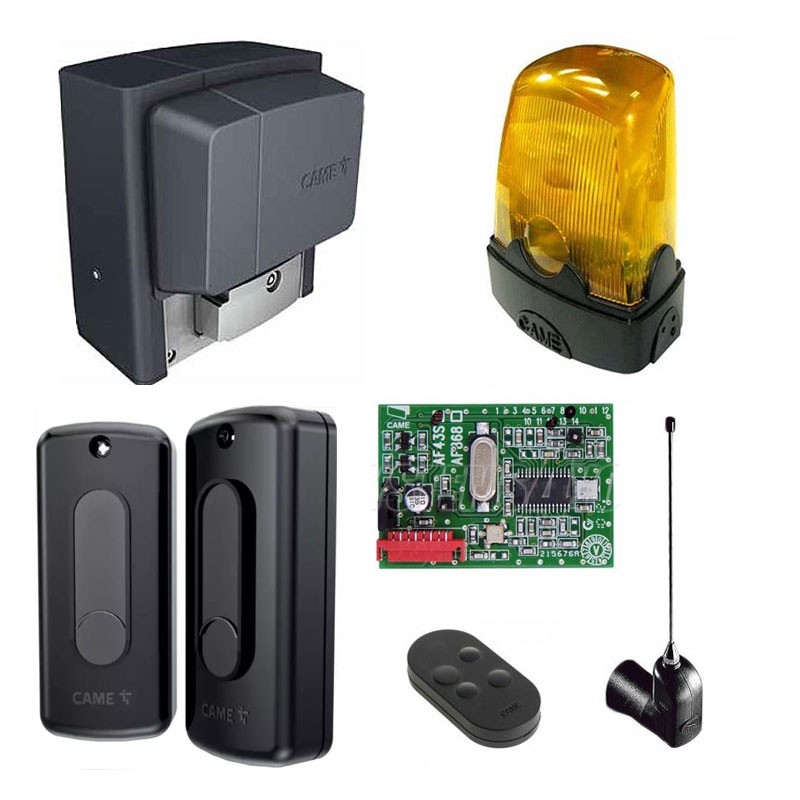

The Kit is composed by:

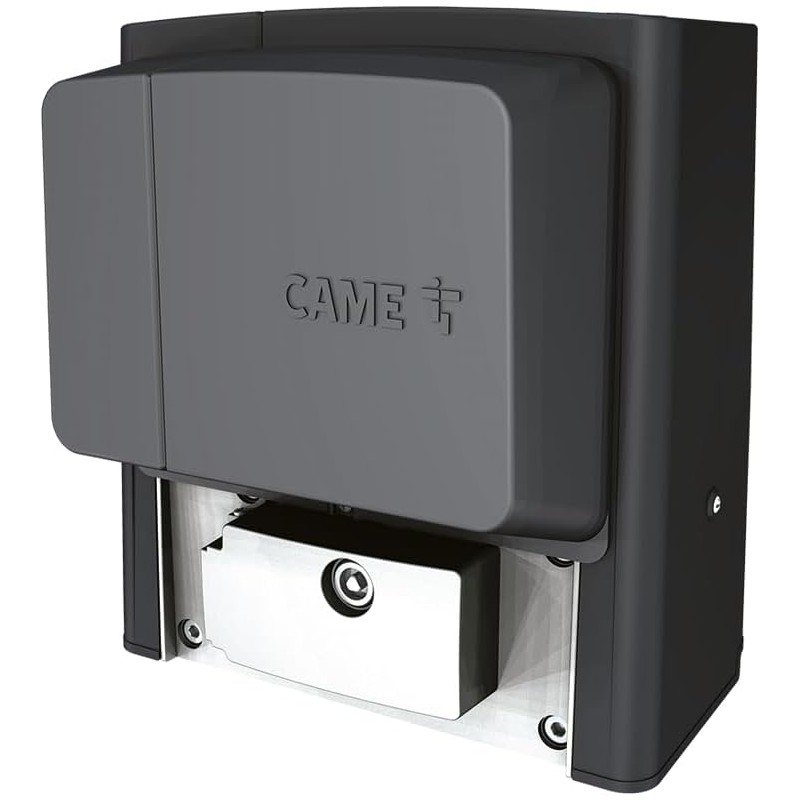

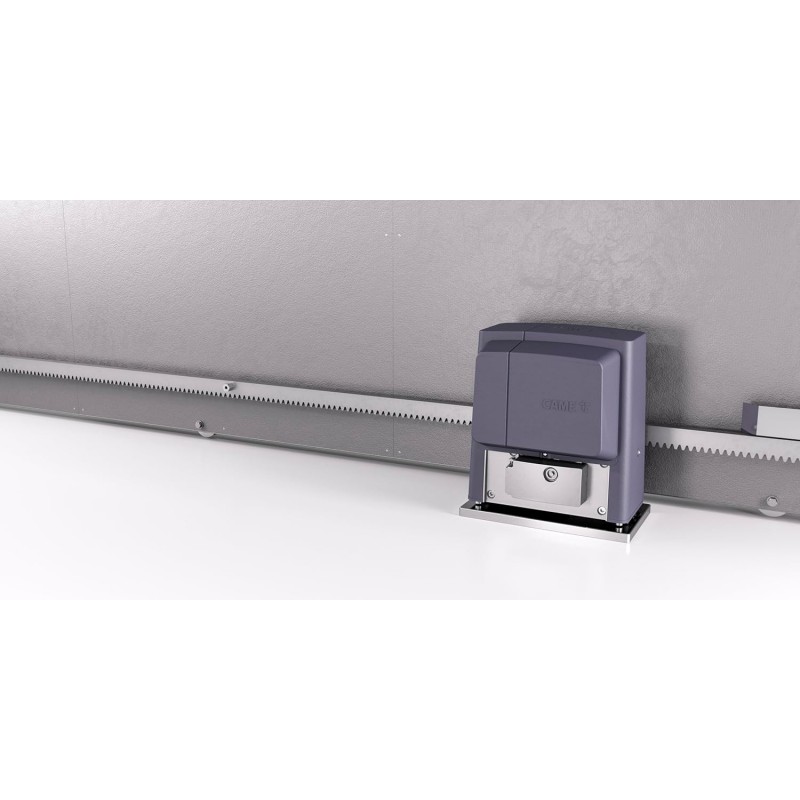

- 1 piece engine BX708AGS (ex BX78), complete with electronic card, with display programming

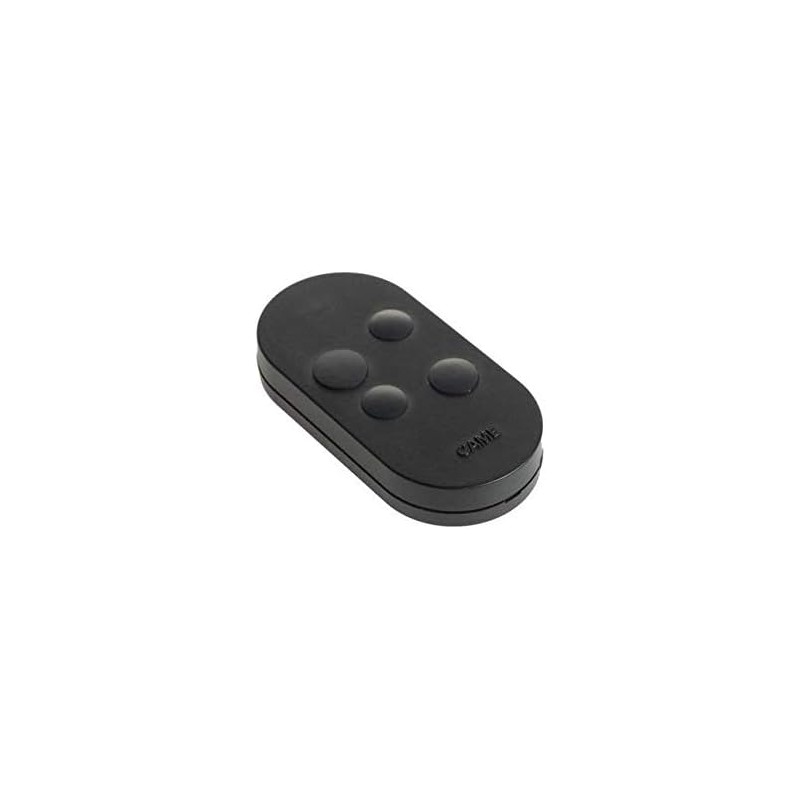

- 1 piece remote control (806TS-0102) TOPD4FKS dual-frequency yamaha's proprietary and highly learning-black color
- 1 piece antenna 433.92 Mhz (001TOP-A433N)

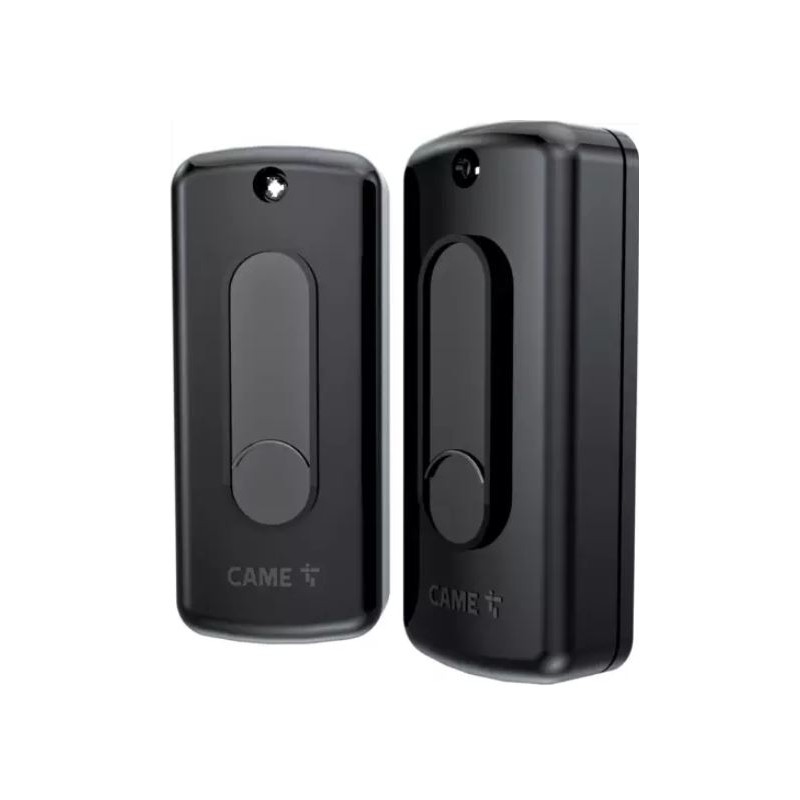

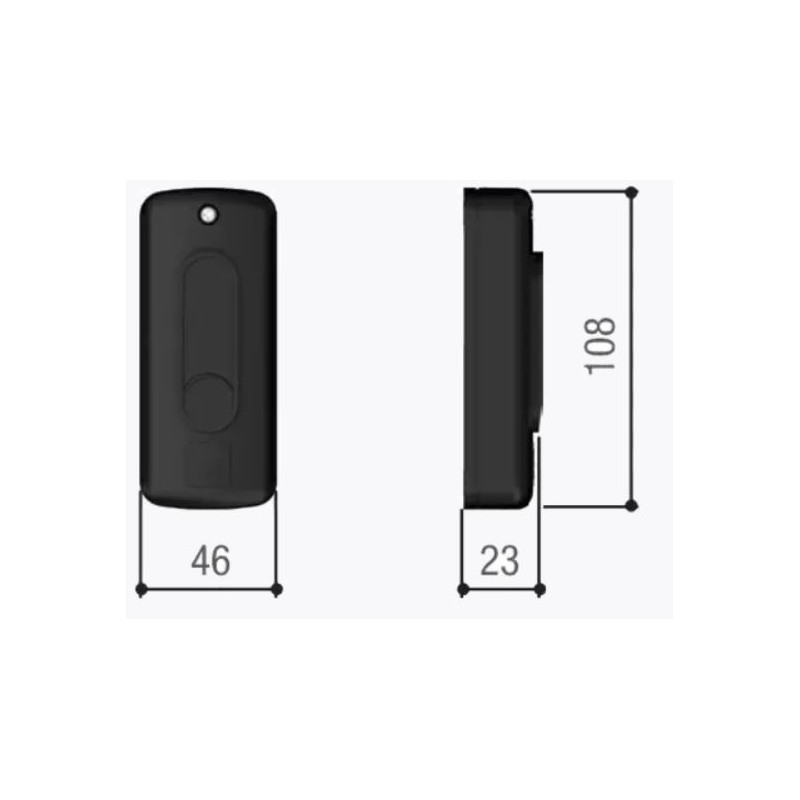

- 1 pair of external photocells (001DIR10)

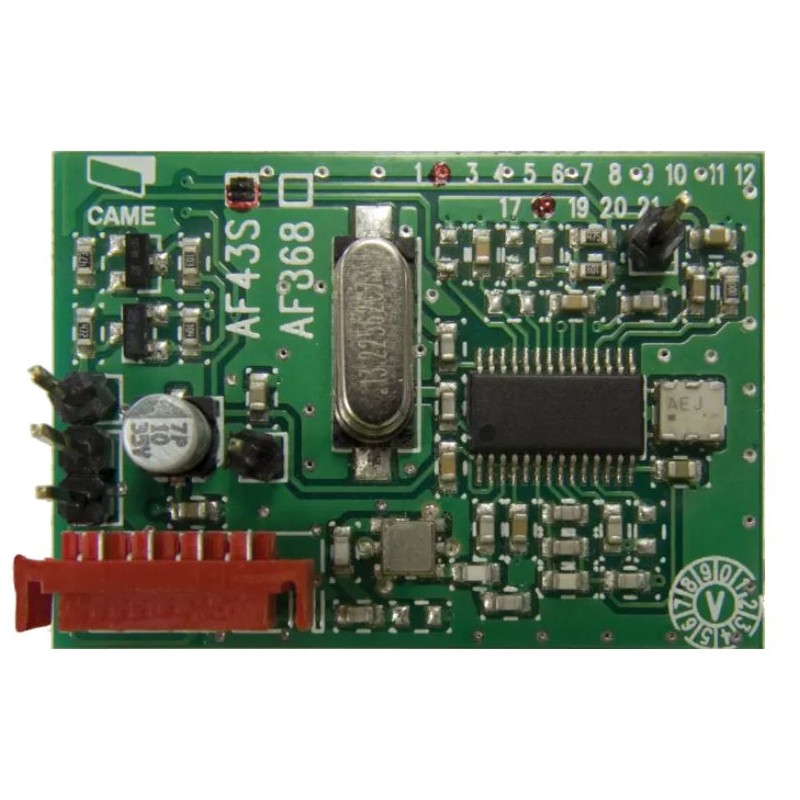

- 1 piece adapter 433.92 Mhz (AF43S)

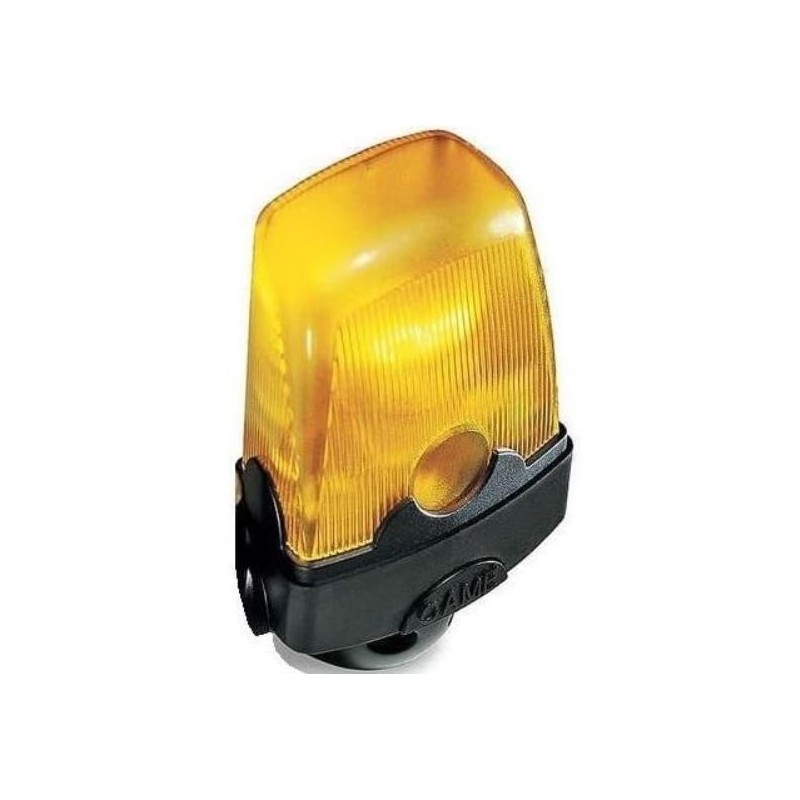

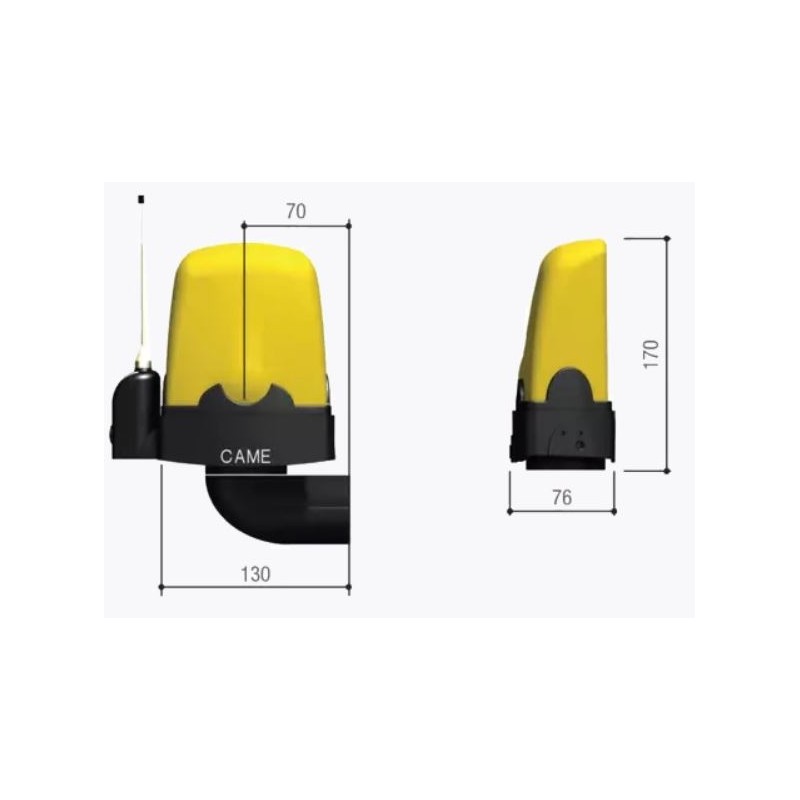

- 1 piece Flashing Led Yellow (001KLED).
Technical features motor:
- Degree of protection IP 54
- Power supply (V - 50/60 Hz 230 AC
- Absorption (A) 2,4
- Power 300 W
- Opening time (m/min) / (ft/min) to 10.5 / 34.5
- Duty Cycle 30%
- Thrust 800N
- Operating temperature (°C / °F) -20 ÷ +55 / -4 ÷ +131
- Motor's thermo-protection (°C / °F) 150 / 302
Features safety:
- Partial Stop
- Detection of obstacle in front of the photocells
- Device for the Movement control and obstacle Detection
Command functions:
- Partial opening 1 door
- Function, Only "Open" from the transmitter and/or button
- OPEN-STOP-CLOSE-STOP from transmitter and/or button
- OPEN-CLOSE-INVERSION from transmitter and/or button
- Maintained Action
Features and adjustments:
- Link LAMP CYCLE
- Closing time adjustable auto
- Deceleration on opening and/or closing
- Speed slow-down adjustable
Data sheet
- KIT:
- Kit Gates
- Type:
- Engines Gates
- Model:
- Sliding gate
