The engine Came " for sliding gates BKS22AGS up to 2200KG 801MS-0100
CMC 801MS-0100
8050456067623

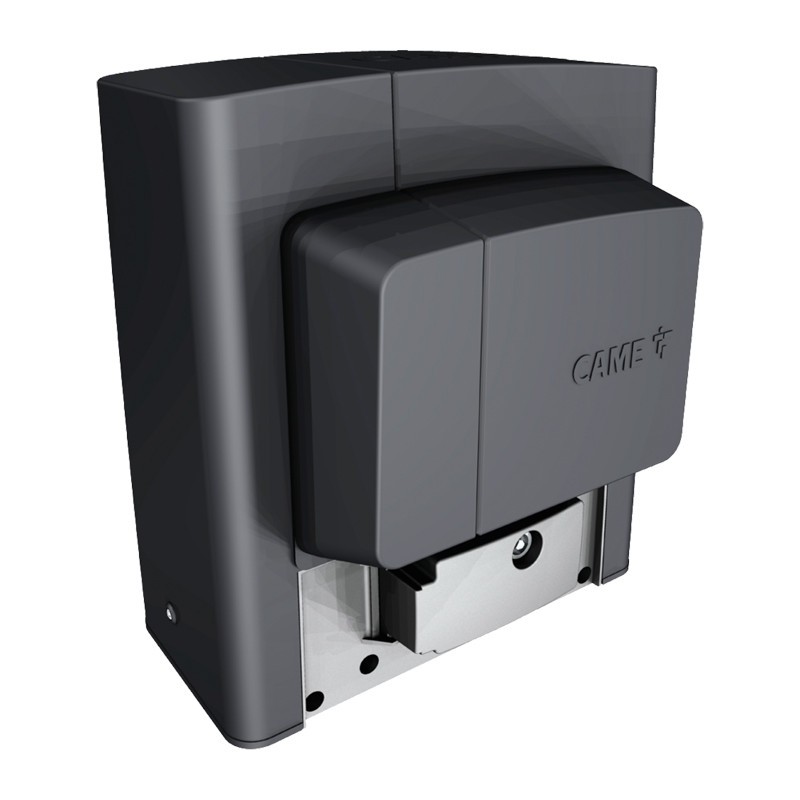

The engine came " for sliding gates BKS22AGS complete of electronic board with display, programming, radio decoding and mechanical limit switches, for sliding gates up to 2200 kg and 20 m in length.
The engine Came " for sliding gates BKS22AGS up to 2200KG 801MS-0100
€965.08
€965.08
Tax included
Tax included
Pay in installments with Klarna
Items Available: 2
Features:
- Electronic board with terminal blocks, the display and storage of up to 250 users
- Self-diagnosis of safety devices
- Provision for installation of limit switch magnets
- Configurable safety inputs for the direct management of the "resistive" sensitive edge (8k2?)
- Degree of protection IP44
- Power supply (V - 50/60 Hz) 230 AC
- Motor power supply (V) 230 AC
- Absorption (A) 5,1
- Power 660W
- Maneuvering speed (m/min) 10,5
- Cycles/Hour 14
- Thrust (N) 1500
- Operating temperature (°C) -20 ÷ +55
- Motor's thermo-protection (°C) 150.
There are no reviews
Data sheet
- Type:
- Engines Gates
- Model:
- Sliding gate
