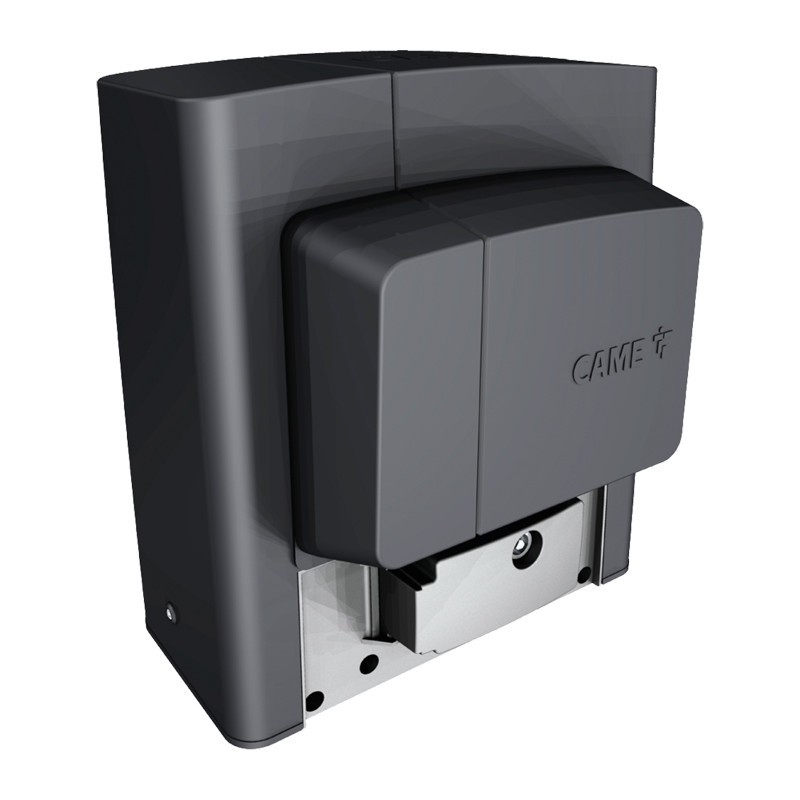

Came Engine for sliding gates BKS18AGS up to 1800KG 801MS-0090
CMC 801MS-0090
8050456067616
Came engine for sliding gates BKS18AGS complete of electronic board electronics with programming display, built-in radio decoder and mechanical limit switches, for sliding gates up to 1800 kg and 20 m in length.
€897.73
Items Available: 4
Features:
- Electronic board with terminal blocks, the display and storage of up to 250 users
- Self-diagnosis of safety devices
- Provision for installation of limit switch magnets
- Configurable safety inputs for the direct management of the "resistive" sensitive edge (8k2?)
- Degree of protection IP44
- Power supply (V - 50/60 Hz) 230 AC
- Motor power supply (V) 230 AC
- Absorption (A) 4.2
- Power 660W
- Maneuvering speed (m/min) 10,5
- Cycles/Hour 14
- Thrust (N) 1150
- Operating temperature (°C) -20 ÷ +55
- Motor's thermo-protection (°C) 150.
There are no reviews
Data sheet
- Type: Gate motors
- Model: Sliding gate
