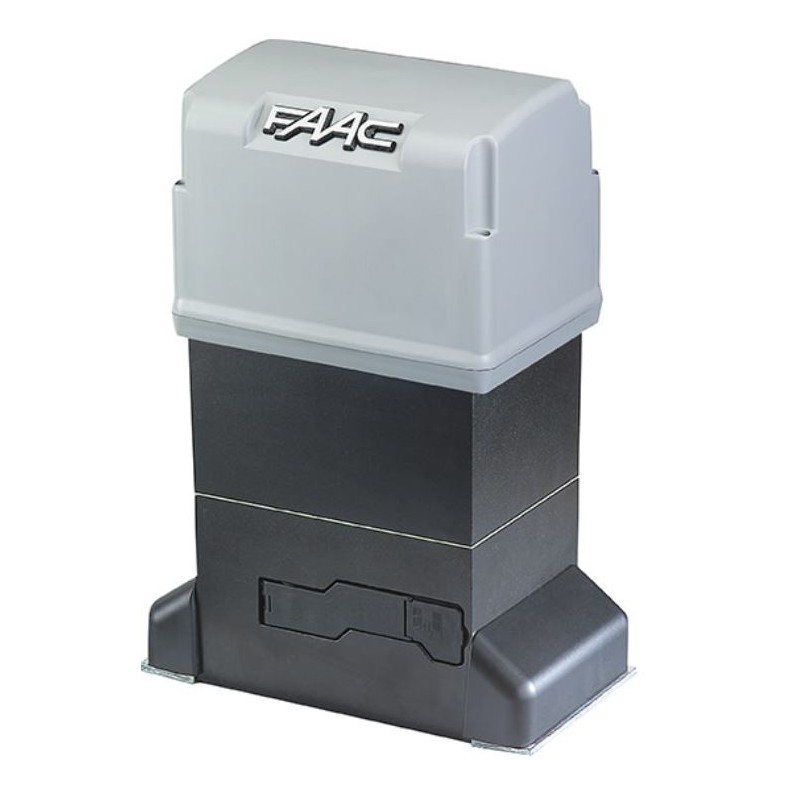

Faac sliding gate motor 844 C Z16 230V 109925
FAA 109925
8055195064483
Faac gearmotor for sliding gate model 844 C Z16:
- Mains supply voltage 220-240V~ 50/60 Hz
- Power max 230 W
- Z16 pinion gear module 4
- Max thrust force 1300 N
- Max leaf weight 1800 kg
- Max sash speed 9.5-12 m/min
- Max sash length 40 m
- Stopping space 30 mm
- Degree of protection IP44
- Inrush capacitor 18 µF
- Ambient operating temperature -20° ÷ +55°C
- 120°C self-restoring thermal protection
- Frequency of use: continuous use
- Weight 16.9 kg
- Model prepared for rack applications
Package includes: a gearmotor with pinion and E781 electronic board, limit switch magnets, release key, screw cover.
€1,031.63
Items Available: 16
Frequently bought together
Strengths:
- Renewed gearmotor with integrated E781 electronic control board that features adjustable speed control levels. Includes two dedicated inputs for safety ribs (NC or 8.2 KOhm) and Bus2Easy technology
- New retroactive motor control with high-resolution encoder, 844 C offers smoother acceleration and deceleration ramps, force optimization reduced fuel consumption, and adjustable sensitivity to obstacle detection
- Compatible with Simply Connect and the new FDS radio technology
There are no reviews
Data sheet
- Type: Gate motors
- Model: Sliding gate
