FAAC hydraulic motor 402sbs max door 3,00 104474
FAA 104474
8055195000863

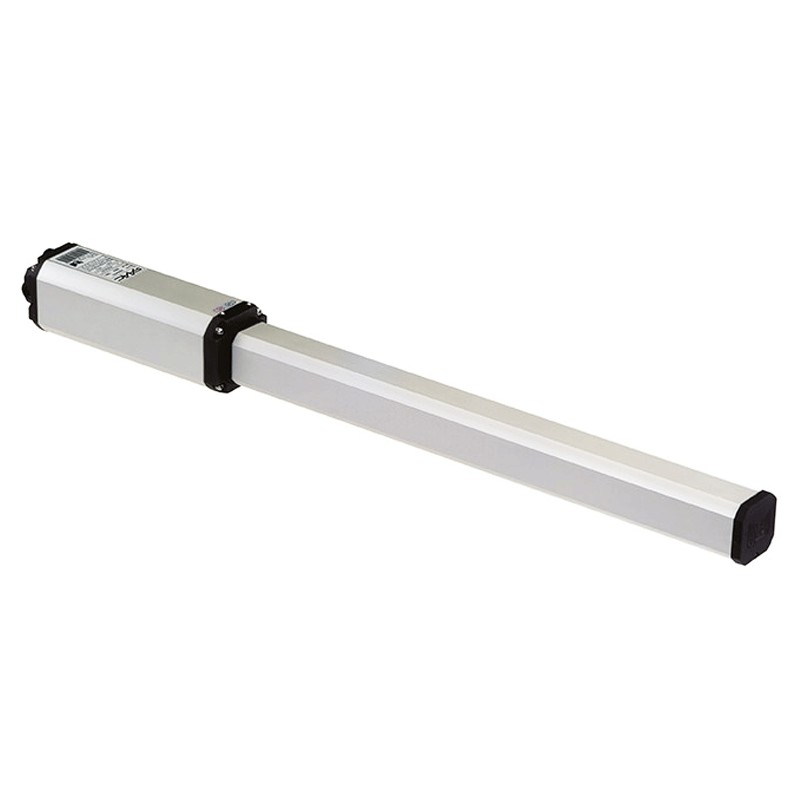

Faac 402 SBS hydraulic motor/actuator, for leaves up to 3 metres high.
€449.57
Items Available: 7
: 2
Minimal footprint, ideal for installation in small spaces, with highly weather resistant anti-corrosion coating.
Features:
- Mains voltage 220-240V ~ 50/60Hz
- Electric motor: single-phase asynchronous
- Power: 220W
- Max thrust force 6900 N
- Max shaft speed 10 mm/s
- Motor-pump group flow rate: 0.75 lpm
- SBS version (without slow block)
- Rod stroke 250 mm
- Max leaf opening angle 110 °C
- Working environment temperature -20°C ÷ + 55°C
- Thermoprotection :120°C
- Degree of protection IP55
- Weight 6,5 Kg
- Frequency of use 55 cycles/hour
- Max leaf width: 3 metres (with electric lock)
- Type of oil: FAAC HP OIL
- Dimensions (WxDxH) :959 x 85 x 85 mm
- Electronic equipment not included
- Rear connection to weld/screw
- Front connection to weld/screw
There are no reviews
Data sheet
- Type: Gate motors
- Model: Swing gate
