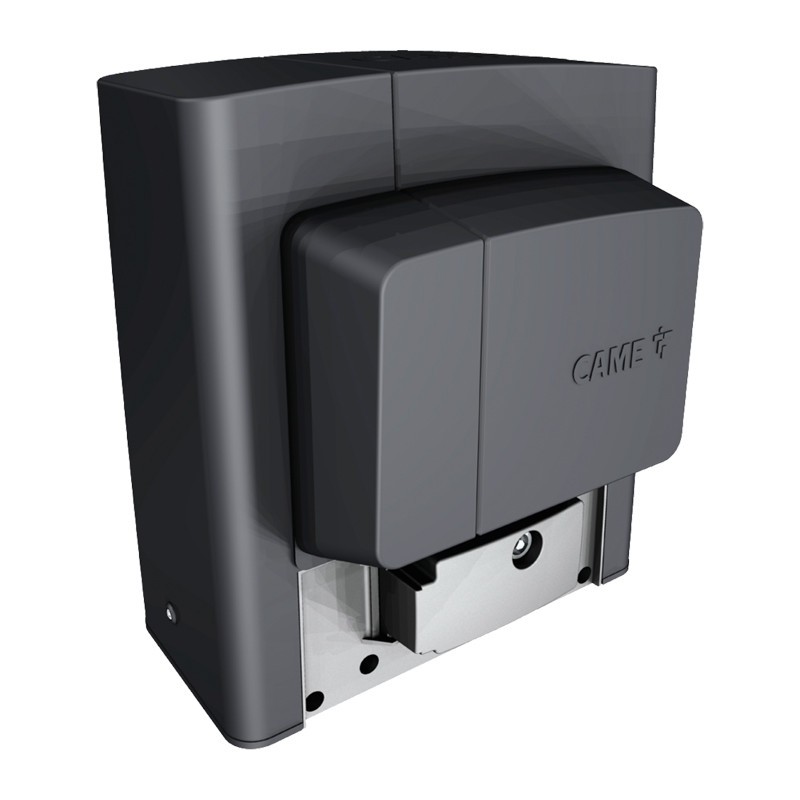

Came motor for sliding gates 1200KG 801MS-0080
Came BK 801MS motor for large sliding gates, with electronic board with display for programming, built-in radio decoder and mechanical limit switch for gates up to 1200 KG and 20 metres long.
Came motor for sliding gates 1200KG 801MS-0080
Tax included
BK 801MS is the complete answer to the automation needs of condominial, industrial and collective sliding gates in general. Maximum flexibility in the automation of multi-user passages.
In addition to the usual control and safety functions, it offers a number of special features that allow total control of automation and optimisation of the service:
- Safe and facilitated passage with the possibility of connecting and controlling auxiliary lighting of the entrance area.
- Partial opening to facilitate pedestrian passage, without opening the entire frame.
- Test of active safety devices on the system before each gate operation, both during opening and closing.
Features:
-
230V 50/60 Hz power supply
- Motor power supply 230V 50/60 Hz
-
Absorption 3,3A
-
Power 380W
- Maneuvering speed 14,5 m/min
-
Thrust 850N
-
Working range: intensive service
-
Motor thermal protection 150°C
- Module 4 pinion for transmission of movement to the rack
-
Plug-in connectors for RIOCN8WS, R700, R800, RSE boards and AF receiver
-
Manages up to 250 users Rolling code
-
Ready for magnetic limit switches
-
Self-diagnosis of safety devices
-
Predisposition for connection of Rio wireless security
-
Compatible with CAME KEY
-
Operating temperature: -20 °C min +55 °C max
-
Acoustic pressure: ≤70dB
-
Weight: 18Kg
-
Dimensions: 326 x 359,5 x 262 mm
Data sheet
- Type:
- Engines Gates
- Model:
- Sliding gate
