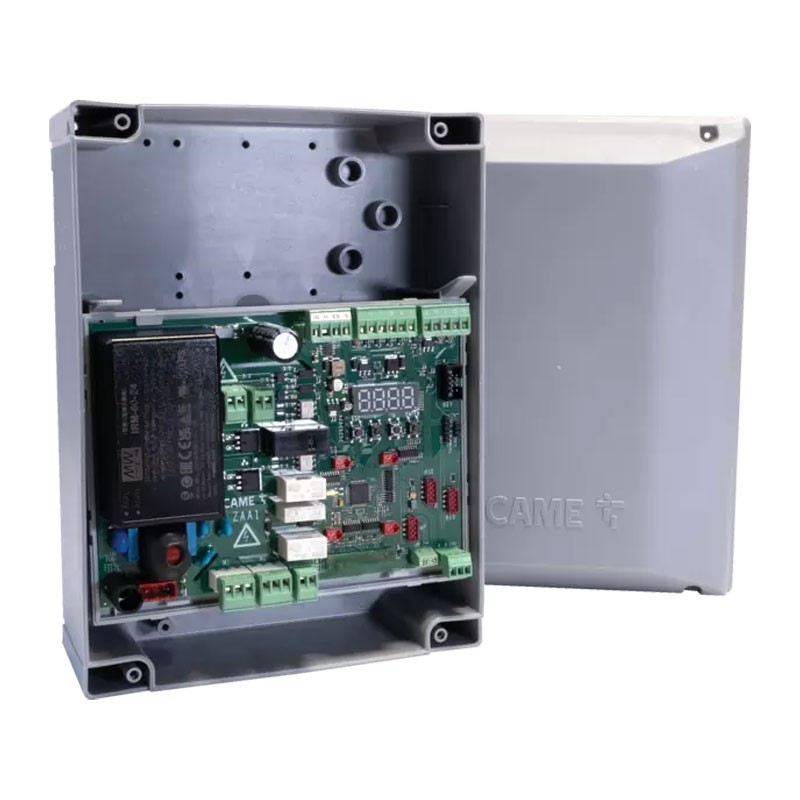

Came Control panel ZLX230P for two-leaf swing gates 801QA-0110
CMC 801QA-0110
8050456091604
The Came ZLX230P control unit (801QA-0110) manages two-leaf swing gates 230V, with integrated display, self-diagnosis, Digital Torque Control, and memory for up to 250 users. Powerful, reliable, and easy to program.
- Power supply for control unit and motors: 230V AC (50/60Hz)
- Maximum power managed: 1100W
- Standby consumption: 0.8W
- Protection rating: IP54
- Programming and diagnostic display
- Digital Torque Control for motor torque adjustment
- 2 safety inputs with self-diagnosis
- Memory for up to 250 users
- Operating temperature: -20 ÷ +55°C
Compatible with all Came series motors (ATI-FAST-FERNI-FROG-KRONO).
Replaces the old board 002ZA3N and 002ZA3P
€204.97
Items Available: 8
Came ZLX230P: intelligence and safety for swing gates
The ZLX230P is the new multifunction control unit from Came for two-leaf swing gates with 230V AC motors. Designed to offer maximum flexibility and ease of use, it integrates a backlit digital display that guides the installer through every programming phase, simplifying configuration and maintenance.
The system ensures smooth, controlled, and safe movements, thanks to the electronic management of motor torque (Digital Torque Control) and precise regulation of speed and opening and closing times.
Advanced safety and integrated self-diagnosis
The ZLX230P is equipped with two safety inputs with self-diagnosis function, which constantly monitor the correct operation of photocells, sensitive edges, and other protection devices. In case of malfunction or anomaly, the control unit immediately signals the error via the display, allowing for quick and safe intervention.
The IP54 protection rating ensures resistance to dust and water splashes, making the board suitable for outdoor installations and challenging environmental conditions.
Intelligent management and advanced features
Thanks to Digital Torque Control technology, the board dynamically adjusts the thrust torque of the motors, improving safety and movement fluidity. The control unit can store up to 250 users, allowing advanced management of remote controls and access devices, perfect for residential and condominium installations.
Integrated functions include:
- Intuitive and multilingual programming via LCD display
- Automatic storage of working times
- Obstacle detection and movement reversal
- Management of flashing lights, electric locks, and status indicators
- Automatic closing and partial opening (pedestrian) function
Easy installation and programming
The Came ZLX230P is designed to simplify the installer's work thanks to:
- clear and guided user interface
- connections with removable terminals
- automatic self-configuration function of devices
- compatibility with Came accessories such as photocells, flashing lights, encoders, and Came TOP remote controls
The board is ready to use and can be integrated into existing systems, ensuring long-term reliability and low energy consumption, with a standby consumption of only 0.8W.
Come da descrizione! Perfettamente funzionante!
bonne facture reste à installer par professionnel
Data sheet
- Type: Central command
