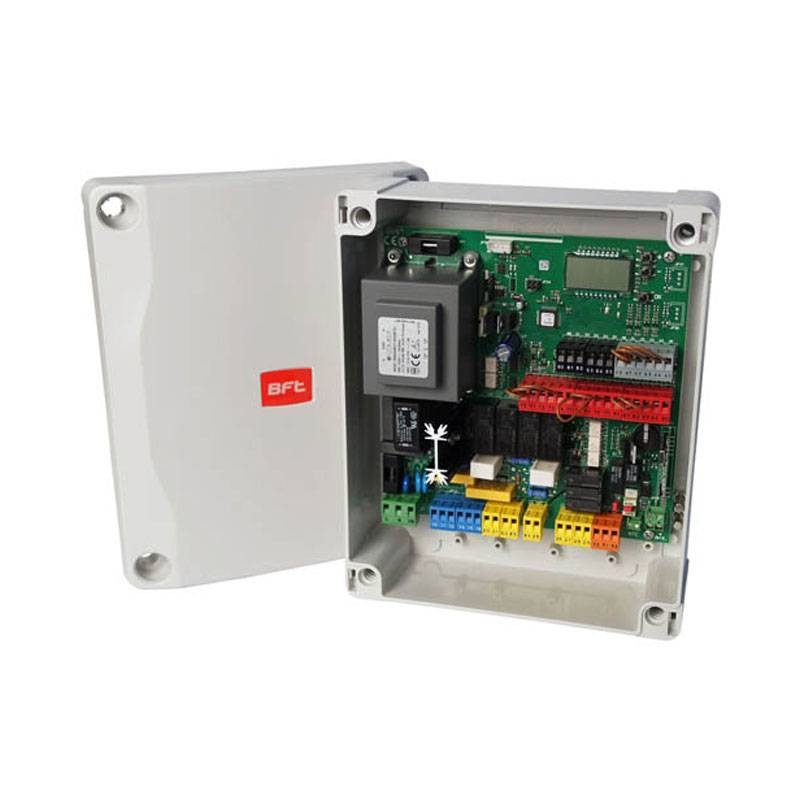

BFT Rigel 6 230V control panel 2600589
BFT 2600589
8027908511447
BFT Rigel 6 universal display control panel for one or two operators 230V, 650+650W:
- Removable terminal blocks
- Programming and diagnostics with display
- Built-in four-channel receiver
- Snap-on or magnetic electric lock connection
- Electronic torque limiter
- Electronic slowdown on opening and closing
- Separate limit switch inputs for each motor
- Possibility of semaphore management and preheating hydraulic operators
- Weekly timer
- Possibility of cancellation of a specific radio control
- Customization of the 4 radio channels
- Customization of timed output duration
- Adjustable obstacle sensitivity.
Compatibility: RIGEL 5 - RIGEL 4 - RIGEL 3 - RIGEL N.
€225.38
Items Available: 12
Main functions:
- Automatic reclosing, separate motor work times, hold lock on closing, water hammer, 2/3/4 step logic, partial opening, quick closing, separate open and close, weekly timer.
Features:
- AUX 3 programmable YES
- Power supply Accessories 24V - 1A
- Stop 1
- Open with Timer 1
- Electric lock 1
- Photocell 1
- Start 1
- Pedestrian Open with Timer 1
- Maximum Power 750 W
- Active Coast 1
- Traffic Light Management 1
- Flashing light 1
- Board power supply 220-230 V
- Resistive coast 1
- Open 1
- AUX 1 programmable YES
- N. Max Remote Controls 63
- Photocell verified 1
- Close 1
- AUX 2 programmable YES
- Programming DISPLAY
- Active coast verified 1
- Interconnectivity YES
- Open pedestrian 1.
Data sheet
- Type: Central command
