Gibidi PASS 840E sliding gate kit 230V K8256N/BFSLT
GIB K8256N/BFSLT

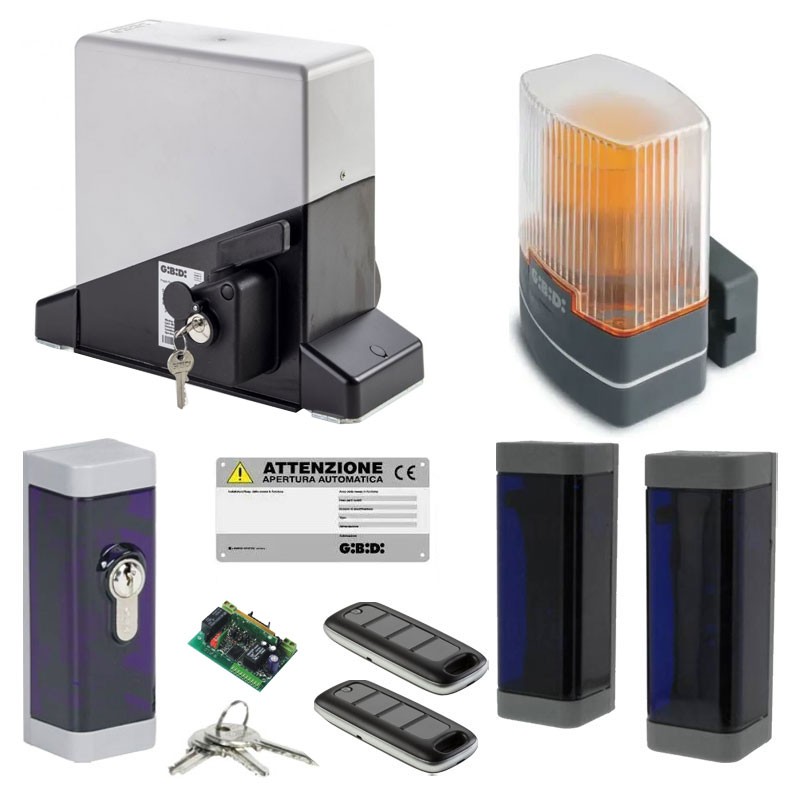

Gibidi PASS 840E irreversible electromechanical 230 vac sliding gate kit for medium size and weight (up to 800 kg) sliding gates suitable for residential and condominium use, kit consists of:

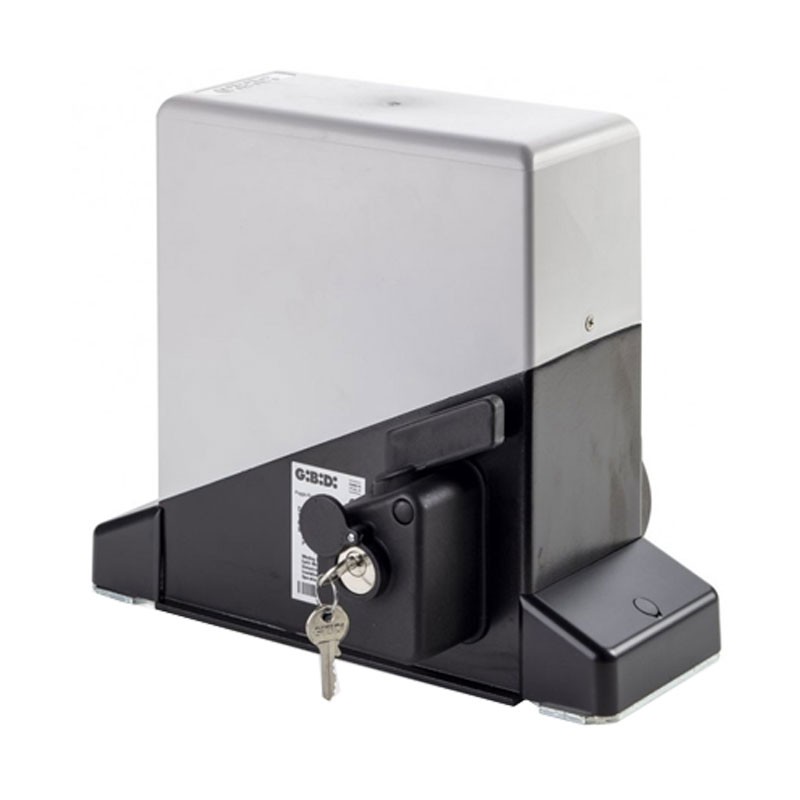

- 1 PASS 840E Motor With SC230E equipment, slowdowns, anti-crushing

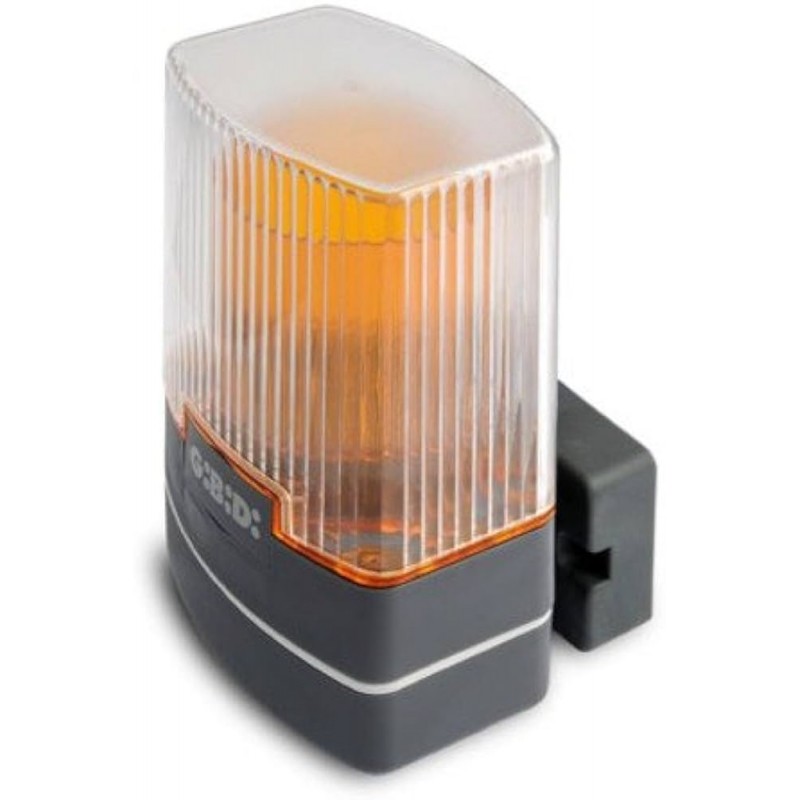

- 1 Complete flashing light DSL70710 230 Vac 70710

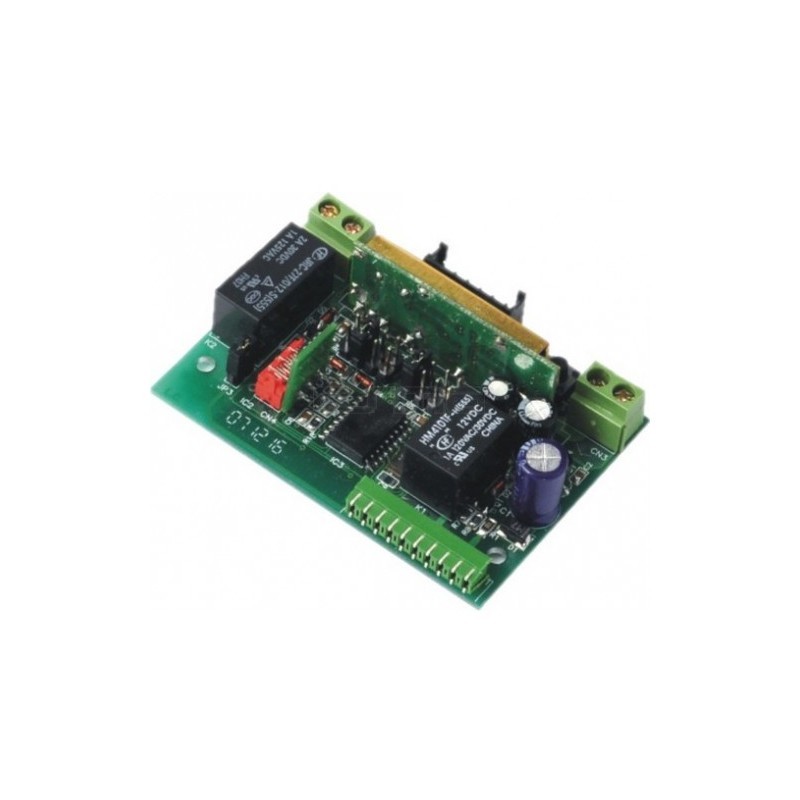

- 1 DRS 4332 2-channel plug-in receiver for control equipment AU02910

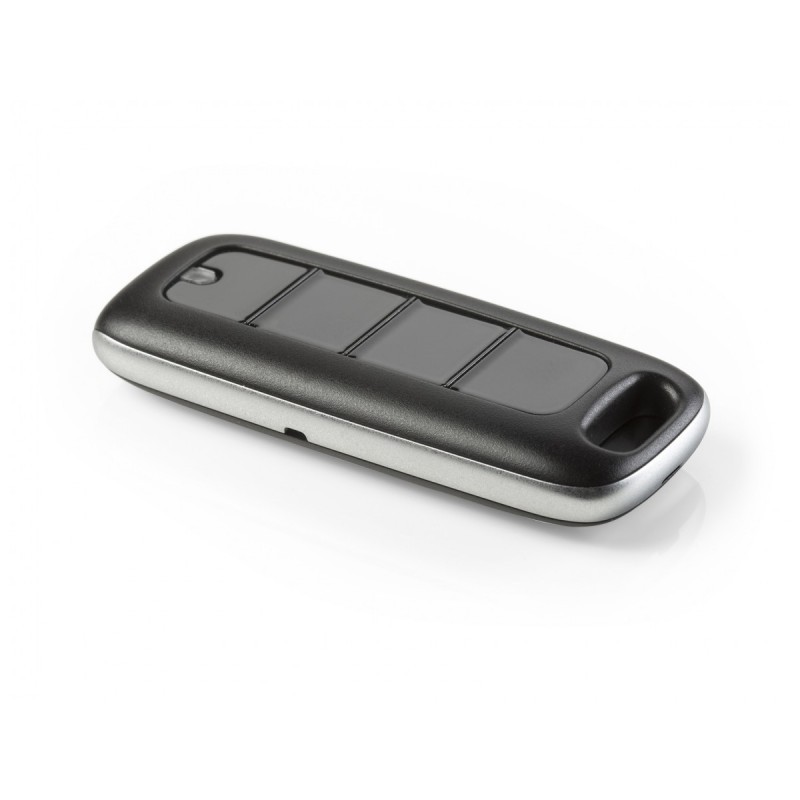

- 2 MAKO Rolling Code radio controls, 4 channels, 433 MHz frequency

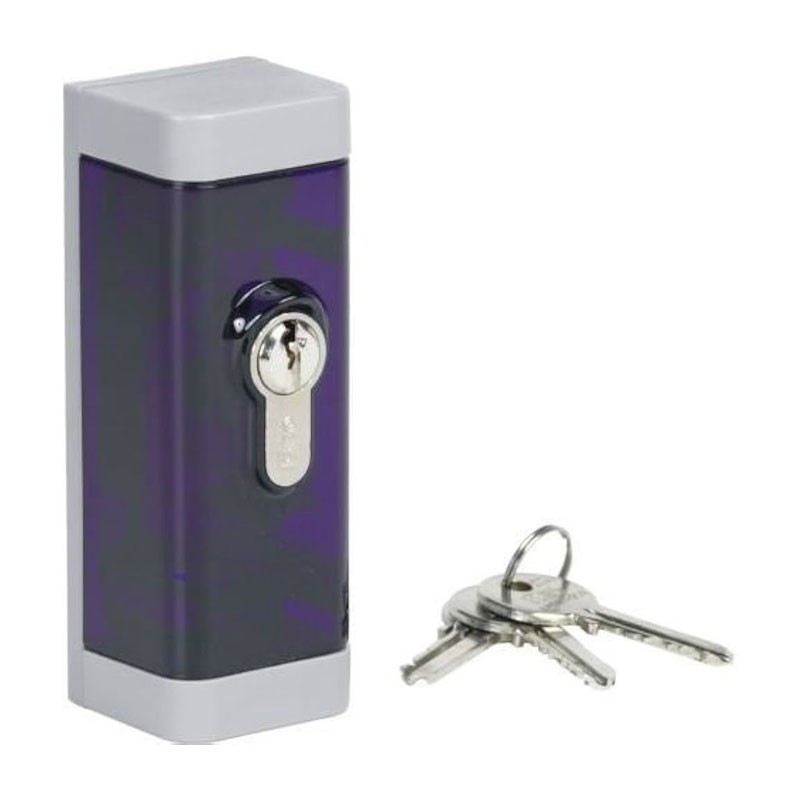

- 1 DCS100 key switch for wall and column mounting DCA series + 3 keys AU01940

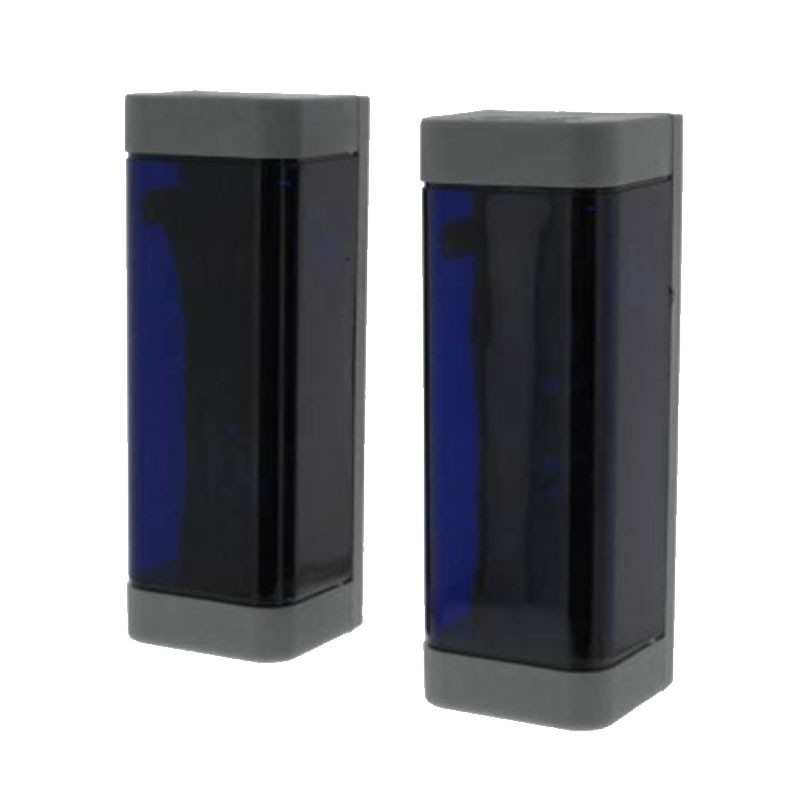

- 1 Pair of DCF180 synchronized photocells, 180° rotation, maximum range 30 m AU02250
- 1 Automatic gate plate AJ75800
Foundation plate code AJ92190 and Rack code AJ91112/3 to be purchased separately.
Gibidi PASS 840E sliding gate kit 230V K8256N/BFSLT
€563.90
€563.90
Tax included
Tax included
Pay in installments with Klarna
Items Available: 24
Frequently bought together
Advantages:
- Easy to install: Control unit in optimal position for the installer. Possibility of adjustments on the horizontal and vertical Axis.
- Quiet and sturdy: Made with generously sized gears, heat-treated and in complete dolio bath. Painted aluminum body that guarantees reliability over time
- Performance: Special dolium-bath motors for excellent performance even with heavy use, versions with mechanical bi-disc clutch. New irreversible and anti-skid gear unit
- Technological and safe: Built-in control unit equipped with all inputs for safeties, Built-in encoder for easy programming and anti-crushing sensitivity adjustment. The highest level of safety, as required by EN 12453
- Design The most compact in its class thanks to the direct horizontal motor, only 10 cm thick
- Built-in control unit
- Mechanics treated steel and oil bath
- Unlocking device with treated steel balls
- Adjustable steel brackets
Technical specifications of the PASS 800 motor:
- Intensive use
- Frequency of use 40%.
- Motor power supply 230 Vac - 50/60 Hz
- Power consumption 400W
- Degree of protection IP55
- Speed 160 mm/s (9.6 m/min) - Z=16 M4
- Max torque 24 Nm
- Torque adjustment Mechanical/electronic
- Speed adjustment
- Max. leaf weight 800 kg
- Operating temperature -20°C +60°C
- Thermal protection 140°C
- GBD PH-01 oil lubrication
- Operator weight 12 kg
Data sheet
- KIT:
- Kit Gates
- Type:
- Engines Gates
- Model:
- Sliding gate
