Ape straight gas sleeve 32x26 mm brass 3AP6033226
55X 3AP6033226
8033708118380
Sleeve Straight press fitting for multilayer pipe Ape AP 603 with the following characteristics:
- Diameter: 32x26 mm
- Material: Brass

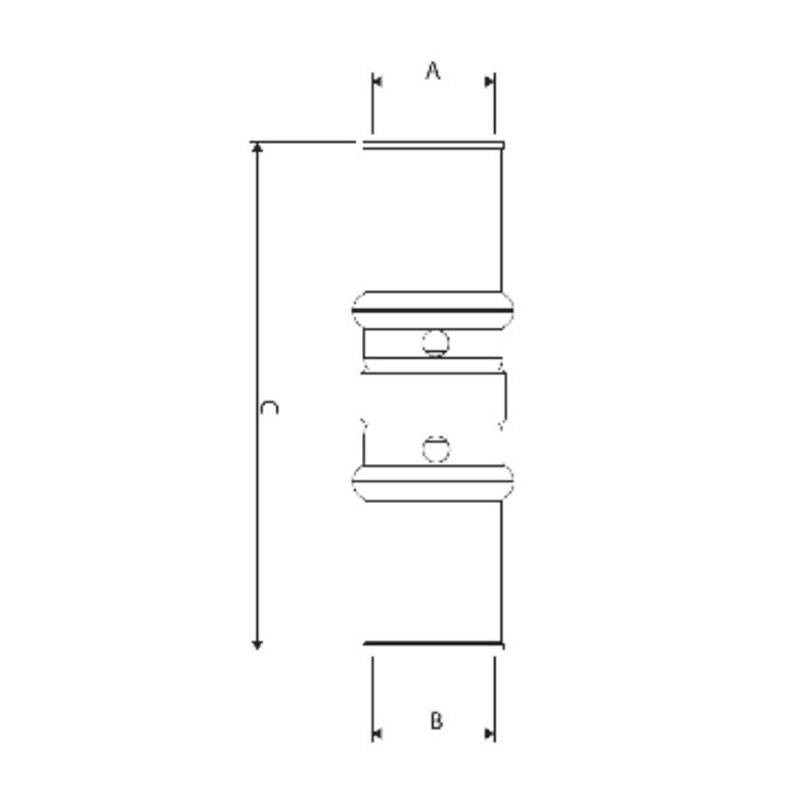

- Dimensions: 32x26x67 (A-B-C)
Application area: Gas adduction systems for domestic use. Application fluid: Natural gas and LPG.
€7.73
Items Available: 20
: 14
Straight press fitting for multilayer pipe. Items are equipped with double o-ring seal, plus PE ring to eliminate any stray currents. The fittings are used in gas adduction systems.
Features:
- Field of application: Gas adduction systems for domestic use
- Application fluid: Natural gas and LPG
- Temperature range: -20/+70 degrees
- Working pressure: MOP 5
- Pipe type: Multilayer PE-Xb/AL/PE-Xb
There are no reviews
Data sheet
- Diameter: 26mm
- Type: Sleeves
- Model: Straight
- Material: Brass
32mm
