Gewiss watertight emergency illuminable pushbutton IP55 GW42201
GEW GW42201
8011564033412
Gewiss watertight emergency pushbutton with two contacts. Wall-mounted, durable and secure installation with the following features:
-
Pushbutton: Illuminable with 1 NO + 1 NC contact included
-
Expandable up to: To 4 contacts
-
Degree of protection: IP55
-
Material: Halogen Free technopolymer
-
Color: Red
-

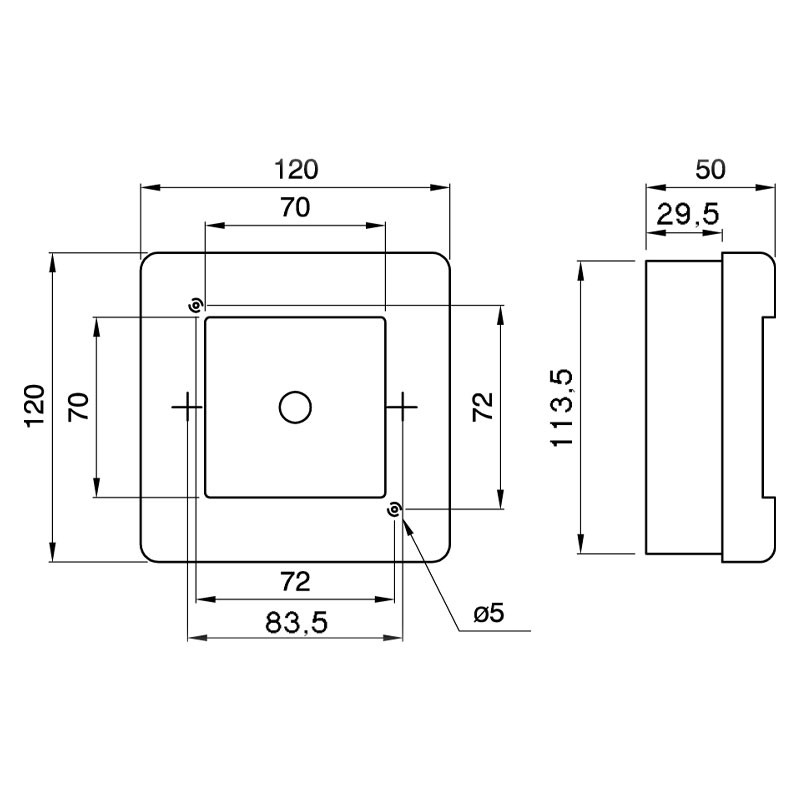

Dimensions: 120x120x50 mm
-
Installation: Wall-mounted
€27.21
Items Available: 1004
: 342
Gewiss emergency pushbutton maximum safety in critical conditions
The Gewiss watertight emergency pushbutton is designed for applications in environments where it is essential to ensure rapid activation of safety devices in an emergency. The illuminable button allows easy identification even in situations of poor visibility.
This model is the ideal solution for security installations in civil, industrial or public environments, thanks to its high robustness and compliance with current regulations.
Protection and reliability even in hostile environments
With an IP55 protection rating and IK08 shock resistance, the Gewiss switchboard is also suitable for installation outdoors or in environments with high exposure to dust and moisture. The body is made of Halogen Free technopolymer, ensuring thermal resistance up to 650°C and high reliability in case of fire.
Expandable and versatile
The switchboard has two contacts (1 NO + 1 NC) already installed and is expandable up to 4 contacts, offering maximum flexibility to adapt to different system configurations. It can be equipped with Ø22 mm mushroom buttons or DIN-rail accessories, making it extremely versatile for every installation need.
Recommended applications
-
Emergency and alarm systems
-
Access control and security devices
-
Installations in public, industrial and commercial areas
-
Environments exposed to dust, humidity or atmospheric agents
Gewiss Pushbutton Technical Specifications
| Installation type | Wall-mounted |
|---|---|
| Dimensions (BxHxD) | 120 x 120 x 50 mm |
| Degree of protection | IP55 |
| Impact resistance | IK08 |
| Color | Red RAL 3000 |
| Rated current | 125 A |
| Rated voltage | 400 V |
| Insulation voltage | 750 V |
| Number of contacts included | 2 (1 NA + 1 NC) |
| Number of contacts that can be installed | Up to 4 |
| Material | Halogen Free Polymer |
| Glow wire resistance | 650 °C |
| Operating Temperature | From -25 °C to +60 °C |
| Insulation class | Class I |
| Accessory compatibility | Push buttons Ø22 mm, DIN rail |
Data sheet
- Type: Emergency
- Degree of protection: IP55
- Model: With door
