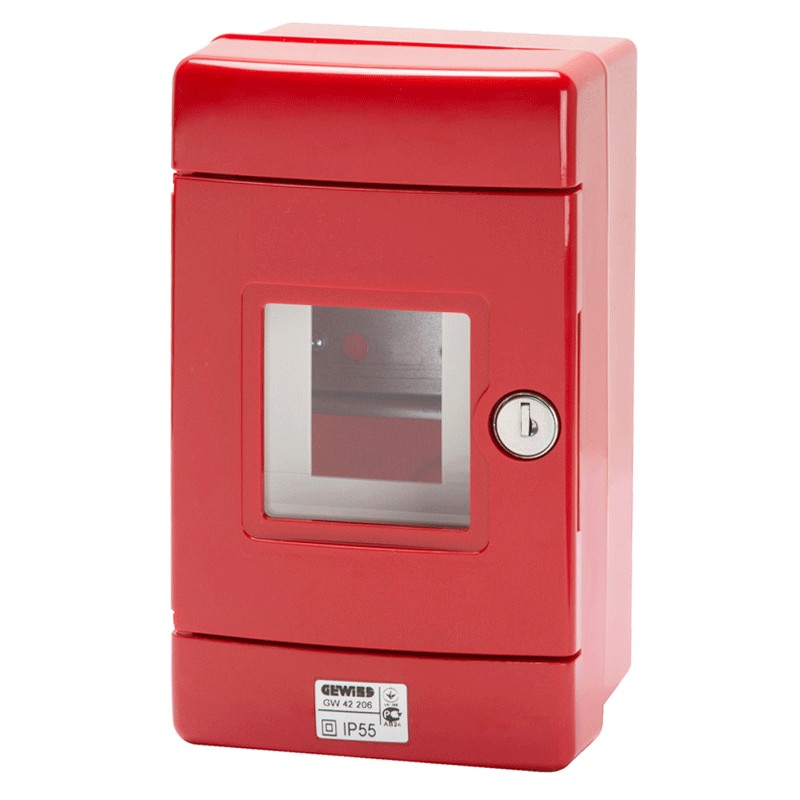

Gewiss watertight emergency switchboard red 4 modules EN50022 GW42206
GEW GW42206
8011564063976
Gewiss watertight switchboard for emergency, with the following characteristics:
- 4 modules EN50022
- IP55 protection degree
- With DIN guide
€52.50
Items Available: 55
: 15
Further Gewiss RCBO combinations:
Features:
- Gewiss Series
- Insulation voltage 750V
- Rated current 125A
- Rated voltage 400V
- Power dissipation 12W
- Glow wire resistance 650 °C
- 4 modules EN50022
- Degree of protection IP55
- With DIN rail
- Insulation class II
- Wall installation
- Thermopressure with ball 70 °C
- Switchboard colour red RAL 3000
- Material technopolymer
- External dimensions BxHxD 108x180x100 mm
- Standard EN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49
- Operating temperature -25 +60 °C
- Shock resistance IK08
There are no reviews
Data sheet
- Type: Emergency
- Modules: 4
- Degree of protection: IP55
- Model: With door
