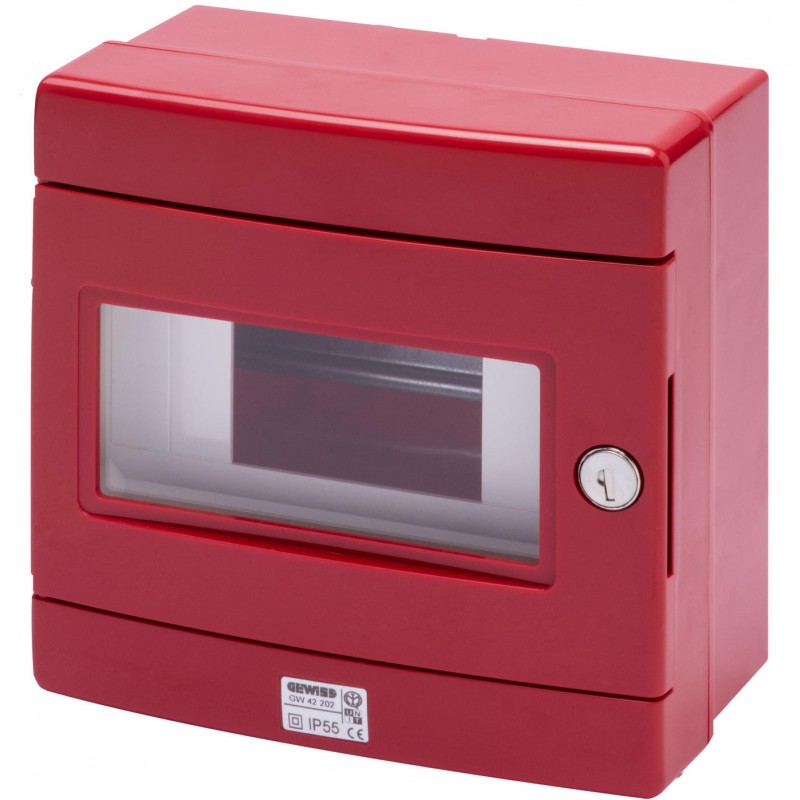

Gewiss Waterproof Switchboard for Emergency 8 Modules IP55 Red GW42202

Gewiss
Gewiss
GEW GW42202 8011564033429

Gewiss waterproof switchboard for emergency installations, with wall installation, made of halogen-free technopolymer. Designed to ensure reliability and visibility even in public environments or critical conditions, with the following features:

  • Number of modules: 8

  • Installation: Wall-mounted

  • Degree of protection: IP55

  • Color: Red

  • Rated voltage: 400V

  • Insulation voltage: 750V

  • Rated current: 125A

  • Power dissipation: 18W

Do you have questions about this product or did you not find what you were looking for? Ask us!
Gewiss Waterproof Switchboard for Emergency 8 Modules IP55 Red GW42202
€57.84
€57.84

€57.84
Tax included
Calculate shipping cost
Items Available: 65
Further availability of the manufacturer
€57.84

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Wall-mounted switchboard for emergency installations: safety and reliability

The Gewiss watertight switchboard is designed for applications in environments where high protection against external agents, such as dust and moisture, is required, without sacrificing visibility and immediate accessibility in case of emergency.

The halogen-free technopolymer housing, which complies with EN 60754-2, ensures low emission of toxic fumes in case of fire, making it ideal for public places such as:

  • Schools and universities

  • Hospitals and health care facilities

  • Airports and stations

  • Shopping malls

  • Industrial areas and workshops

Robust and versatile construction

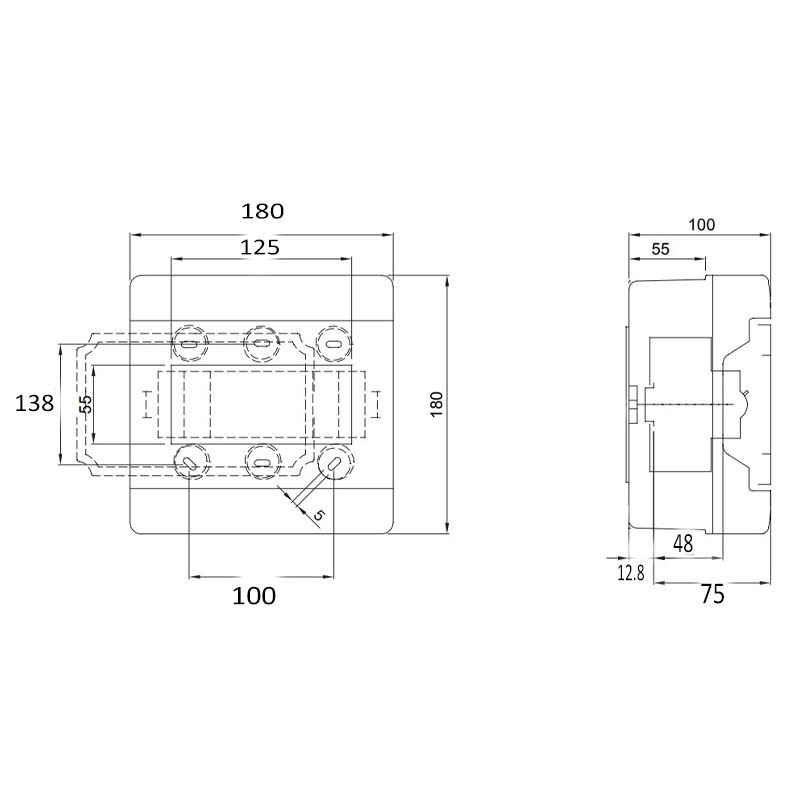

The compact and robust design of the switchboard (dimensions 180x180x100 mm) allows easy integration in any context, while providing IK08 mechanical resistance against accidental impacts.

DIN-rail mount EN 50022 allows safe housing of modular switches, circuit breakers, circuit breakers and other components.

Technical Specifications Gewiss Watertight Switchboard

Number of modules 8
Installation Wall-mounted
Degree of protection IP55
Color Red
Material Halogen free technopolymer
Operating temperature -25 °C / +60 °C
Insulation class II
Rated voltage 400 V
Insulation voltage 750 V
Rated current 125 A
Power dissipation 18 W
Shock resistance IK08
Glow wire resistance 650 °C
Thermopressure with ball 70 °C

Il prodotto è com'è mostrato e descritto nel sito.

Tous c’est bien passé top J’ai bien réceptionné le matériel. Rien à redire

beaucoup moins cher qu'en marque Legrand pour une même qualité

Read all reviews

Data sheet

Type:
Emergency
Front panels
Modules:
8
Degree of protection:
IP55
Model:
With door
