Advantages:

• The double-threaded screw for PV installations on corrugated slab roofs with wood or concrete support structure

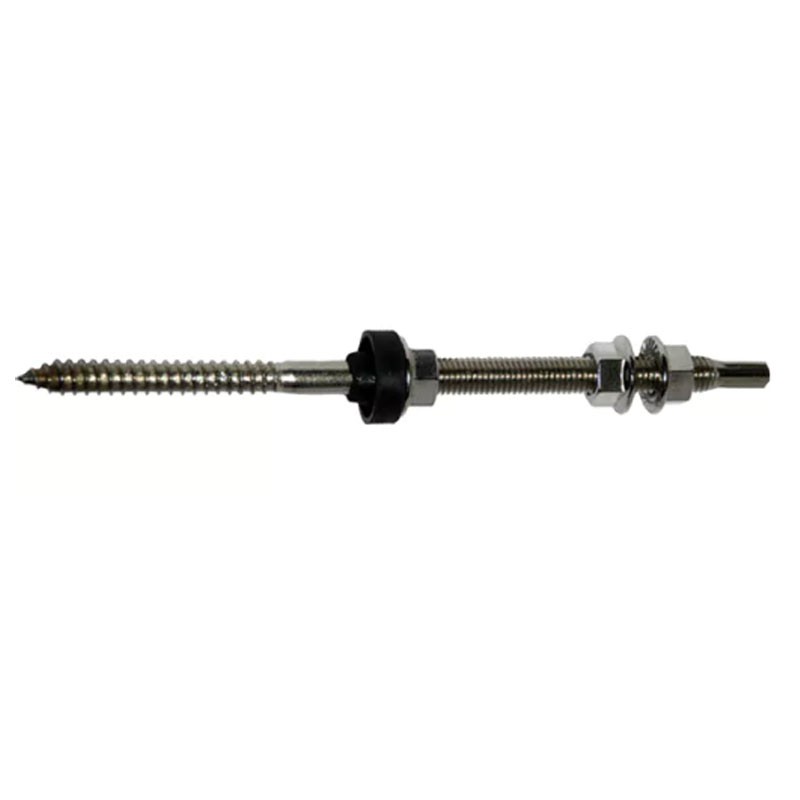

• Complete: the STSR double thread screw comes pre-assembled with EPDM gasket, nut for tightening and nut pair for connection to MW or SSP brackets
• Fast: quick installation because the cover does not need to be removed during installation
• Waterproof: thanks to the EPDM gasket, the waterproofness of the cover is maintained
• Versions: screw and bolts made of A2-70 stainless steel according to EN ISO 3506-1/2;2009




Other information:

• Applications- Suitable for: Corrugated sheet roofing system with: Solar-light profile, Solar-fish profile
• Fixing STSR double-threaded screw: With FIS V chemical anchor on concrete beams and slabs, With FIS V chemical anchor and FIS HK mesh dowel on concrete slabs, Directly on wooden beams after drilling the guide hole
• Supporting materials: Concrete beams and slabs, Concrete slab, Wooden joists
• Certifications: TUV - R 60154136



Assembly:

• Locate the length of the STSR double-threaded screw according to the thickness of the supporting structure.
• Define the spacing of the STSR double-threaded screws according to the snow and wind loads of the installation area of the system and roof pitch.
• Locate the position of STSR double-threaded screws according to the supporting structure and plant layout.
• Drill the support according to the diameter of the screw and the type of support.
• Fasten the STSR double thread screw to the structure by bringing the EPDM rubber into contact with the cover.
• Tighten the MU F flange nut on the gasket to maintain the waterproof seal.
• Attach the SSP or MW connection plate, adjusting its height using the MU F nuts.
