Fischer STSR M10 x 200 mm steel double thread screw 00071202

Fischer
Fischer
FIS 00071202 8001132712023

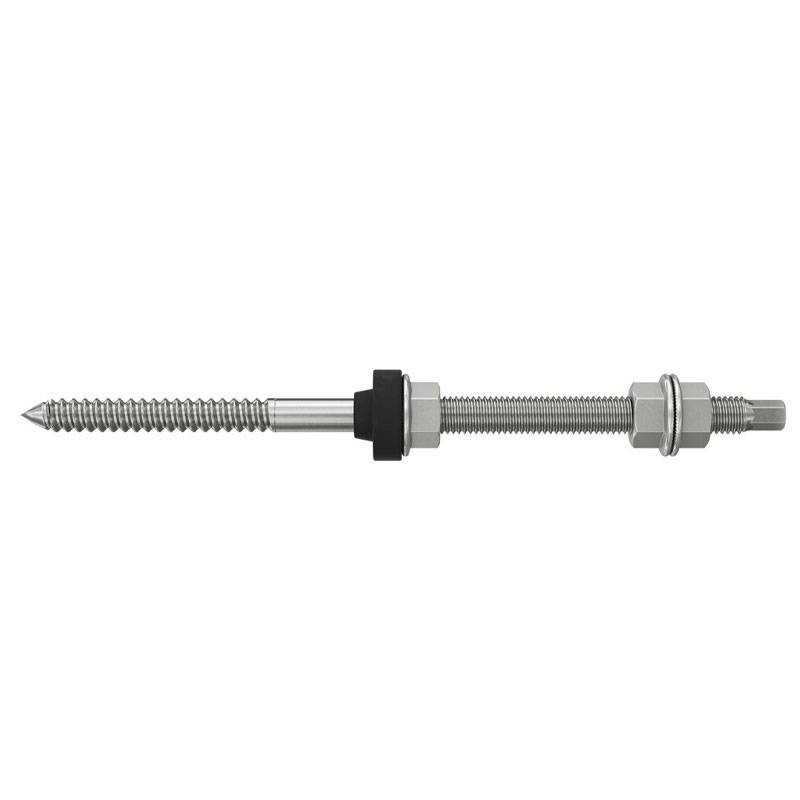

Fischer STSR Double Thread Screw ideal for secure attachment of PV systems to corrugated or faux roofing, with integrated EPDM gasket for reliable sealing against seepage, with the following features:

  • A2 stainless steel: maximum corrosion resistance, ideal for outdoor applications

  • Dual threads: lower for wood (Ø 9 mm), upper metric M10

  • Integrated EPDM gasket: provides protection against water infiltration

  • Total length 200 mm: suitable for various structural configurations

  • Quick installation: does not require removal of the roof covering

  • Universal compatibility: suitable for wood, concrete and brickwork

Do you have questions about this product or did you not find what you were looking for? Ask us!
Fischer STSR M10 x 200 mm steel double thread screw 00071202
€3.36
€3.36

€3.36
Tax included
Calculate shipping cost
Items Available: 653
Further availability of the manufacturer
€3.36

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Fischer STSR double thread screw M10 x 200 mm steel

A versatile and high-performance screw

The Fischer STSR double thread screw is designed for fastening photovoltaic systems on roofs with wood, concrete or ashlar support structure. With its wood-specific Ø 9 mm lower thread and M10 metric upper thread, it offers a stable and secure connection.

The integration of the EPDM gasket ensures a perfect seal against water infiltration, making the screw ideal for installations on roofs exposed to the elements.

Simple and safe installation

Installation of the STSR screw is fast and efficient, without the need to remove the roofing liner. After pre-drilling the substrate, the screw is fastened according to the type of material:

  • Wood: direct fastening after pre-drilling

  • Cement: use of chemical anchor

  • Concrete: use of chemical anchor with FIS HK mesh anchors or FIS HN sock anchors. The process is completed by tightening the screw until the EPDM gasket is brought into contact with the roofing, ensuring excellent waterproofing

Main applications

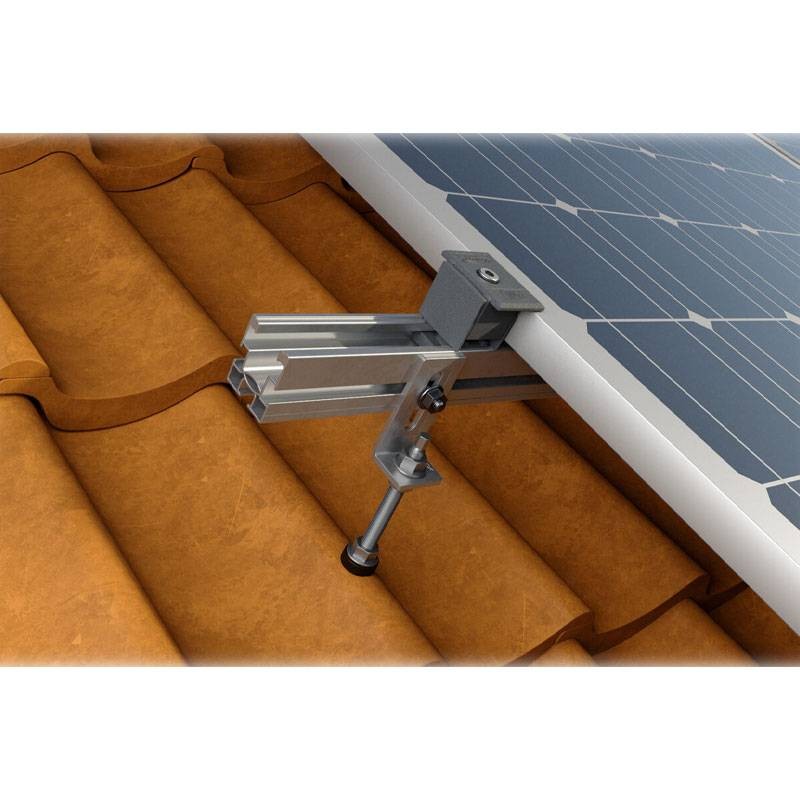

  • Installation of PV panels on corrugated or faux-roofing sheets

  • Fastenings on load-bearing structures made of wood, concrete or lateral concrete

  • Applications requiring high resistance to weathering

Technical specifications

  • Material: A2 stainless steel

  • Total length: 200 mm

  • Bottom thread diameter (wood): Ø 9 mm

  • Wood thread length: 66 mm

  • Metric thread length: 90 mm

  • Shank length: 30 mm

  • Tightening wrench: 15 mm

  • Accessories included: nut and nut pair for connection
