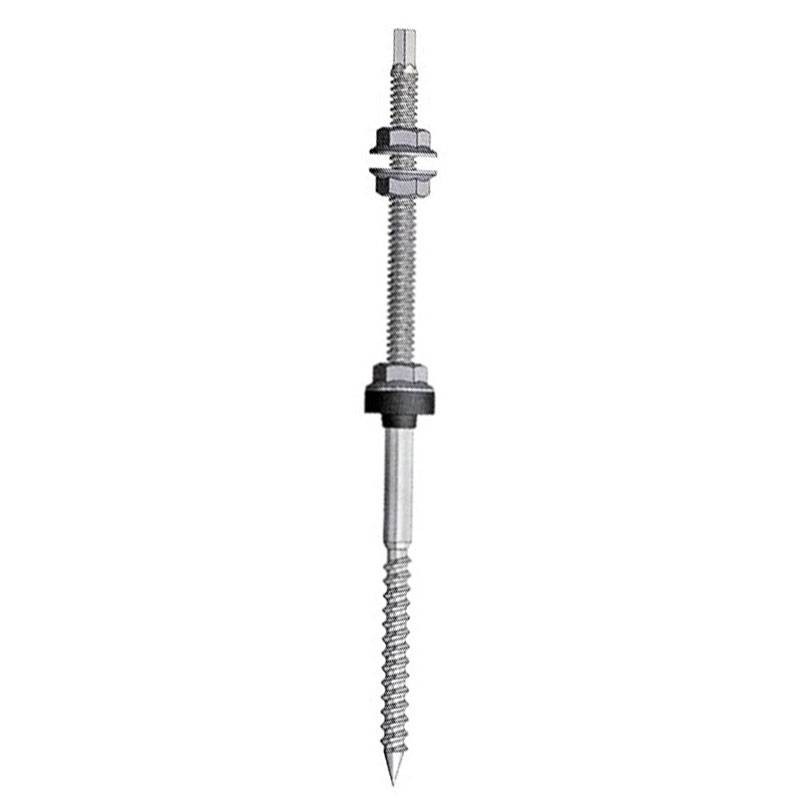

Alusistemi M12 x 350 mm double thread screw for wood ATL022.M12.350
ALS ATL022.M12.350
Alusistemi double-threaded M10 self-tapping screw for secure fastenings on wooden supports. Complete with flange nuts and EPDM gasket for professional photovoltaic installations, with the following features:
-

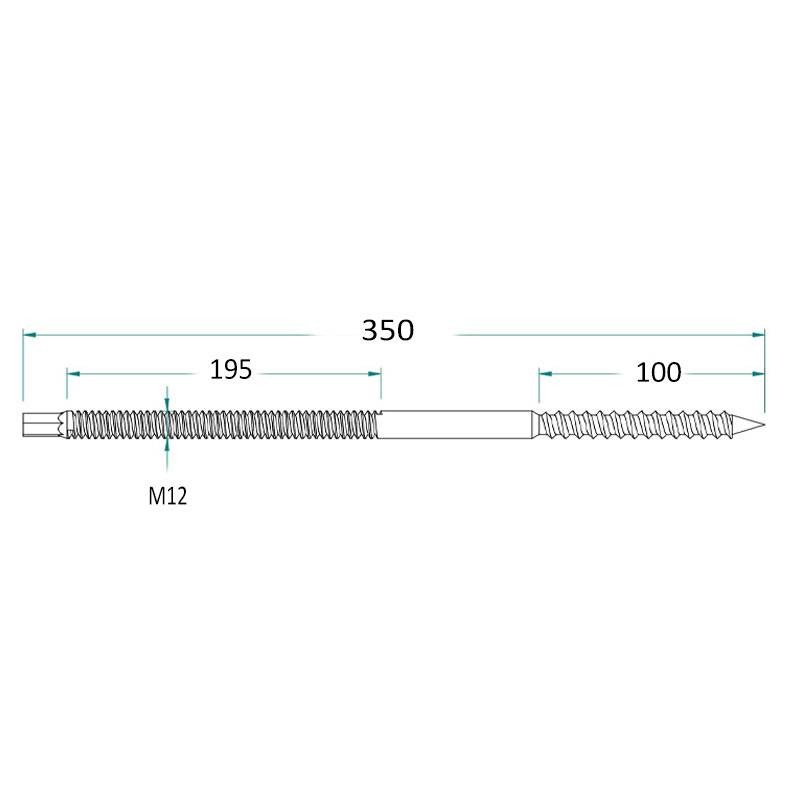

M12 diameter
-
Length 350 mm
-
Double thread for greater hold on wood
-
Integrated EPDM gasket
-
Including 2 DIN 985 flange nuts
€6.32
Items Available: 143
: 129
Frequently bought together
Alusistemi self-tapping screw for fixings on wood.
The screw is designed for the installation of PV systems on wooden roofs, offering a secure and durable fastening system. The double thread ensures efficient penetration and superior hold in wood, making it ideal for structural mountings of profiles and load-bearing stringers.
Tightness and protection even in outdoor environments
Made entirely of A2 stainless steel, this screw resists wear, corrosion and weathering. The EPDM gasket prevents water seepage at the point of attachment, protecting both roof and supporting structure over time.
Adjustable and precise installation
Thanks to the length of 350 mm and the presence of adjustable flange nuts, the height of the support plate can be varied according to the needs of the installation. This allows versatile and stable mounting on sloping or uneven surfaces.
Main applications
-
Installation of stringers and profiles for photovoltaic panels
-
Mounting systems on wooden roofs
-
Use in outdoor environments exposed to moisture or weathering
Always check the compatibility of the component with the target structure. Proper fastening and stability of the system depend on the correct application of the product.
There are no reviews
Data sheet
- Type: Screws
