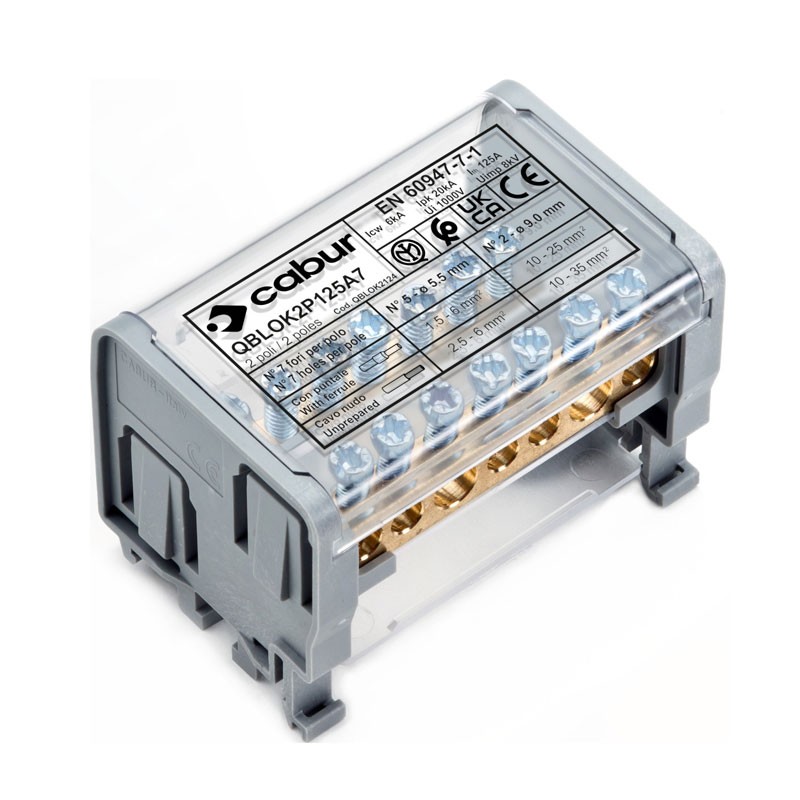

Cabur Distribution terminal block multipolar 125A 7 holes QBLOK2124
CBR QBLOK2124
8017963246057
The multipolar terminal block Cabur QBLOK2P125A7 represents a professional solution for the distribution of electrical energy in civil and industrial installations, with a capacity of up to 125A and maximum voltage of 1000V AC/DC. Designed to ensure maximum safety and ease of wiring, it can be installed both on DIN rail and on panel, offering great flexibility in panel configurations.
- Nominal current: 125 A
- Maximum voltage: 1000V AC/DC
- Number of holes: 7 staggered holes
- Inputs: 2 x 35 mm² - 5 x 6 mm²
- Installation: On DIN rail or panel mounting
- Screws: Galvanized steel with combined slot
- Insulation: Insulating screen for each conductor bar
- Use: Current distribution in electrical panels
€9.92
Items Available: 63
: 21
Multipolar distribution terminal block Cabur QBLOK2P125A7: Compact, versatile and safe
This Cabur terminal block allows the connection of up to two 35 mm² conductors at the input and up to five 6 mm² conductors at the output, making it perfect for compact energy distributions in control, distribution, and automation panels.
The staggered holes simplify the insertion of conductors even in tight spaces, improving accessibility during wiring. Each conductor bar is equipped with an insulating screen, which increases safety during installation and maintenance.
| MAIN FEATURES | |
|---|---|
| Function / Type | Distribution terminal block |
| Number and nominal section of holes | A: 2 × 35 mm² B: 5 × 6 mm² |
| INPUT A | |
| Number of holes | 2 × 35 mm² |
| Nominal section | 35 mm² |
| Connection capacity (flexible) | 10–35 mm² |
| Connection capacity (rigid) | 10–35 mm² |
| Connection capacity (with terminal) | 25 mm² – WP 250/29 |
| OUTPUT B | |
| Number of holes | 5 × 6 mm² |
| Nominal section | 6 mm² |
| Connection capacity (flexible) | 2.5–6 mm² |
| Connection capacity (rigid) | 2.5–6 mm² |
| Connection capacity (with terminal) | 4 mm² – WP 40/16 |
| ELECTRICAL CHARACTERISTICS | |
| Max voltage AC/DC | 1000 V |
| Max current with nominal section | 125 A |
| Permissible short-time current (Icw, 1s) | 6 kA |
| Peak current (Ipk) | 20 kA |
| Nominal impulse voltage / pollution degree | 8 kV / 3 |
| MECHANICAL PARAMETERS | |
| Stripping length | 13 mm |
| Tightening torque (nom. / max.) | 2 / 2.5 Nm |
| Plastic material | Polyamide, polycarbonate |
| Width (pitch) | 72 mm |
| Length | 49 mm |
| Height on TH35-7.5 / TH35-15 rail | 52 / 59 mm |
| Height with panel mounting | 51 mm |
