Universal center clamp PMC U Fischer for photovoltaic panels 30-50mm 00538880
FIS 00538880
8001132059913

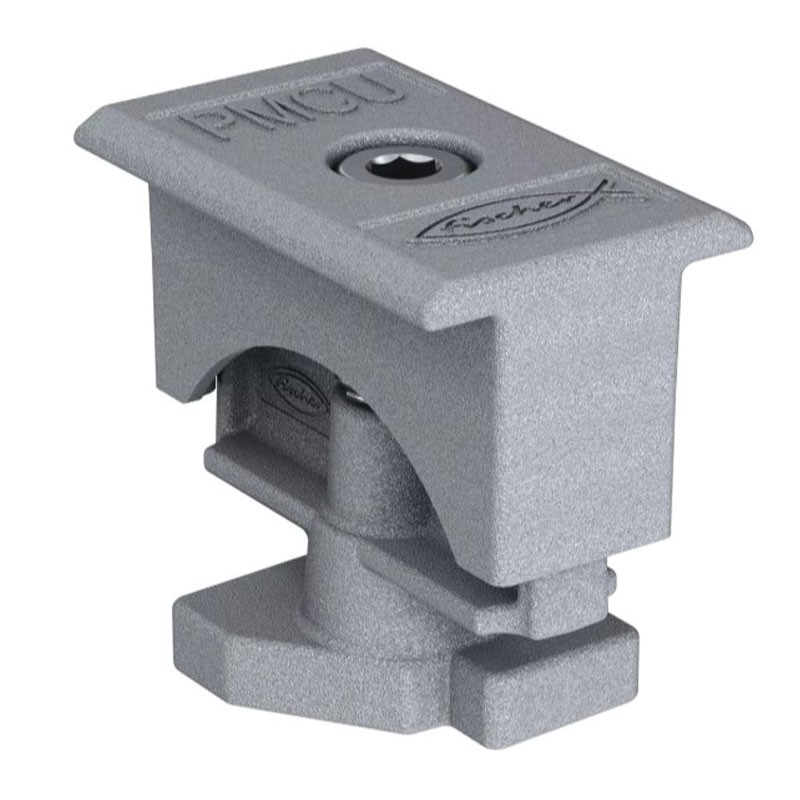

Fischer PMC U universal center clamp, designed for secure and optimized fastening of aluminum framed PV panels. Compatible with all Solar profiles, it is the ideal solution for central applications due to its narrow width, with the following features:
-
For panels from 30 to 50 mm thick
-
Central placement with minimum distance between modules
-
Recessed screw to eliminate shading
-
Quick installation with 45-degree rotation
-
Lifting spring for easy positioning
-
Material: aluminum
€3.31
Items Available: 5905
: 170
Fischer clamp designed for optimized central fixings

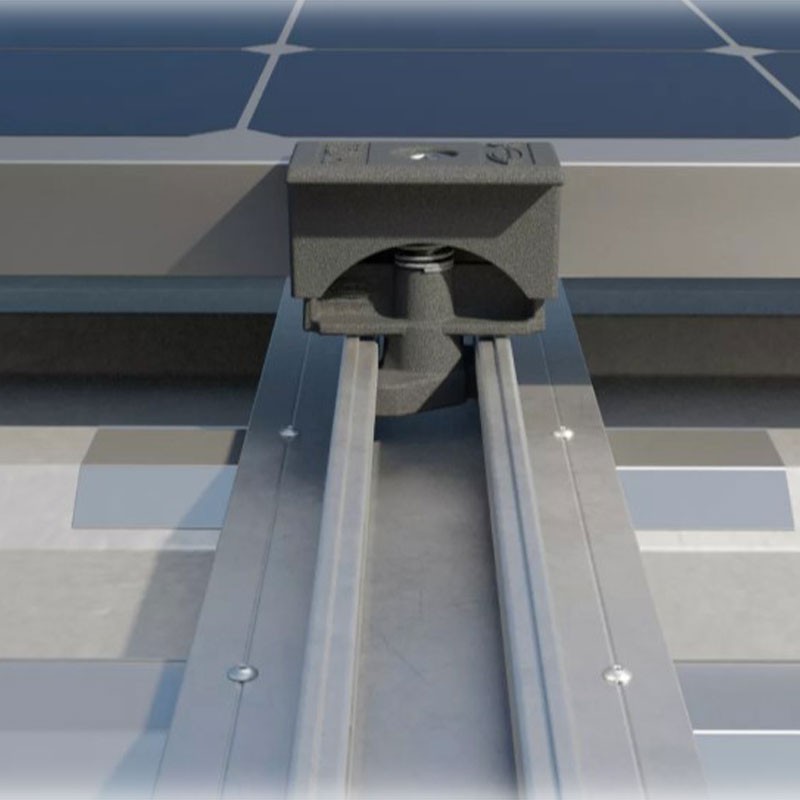

The PMC U clamp is specially designed for central installation of PV panels, where it is critical to maintain minimum module spacing for optimum aesthetic and functional performance. The recessed screw reduces the risk of shading, improving system efficiency.
Simple and smart mounting
Thanks to its 45-degree rotating mechanism, the clamp can be fixed anywhere in the upper slot of the profile. The integration of a lifting spring keeps the clamp raised during tightening, greatly simplifying panel installation.
Applications
-
Central fastening of photovoltaic panels on structures with Solar profiles.
-
Compatible with aluminum framed panels from 30 to 50 mm
-
Ideal for residential, commercial and industrial installations
Mounting Methods.
-
Insert the clamp into the profile slot
-
Rotate counterclockwise to lock it in the middle position
-
Position it between two panels and tighten with a 6 mm SW hex wrench
-
Apply a tightening torque of 10 Nm
Technical Specifications Fischer Clamp
| Hole diameter (d₀) | 5 mm |
| Minimum hole depth (h₁) | 35 mm |
| Dowel length | 25 mm |
| Minimum panel thickness | 12.5 mm |
| Minimum screw-in depth | 30 mm |
| Screw type included | 4.0 x 30 mm (countersunk head, PZ2) |
| Installation type | Through and nonthrough |
| Tool attachment | PZ2 |
