Obo Bettermann 5P screwless terminal block 450V 24A 5x0.2-2.5 mmq 2054458
OBO 2054458
4012196386871

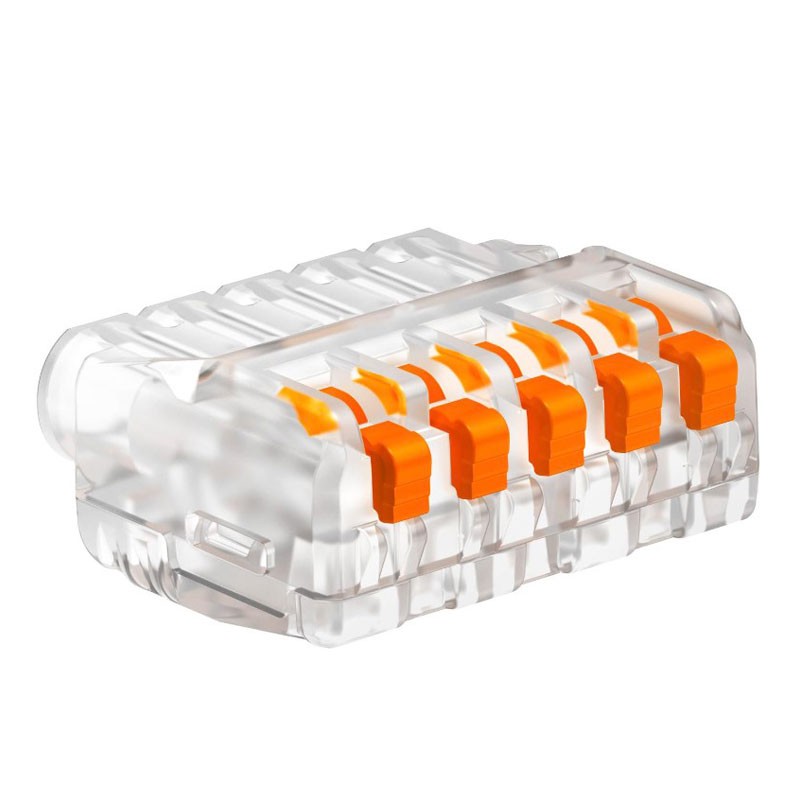

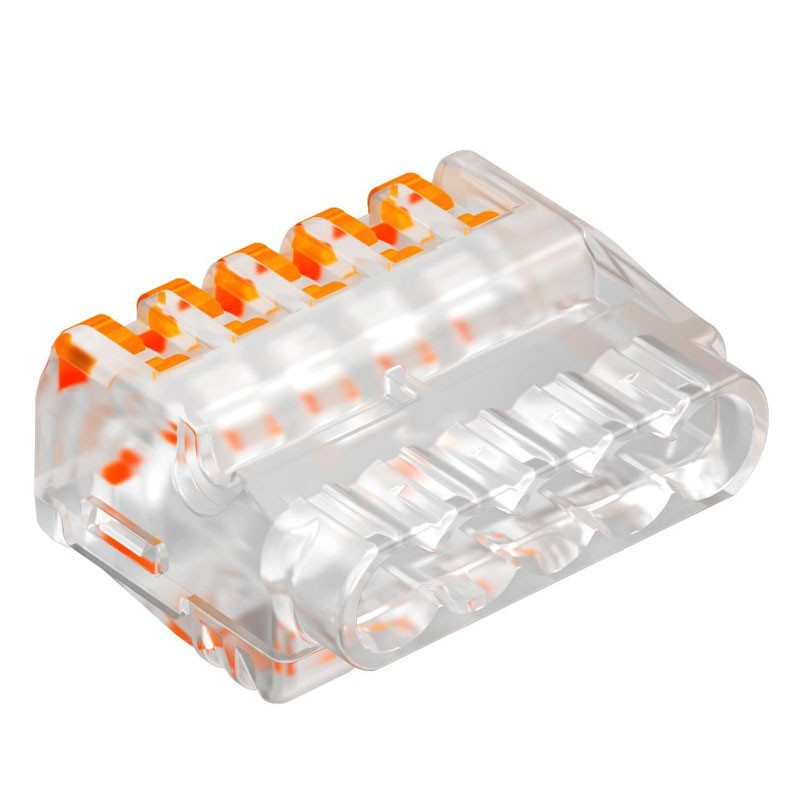

Obo Bettermann universal transparent 5-pole screwless terminal block for quick and secure connections of rigid and flexible conductors up to 2.5 sq. mm, with the following characteristics:
-
Supported cross-section: 5 x 0.2 - 2.5 mm²
-
Rated voltage: 450 V
-
Rated current: 24 A
-
Release lever: For easy removal of the conductor
-
Body: Transparent polycarbonate with top test opening
€1.86
Items Available: 134
: 65
Obo terminal quick, safe and tool-free connection
The Bettermann 5-pole screwless Obo Clamp is designed to facilitate the connection of electrical conductors in civil, industrial and automation installations. Thanks to its quick-connect system, it allows you to directly connect rigid conductors without having to operate any levers: simply insert the stripped wire to achieve a firm and secure connection.
Compatibility with flexible and rigid conductors
This clamp supports conductors from 0.2 to 2.5 sq. mm, both solid and multi-strand, with an easy opening via release lever for extraction. This makes the clamp ideal for quick and repeated operations, offering versatility during maintenance or expansion of electrical panels.
Certified reliability according to EN 60998
The clamp has been tested according to EN 60998, ensuring compliance with safety requirements for electrical connections. The self-extinguishing thermoplastic housing ensures heat resistance up to 850 °C according to DIN 695/VDE 0471.
Technical Specifications Obo Clamp
| Parameter | Value |
|---|---|
| Clamp type | Plug-in, 5-pole |
| Connection | Screwless, with release lever |
| Supported conductor cross-section | 5 x 0.2 to 2.5 sq. mm |
| Rated voltage | 450 V |
| Rated current | 24 A |
| Recommended stripping length | 9 mm (+1 mm) |
| Max. ambient temperature | +85 °C |
| Operating temperature min | -5 °C |
| Color | Transparent |
| Body Material | Polycarbonate (Thermoplast) |
| Test aperture | Ø max 2 mm |

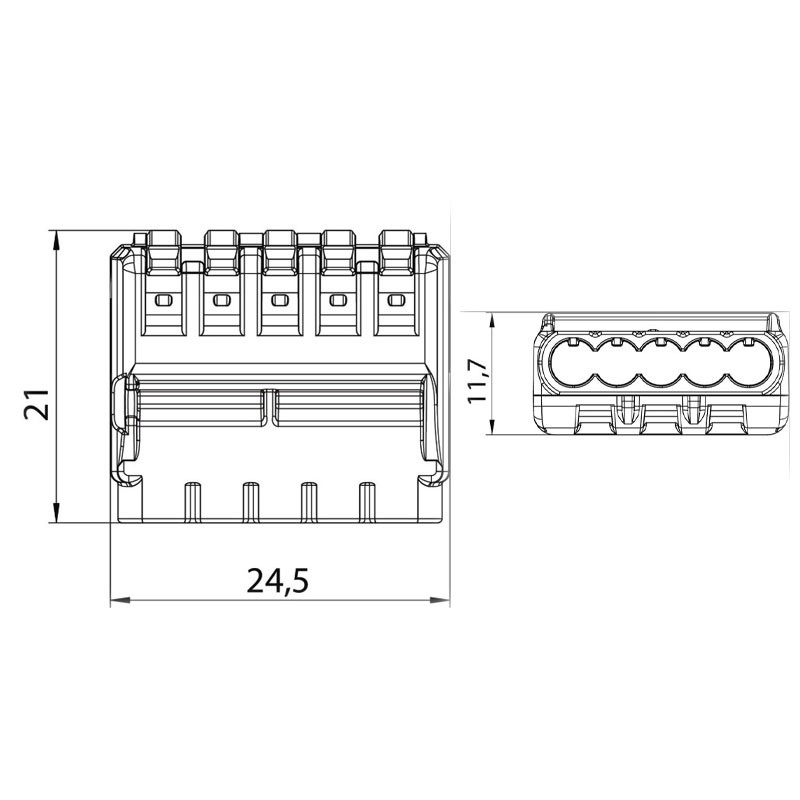

| Dimensions (W x H x D) | 24.5 mm x 11.7 mm x 21 mm |
| Compliance | EN 60998, VDE 0471/DIN 695 part 2-1 |
| Self-extinguishing | Yes, 850 °C |
There are no reviews
Data sheet
- Type: Clamps
