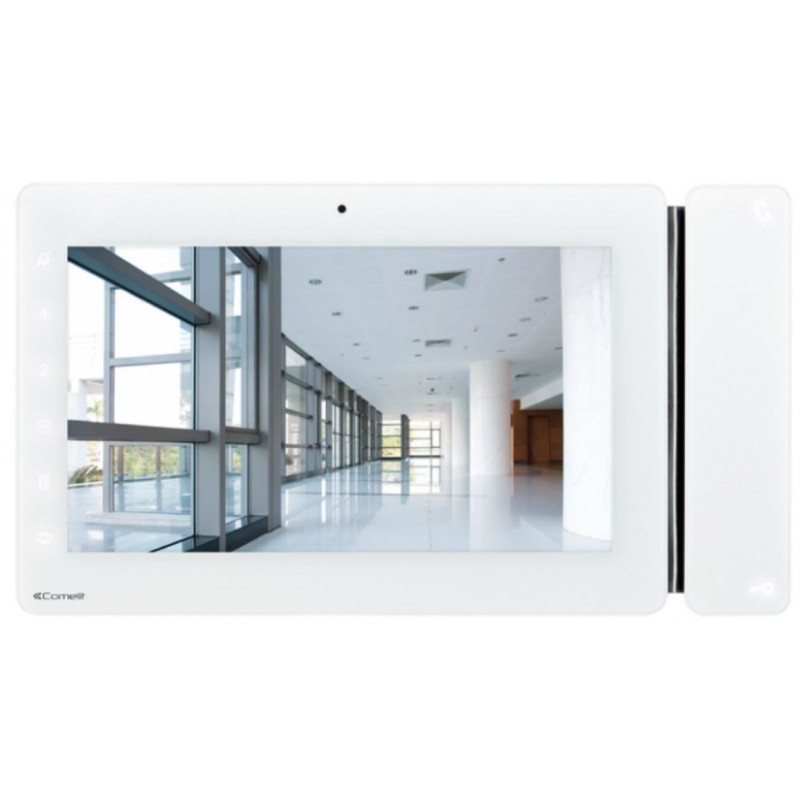

Comelit MAXI Flush-mounted or wall-mounted 2-wire video intercom 6801W
COE 6801W
8023903284560
Comelit MAXI SIMPLEBUS colour video intercom system:
- Power supply type Power supply from video door phone bus
- Power supply voltage 22÷34 VDC (Bus)
- Stand-by absorption (W) 0.05
- Maximum absorption (W) 12.4
- Display size: 7 inch colour
- Aspect ratio 16:9
- Resolution (pixels) 800x480
- Microphone 4mm (ø), Omnidirectional
- Speaker 80mm (ø), 80 Ohm, 1W
- Technologies implemented Full-Duplex
- Button type Capacitive
- Service Buttons Door Open, Answer, Silent (Privacy), Door Open
Compatible accessories, to be purchased separately: Flush Mount Box code 6817 and Wall Bracket code 6820.
€206.64
Items Available: 9
: 3
Frequently bought together
Maxi colour video intercom monitor for flush-mounting (using optional box Art. 6817) or wall-mounting (with optional bracket Art. 6820) with 7’ / 16:9 screen, full-duplex hands-free speech and touch-sensitive controls. It allows adjustment of brightness level, contrast, speech volume and ringer volume. It is possible to customise the ringtone by choosing from a variety of melodies. Equipped as standard with door opener button, speech enable/disable button with relevant LEDs, and a further 6 buttons for auto switch-on, silent mode and other programmable functions. It manages off-door call and call repetition as standard and is complete with 2 8-position dip-switches for user code and button programming. Equipped with branch terminal for post art. 1214/2C. The video door entry unit can be used on 2-wire Simplebus2 digital systems. Dimensions (W x H x D): 223x124x25 mm.
Compatible systems:
- Audio/video Simplebus 2 with power supply unit art. 4888C Yes
- Audio/video Simplebus 2 with power supply unit art. 1210/1210A Yes
- Audio/video Simplebus 2 kit with power supply unit art. 1209 Yes
Adjustments:
- Speaker volume Yes
- Microphone volume Yes
- Ringer volume Yes
- Screen brightness Yes
- Screen contrast Yes
- Screen colour Yes
- Door opener Yes
- Auto door opener on call (Doctor) Yes
- Silent Mode (Privacy) Yes
- Auto Power On Yes
- Call to switchboard Yes
- Intercom Calling Yes
- Call Forwarding Yes
- Off-hook call input Yes
- Customisable ringtone Yes
- Auto answer (hands-free) Yes
- Alarm call forwarding Yes
- Actuator control Yes
- Multiple address Yes
- Door open indication Yes
Other technical features:
- No. of programmable buttons for additional functions 4
- Terminals L L - + CFP1 CFP2 S+ S- In1 In2
- Removable terminals Yes
- Number of inputs (No.) 2
- Number of outputs (no.) 1
- Height (mm) 124 Width (mm) 223 Depth (mm) 25
- Product colour White RAL9003, grey base RAL7001
- Type of covering materials ABS, Glass
- Flush mounting Yes, with dedicated accessory
- Wall mounting Yes, with dedicated accessory
- Table Base Mounting Yes, with dedicated accessory
- Degree of protection IP30
- Operating temperature (°C) 5 ÷ 40
- Operating humidity (RH max) (%) 25 ÷ 75
- Environmental class III Certifications CE RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
