Kit Single-family Video Door Phone Comelit 2-wire Hands-free Quadra And Maxi 8461X

Comelit
Comelit
COE 8461X 8023903288612

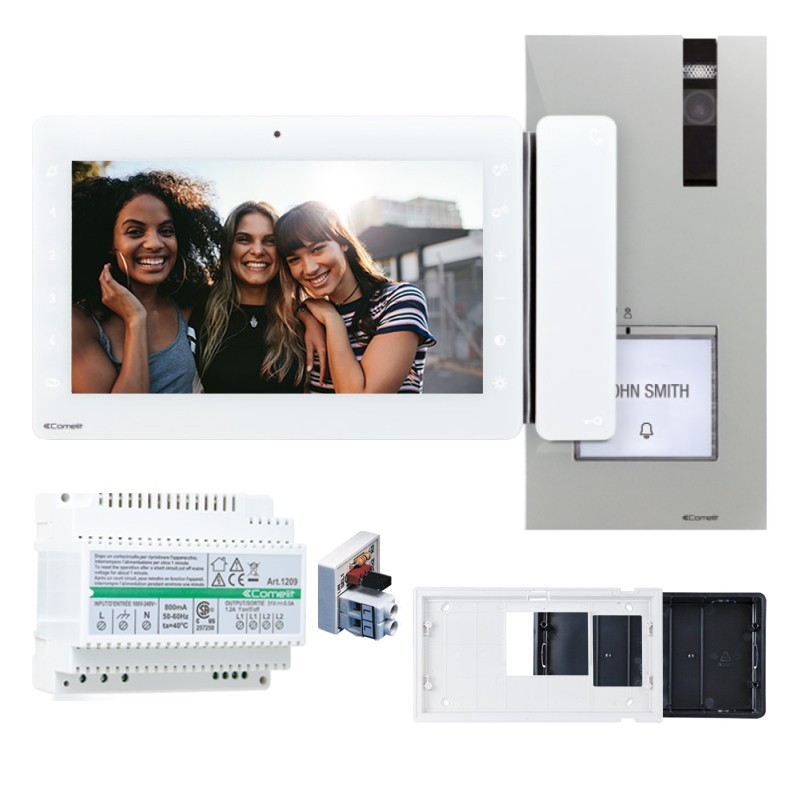

Single-house video entry kit QUADRA and MAXI, 2 wires simplebus 2 composed by:

  • 1 Quadra series wall-mounted door unit art. 4893M
  • 1 Colour hand-free monitor Maxi series art. 6801W
  • 1 Power supply unit item 1209
  • 1 Built-in box art. 6817
  • 1 Wall bracket art. 6820
  • 1 Termination clamp art. 1216
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Kit Single-family Video Door Phone Comelit 2-wire Hands-free Quadra And Maxi 8461X
€441.84
€428.58
€428.58

Lowest price in 30 days:
€441.84
Save 3%
€428.58
Tax included
Calculate shipping cost
Offer expires in
Out of stock
Further availability of the manufacturer
€428.58

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Technical specifications of the KIT components:

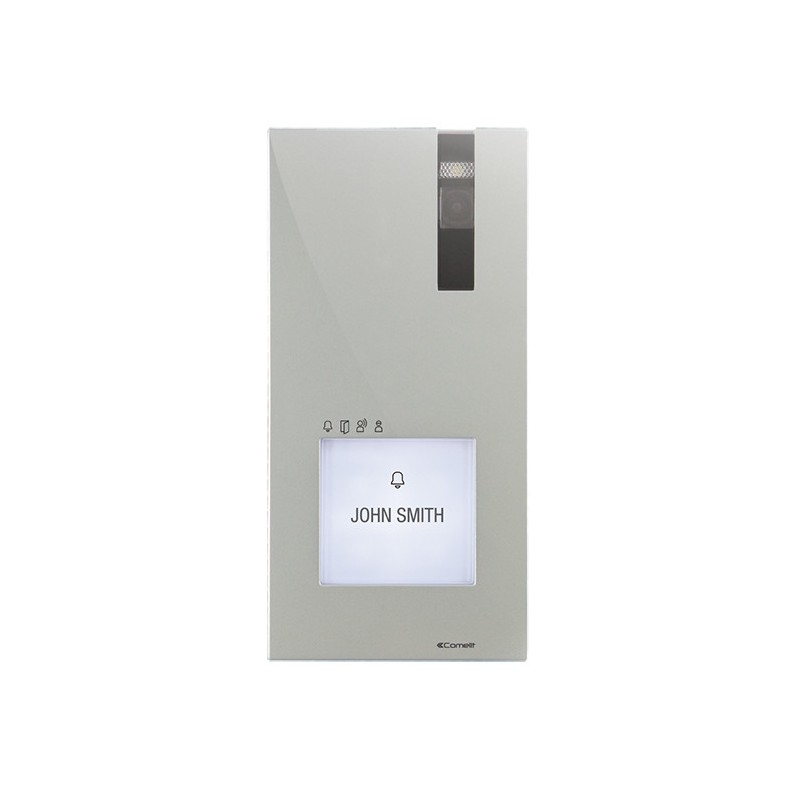

DOOR STATION KIT QUADRA VIDEO. S2 4893M

  • Quadra series wall-mounted video door entry unit
  • Die-cast aluminium front panel, wide-angle colour camera and single LED for night lighting
  • Mechanical keys with possibility of setting from 1 to 4 call keys via DIP-switch
  • LED signalling for call sent, door opener activated, speech activated and system busy
  • Loudspeaker volume and speech balance adjustment
  • Power supply from bus line
  • Dimensions: 95x195x28 mm.

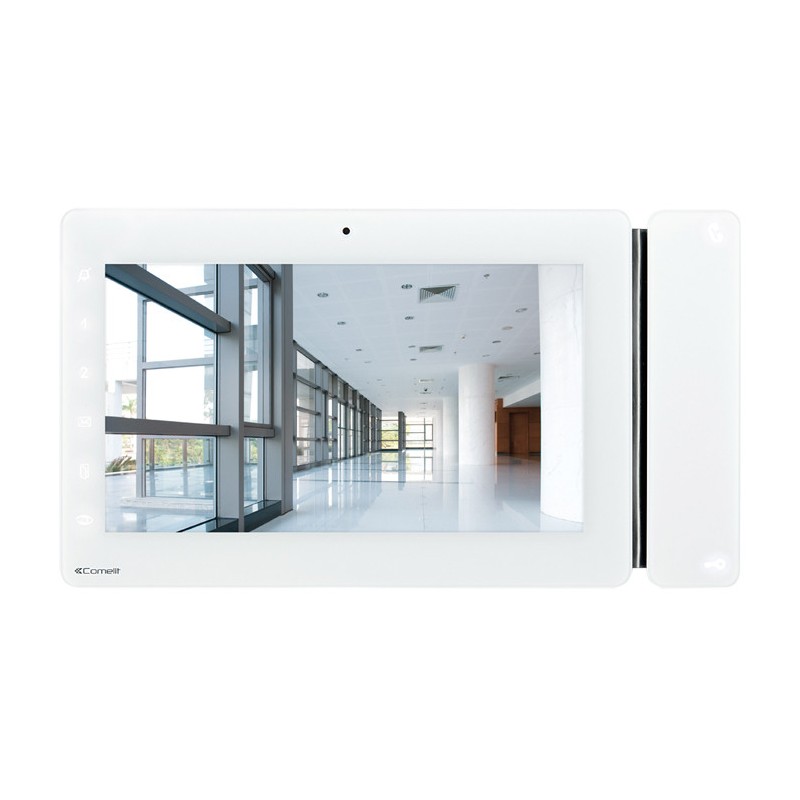

2-WIRE MAXI VIDEOINTERCOM 6801W

  • Flush-mounting (using optional box item 6817) or wall-mounting (with optional bracket item 6820) Maxi colour monitor with 7" / 16:9 screen, full-duplex hands-free phonic and touch-sensitive controls.
  • Brightness, contrast, audio volume and ringer volume can be adjusted.
  • It is possible to customize the ringtone by choosing between different melodies
  • Equipped as standard with door opener button, phonic enable/disable button with relevant signalling LEDs and 6 other buttons for auto switch-on, privacy service and other programmable functions
  • Standard management of out-of-door call and call repetition and complete with 2 8-position dip-switches for programming the user code and button programming.
  • Equipped with upright shunt terminal Art. 1214/2C
  • The monitor can be used on Simplebus2 2-wire digital systems.
  • Dimensions (L x H x D): 223x124x25 mm.

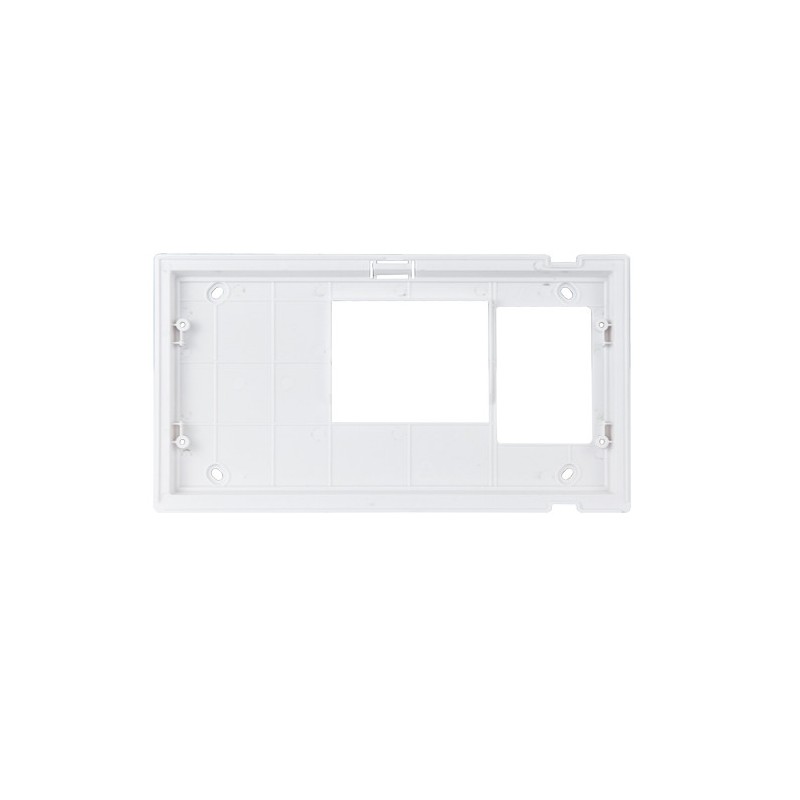

WALL BRACKET FOR MAXI S2 AND VIP 6820 MONITORS

  • Wall bracket for Maxi monitors in UV resistant ABS.
  • Colour white RAL9003
  • Dimensions (W x H x D): 216.4x117.5x14 mm.

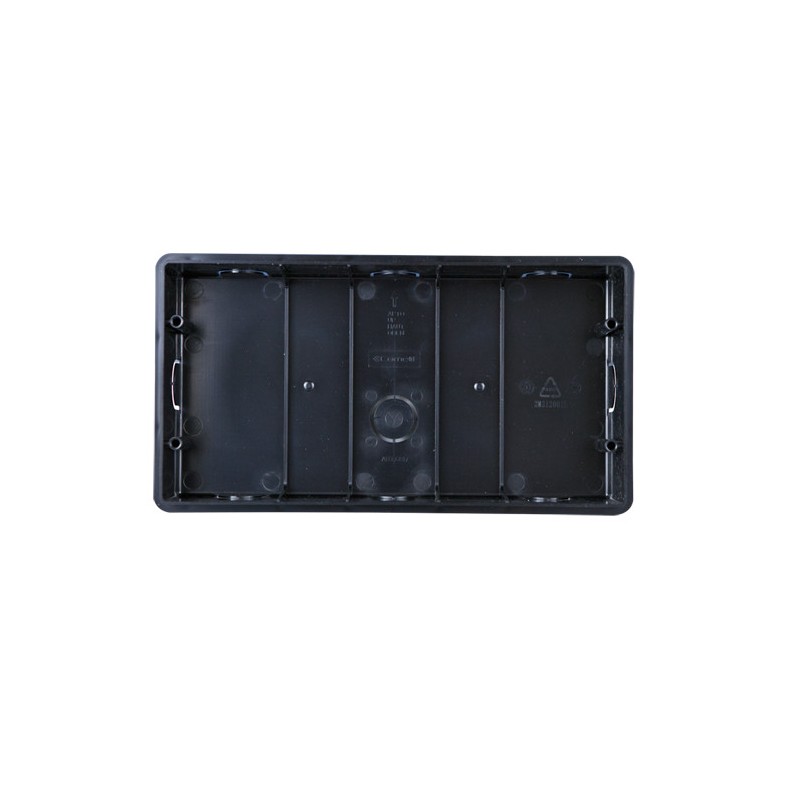

RECESSED BOX FOR MAXI MONITOR 6817

  • Recessed box for Maxi monitor in black ABS plastic
  • Dimensions (W x H x D): 212x115x50mm.

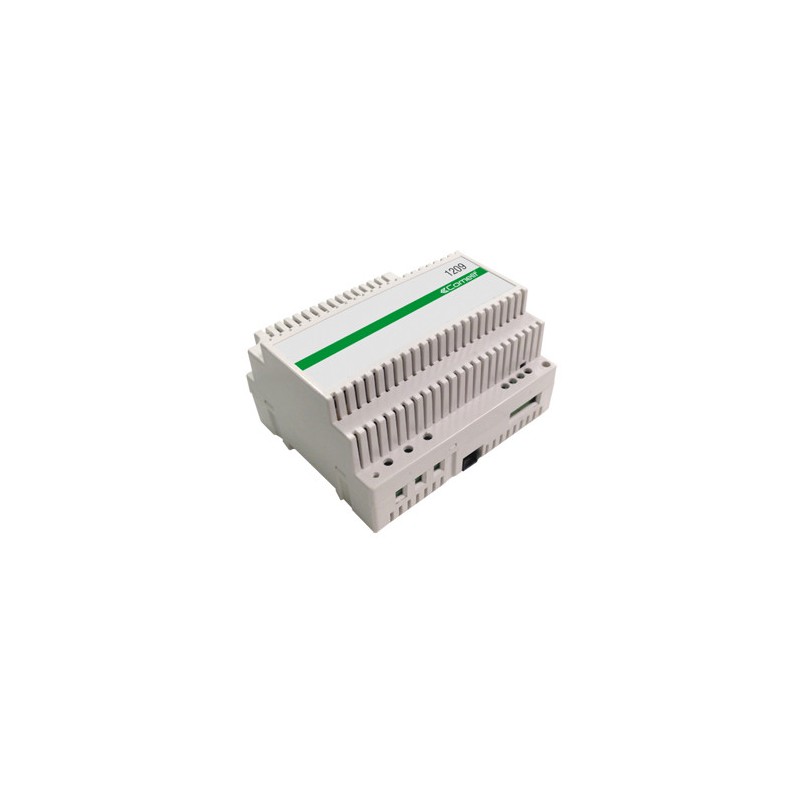

VIDEO KIT POWER SUPPLY. S2 1209

  • 33 VDC power supply for 2-wire kit for direct connection to door unit and apartment station.
  • Equipped with overload and short-circuit protection
  • Input voltage 110-240 VAC
  • Dimensions: 106 x 62 x 89 mm (6 DIN modules).

SIMPLEBUS2 TERMINATION TERMINAL 1216

  • Line termination terminal
  • Supplied with the mixer (4 pcs)
  • To be mounted at the end of the riser, according to the indications in the technical documentation, to optimise signal distribution

Kit videocitofono di buona fattura ed esteticamente gradevole

Read all reviews

Data sheet

KIT:
Video Intercom Kits
Model:
Intercom function
Single-family house
System:
2-Wire
