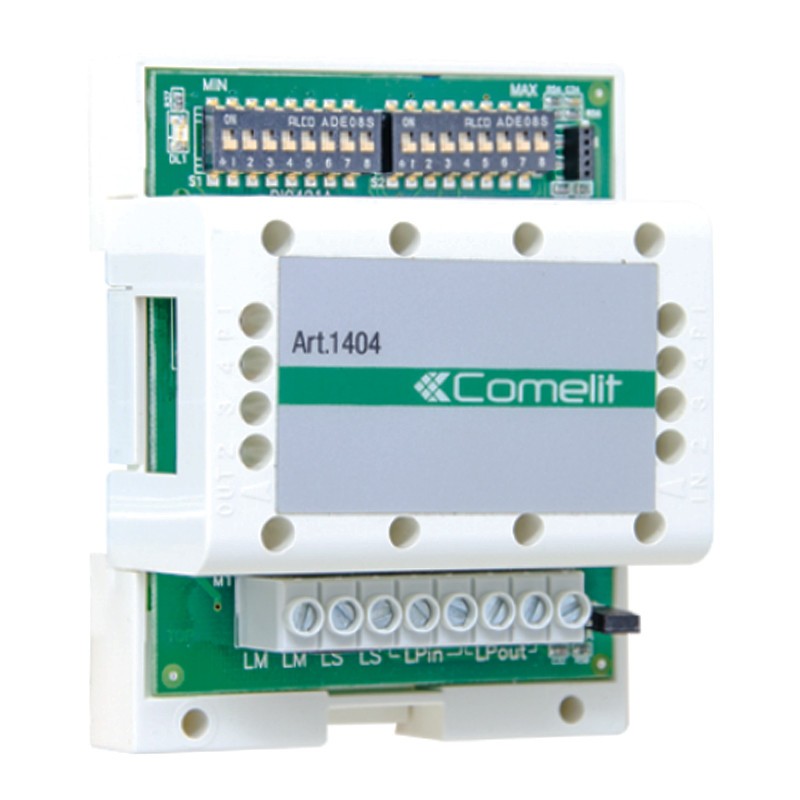

Comelit audio/video exchange module for Simplebus 2-wire systems 4M 1404
COE 1404
8023903283648
Comelit audio/video exchange module for Simplebus 2-wire digital systems, compatible with audio and audio/video systems, DIN rail mounting, bus line power supply, with the following features:
-
Power supply from bus line: 12VAC / 22VDC
-
Compatible with: Simplebus 2 and Building Kit systems
-
Supports: Digital audio and video signals
-
Mounting: DIN rail, occupies 4 modules
-
Material: Plastic
-
Color: White
-
Dimensions: 83x66x37 mm
€142.62
Items Available: 58
Audio/video exchange module for Simplebus multi-input systems
The Comelit module is designed for managing digital video door phone systems with multiple inputs. It functions as an exchange device between audio/video locations within the Simplebus Top 2-wire system, ensuring clear, stable and interference-free communication.
Seamless integration with Simplebus systems
The module is fully compatible with the Simplebus 2 and Building Kit ecosystem for both audio and audio/video systems, making it ideal for residential, condominium or tertiary installations that require multiple video inputs and orderly signal management.
DIN mounting and direct bus power supply
With its 4 DIN module format, the Comelit is easily installed inside standard electrical panels. Direct power supply from the bus line further simplifies installation, eliminating the need for external power supplies.
Quality construction and safety
Made of durable plastic, the module is EMC-compliant and designed to operate in environments with up to 95% humidity, ensuring maximum reliability even under demanding conditions.
Technical Specifications Module for Simplebus 2 System
General Features
| Parameter | Value |
|---|---|
| Input connector | Terminal block |
| Certifications | EMC 2014/30/UE (EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011) |
Main Characteristics
| Parameter | Value |
|---|---|
| Height | 83 mm |
| Width | 66 mm |
| Depth | 37 mm |
| Product weight | 100 g |
| Operating temperature range | -10 ÷ 40 °C |
| Operating humidity | 25 TO 95 % RH |
| DIN rail mounting | Yes |
| DIN modules | 4 |
| Supply voltage | 12 VAC / 22 VDC |
General Data
| Parameter | Value |
|---|---|
| Type coating materials | Plastic |
| Product color | White |
Compatibility
| Parameter | Value |
|---|---|
| Simplebus 2 audio/video system | Yes |
| Simplebus 2 audio system | Yes |
Data sheet
- Type: Accessories
- Components: Exchange modules
