Novalux Angle connector for Led Strip IP20 10 pieces 100968.99
NOX 100968.99
8026833141811
90-degree angle connector to join 2 Novalux Led Strip with the following features:
- Use: Indoor
- Degree of protection: IP20

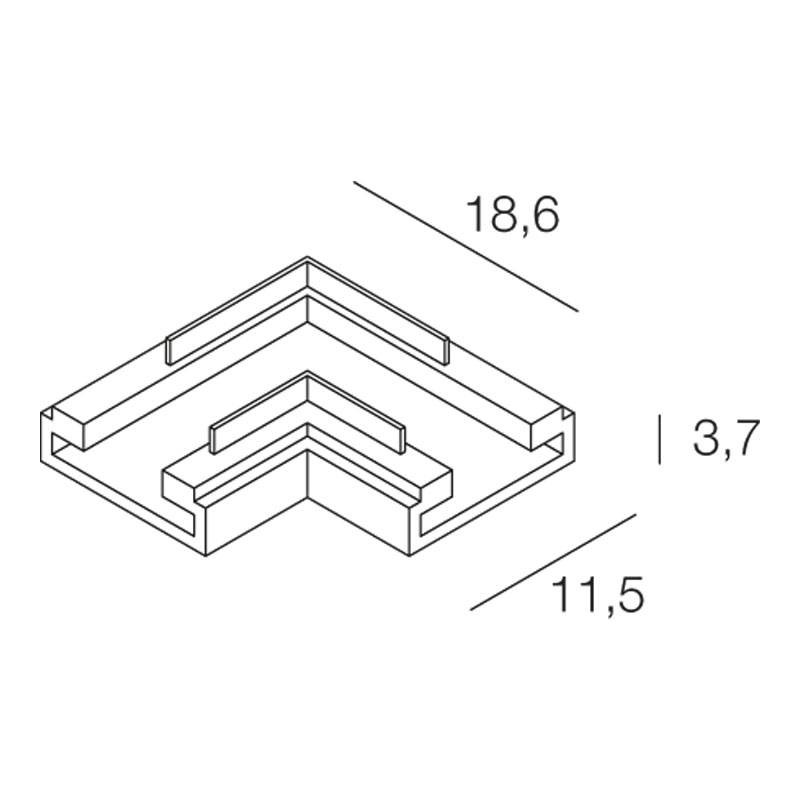

- Dimensions: 18.6x18.6x3.6 (W-A-H)
Pack of 10 pieces.
€16.20
Items Available: 41
: 2

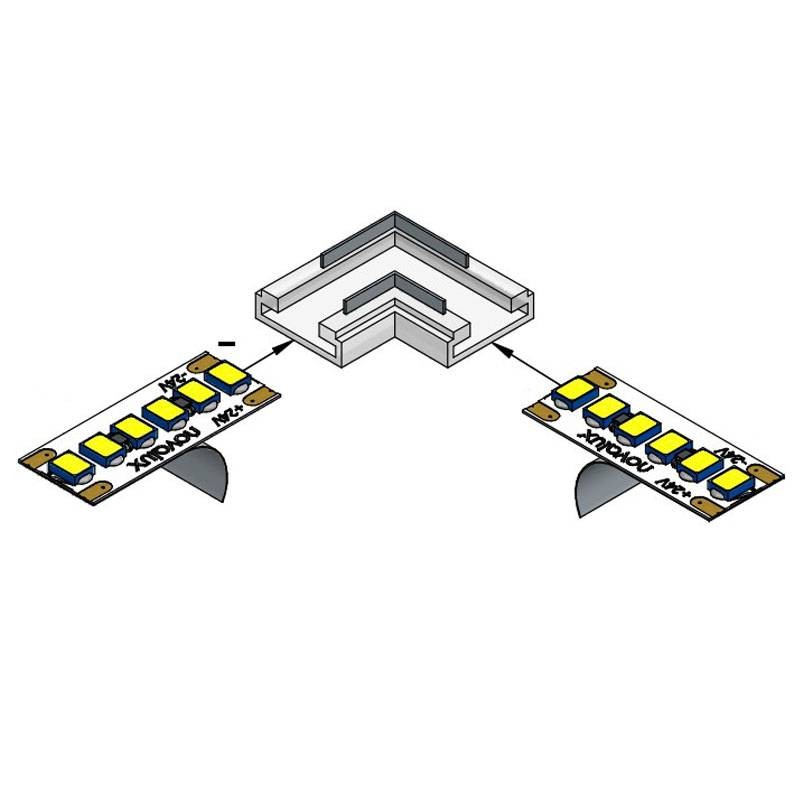

Mounting:
- Remove the protective film of the double-sided adhesive tape to both led strips for a stretch
- Insert the led strips into the connector: first the 1 up to the stop and then the 2 up to overlap (be careful not to create short circuits)
- Lower the pins with the help of pliers and tighten on the led strips (pins with insulation-punch system)
- Once the connector pins are lowered they will clamp onto the LED strip and you will not be able to pull it out
- Apply to the compatible aluminum profile
- Calculate the lengths of the LED strip cuts well with that of the profile cut, so as not to have excess or missing LED strip on the corner
There are no reviews
Data sheet
- Type: Accessories
- Degree of protection: IP20
