Dossena Toroidal Transducer Type B 35 mm 80A for DER4B Relay IP20 9TB35

Dossena
Dossena
DOS 9TB35 9000015355646

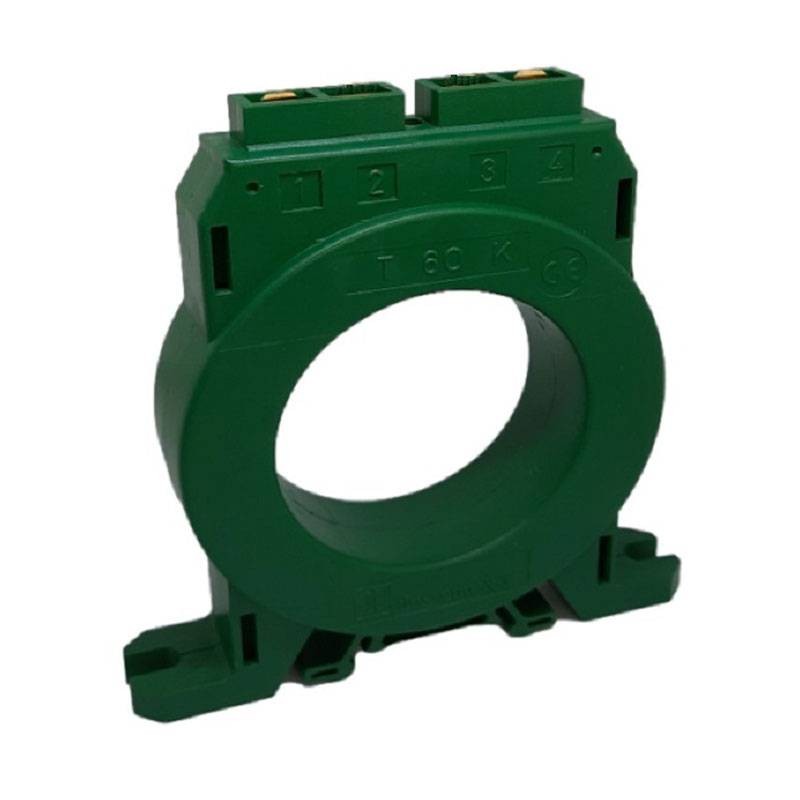

Dossena closed toroidal transducer is designed for exclusive use with DER4B series type B differential relays, ensuring accurate detection of differential/homopolar leakage currents to ground, it is the ideal solution for TT and TN electrical systems that require high reliability in differential protection, with the following characteristics:

  • Inner diameter: 35 mm

  • Rated current: 80 A

  • Maximum allowable current: 480 A

  • Use: Only with Dossena DER4B differential relay.

  • Transformation ratio: 500 (terminals 1-4)

  • Short-circuit current: 80 kA for 0.5 seconds

  • Degree of protection: IP20

  • Enclosure material: Self-extinguishing plastic CL V0

Do you have questions about this product or did you not find what you were looking for? Ask us!
Dossena Toroidal Transducer Type B 35 mm 80A for DER4B Relay IP20 9TB35
€121.65
€121.65

€121.65
Tax included
Calculate shipping cost
Items Available: 5
Further availability of the manufacturer
€121.65

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

High-precision toroid for detecting ground leakage

TB35 takes advantage of a special nano-crystalline magnetic alloy core that ensures high sensitivity to differential currents to ground. This makes it perfect for installations where immediate and reliable identification of electrical faults is required, minimizing the risk of faults and outages.

Compatibility and easy installation

Compatible exclusively with Dossena DER4B differential relays, the transducer must be installed upstream of the loads or lines to be protected. All active conductors (phase and neutral) must pass through the central hole of the toroid, which, thanks to its 35 mm internal diameter, allows easy passage even in complex installations.

Installation is facilitated by panel bottom or DIN rail mounting, with connections via standard 6.3 mm female fastons. Compact design and V0 material enclosure offer high strength and durability.

Maximum safety and certified quality

Each Dossena transducer is individually tested with an advanced computerized system that verifies its integrity and technical compliance. The self-extinguishing plastic housing, combined with short-circuit current tightness up to 80kA, ensures maximum protection even under the most critical conditions.

Typical Applications.

The Dossena transducer is suitable for use in industrial, residential and tertiary installations, particularly in TT and TN distribution systems, where protection from ground fault currents is critical. It can be used exclusively in conjunction with DER4B relays, ensuring maximum effectiveness in the detection and management of differential faults.

Installation tips

  • Use twisted and shielded cables between TB35 and DER4B

  • Connect the shield to ground at only one point

  • Avoid sharp cable bends near the transducer

  • The inner diameter of the toroid should be about twice as large as the set of through cables

  • Resistance of each connection less than 0.5

  • Minimize the distance between transducer and relay

Technical Specifications Dossena Toroidal Transducer

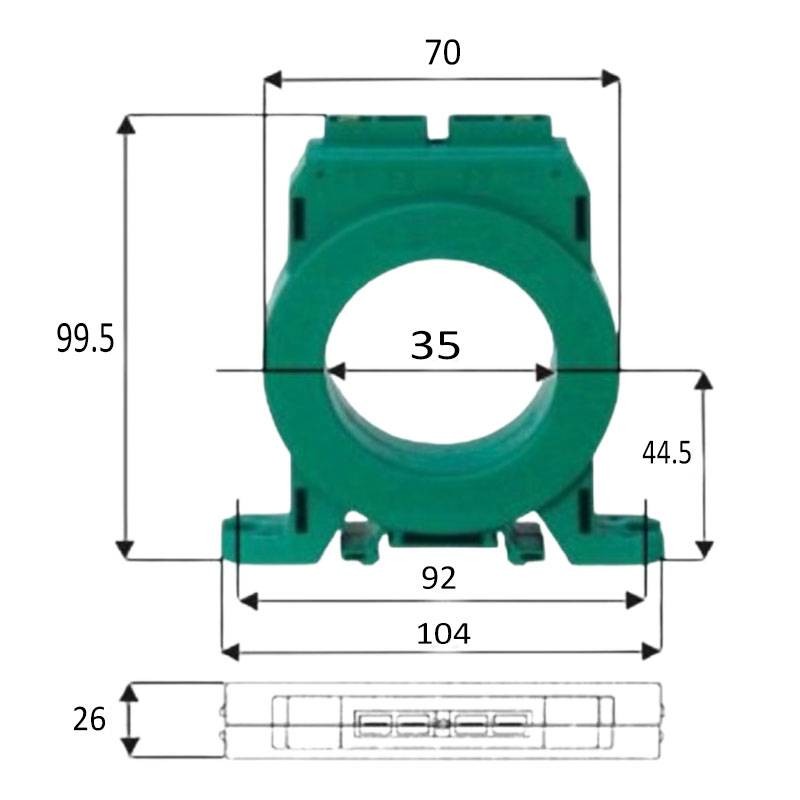

Inner diameter 35 mm
Rated current 80 A
Maximum allowable current 480 A
Short-circuit current 80 kA (0.5 s)
Transformation ratio 500:1
Mounting DIN rail or panelboard bottom
Material Self-extinguishing plastic V0
Degree of protection IP20
Operating temperature -10 ÷ +55 °C
Reference standard IEC 61869-2
Compatible networks TT, TN
Compatibility Only with Dossena DER4B

There are no reviews

Data sheet

Diameter:
35 mm
Type:
Toroidal Current Transducers
Degree of protection:
IP20
Amps:
80A
