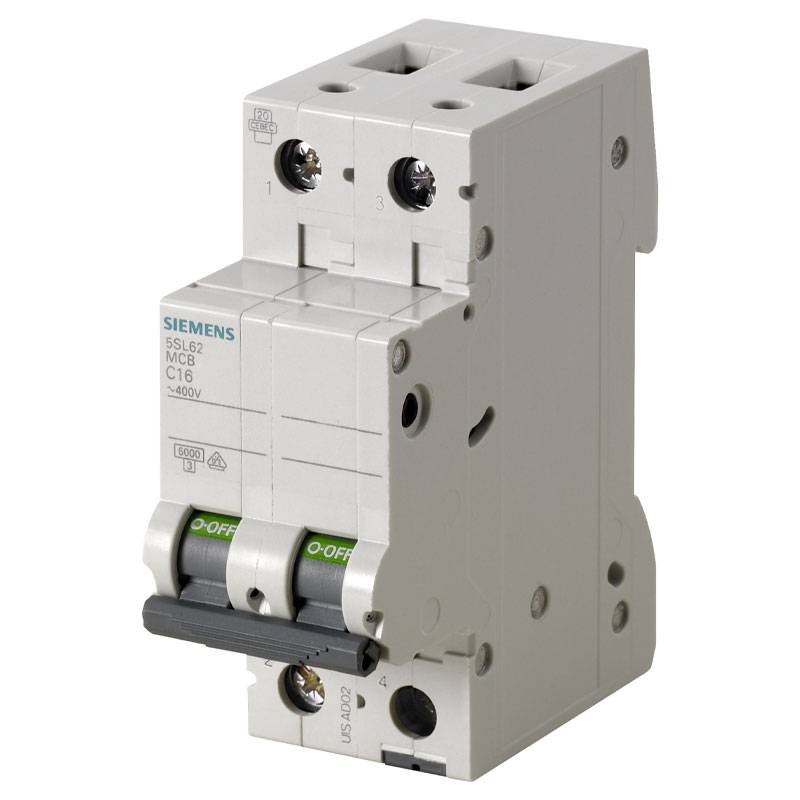

Siemens Circuit Breaker 2P 16A 6KA 2M B 5SL62166BB

Siemens
Siemens
SIE 5SL62166BB 4001869388588

Siemens 5SL6 circuit breaker with the following characteristics:



  • Number of poles: 2
  • Rated current: 16 amps
  • Rated short-circuit capacity: 6 kA
  • Tripping curve: Curve B (suitable for protecting circuits with normal loads)
  • Number of modules: 2



Ideal for overload and short-circuit protection in residential and commercial installations. Easy to mount on modular electrical panels.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens Circuit Breaker 2P 16A 6KA 2M B 5SL62166BB
€29.90
€29.90

€29.90
Tax included
Calculate shipping cost
Items Available: 2
Further availability of the manufacturer
€29.90

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

The circuit breaker is an ideal protective device for residential and commercial electrical systems. Designed to automatically interrupt current flow in the event of an overload or short circuit.



This two-pole circuit breaker offers a breaking capacity of up to 6KA and a current rating of 16A. The B trip curve makes it suitable for protecting circuits with normal loads. Easy to install, it occupies two modules and provides reliable and safe protection.



The B tripping curve of a circuit breaker is designed to trip quickly in the event of an overload or short circuit, protecting circuits with normal loads, such as those found in residential or commercial installations. Here are the main features:

  • Magnetic trip: Triggers when the current exceeds 3 to 5 times the rated current
  • Common use: Circuits with resistive loads, such as lights or small appliances
  • Fast tripping time: Ideal for protection of electronic devices sensitive to overcurrents



Features:

  • Number of poles: 2
  • Class of trip characteristic B
  • Mechanical service life (switching cycles) typ. 10 000
  • Overvoltage category III
  • Pollution degree 2
  • Insulation voltage at maximum DC rating: 440V
  • Protection class: IP20, with conductors connected

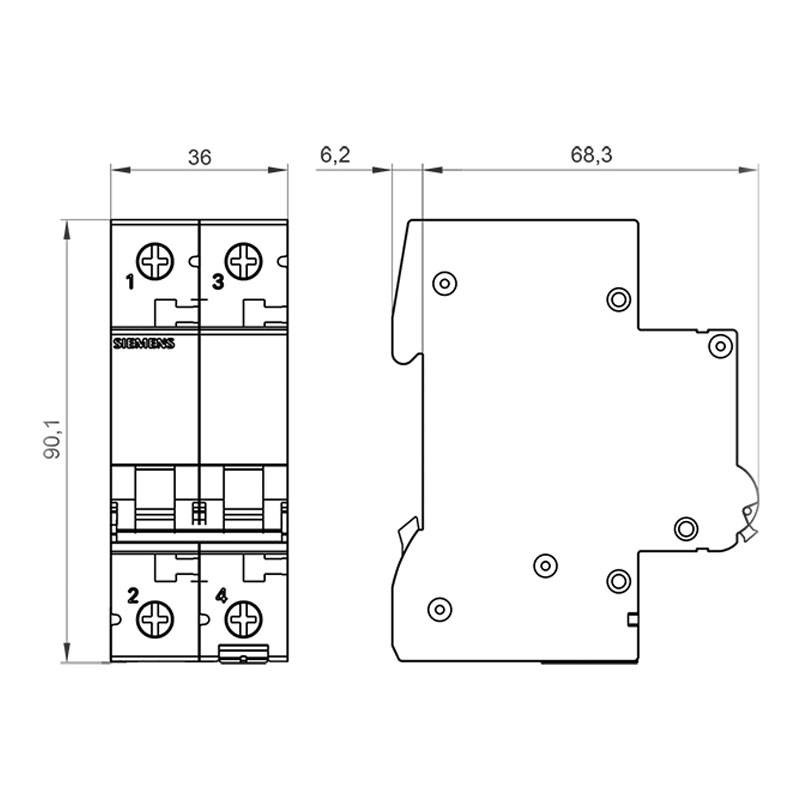

  • Height: 90mm
  • Width: 36 mm
  • Depth 76 mm
  • Number of width modular units 2
  • Ambient temperature during operation: -25/+45 degrees
  • Ambient temperature during storage: -40/+75 degrees

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
2
Poles:
2P
Curve:
B
Breaking capacity:
6KA
Amps:
16A
Circuit Protections:
Circuit breakers
Contact details of the manufacturer and the responsible person
