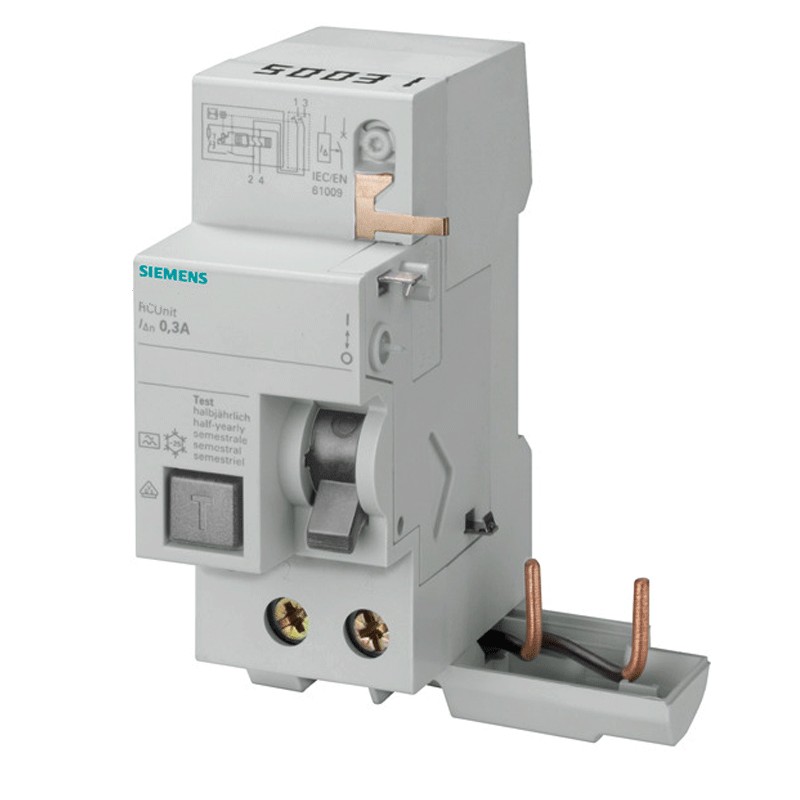

Siemens differential lock 2P 40A 300mA type AS 2 modules for 5SL6-SL4 5SM26238
Selective differential lock (circuit breaker), Siemens, with the following features:
- 2 modules
- DIN connection (universal for any switchboard on the market)
- 2 poles
- 40 amperes
- Differential current Idn 300mA
- Voltage 230/400 Vac
- AS differential type
Compatible with Siemens circuit breakers 5SL6-5SL4 series
Siemens differential lock 2P 40A 300mA type AS 2 modules for 5SL6-SL4 5SM26238
Tax included
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The differential block type A-S: selective or delayed residual current devices: they operate with intentional delay (like type A).
Features:
- Siemens series
- Voltage 230/400Vac
- Current In 40A
- Differential current Idn 300mA
- AS differential type
- Frequency of use 50 Hz
- 2 modules
- 2 poles
- Degree of protection IP20, for installation in distribution board, with connected conductors
- Height 90 mm
- Width 70 mm
- Depth 70 mm
- Recessed depth 70 mm
- Type of mounting DIN rail (REG)
- Any mounting position
- Net weight 210 gr
Data sheet
- Voltage:
- 230/400VAC
- Modules:
- 2
- Poles:
- 2P
- RCD Type:
- AS
- Differential current :
- 0.3A
- Amps:
- 40A
- Circuit Protections:
- Earth Leakage add-on Blocks
