Bticino stand terminal included CMTE2200
BTI CMTE2200
8005543442340

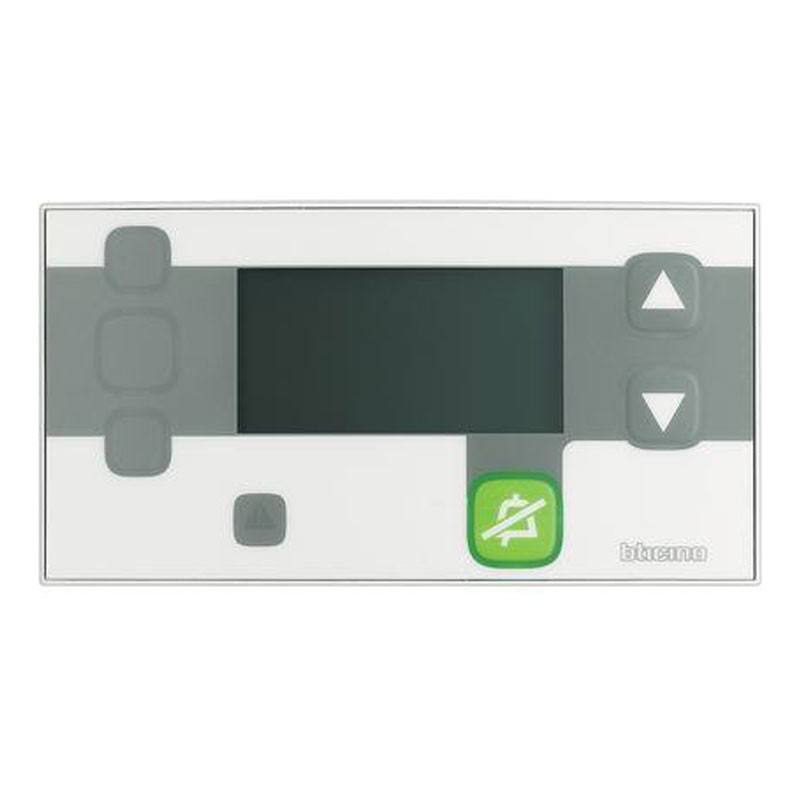

Bticino main control terminal, with the following features:
- Power supply 1-2. Nominal 27 Vdc min 18 Vdc
- Standby auxiliary absorption: 19 mA
- Max auxiliary absorption: 66 mA
- Max auxiliary absorption in emergency: 29 mA
- Max auxiliary absorption standby with phonic module: 27 mA
- Maximum auxiliary power consumption with sound module: 108 mA
- Standby auxiliary consumption in emergency: 19 mA
- Max auxiliary absorption in emergency with phonic module: 38mA
- BUS power supply: 27 Vdc BUS absorption: 3 mA
- BUS absorption with phonic module in standby: 8 mA
- BUS absorption with sound module in connection: 16 mA
- Integrated acoustic signal: Min 40 dBA - Max 60 dBA at 2m
- Operating temperature: 5 - 40 °C
- Degree of protection: IP42
€607.70
Items Available: 3
: 2
To be installed as the main garrison terminal. One must be installed in each department. Includes installation support. Device made of antibacterial material.
Allows the monitoring and control of rooms that are part of the same department.
In installations where the audio function is foreseen, the audio module (CMTE3000) must also be installed.
Installation is recommended in the main room.
The manning terminal has a graphic LCD display that allows to monitor all the events and states of the rooms in the department.
The display, with an audible signal and adjustable backlight, shows the most recent and highest priority events.
It has 2 keys for scrolling through all events and a key for silencing simple calls.
Three colored backlit icons give an immediate perception of the type of event in progress: simple call, bathroom call, alarm call and emergency call, combined with the room of origin. BT00554-a-EN 9 8 2 TR1 TR2 P 10 A N1 N2 M1 M2 3.
A specific alert icon signals any malfunction of the system and connected devices.
There are no reviews
Data sheet
- Type: Hospital modules
