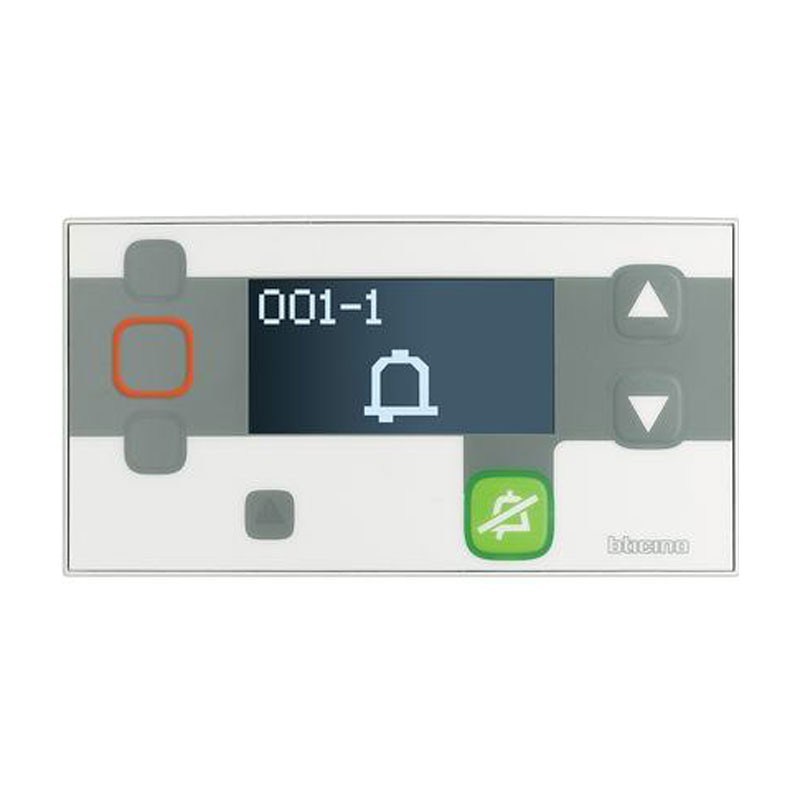

Bticino secondary control terminal for hospital installations CMTE2300
BTI CMTE2300
8005543444061
Bticino secondary garrison terminal for hospital installations.
Can be installed in addition to the main garrison terminal, in a nursing room, in a second garrison room, in a doctor's office.
- Includes installation support
- Device made of antibacterial material
€557.15
Items Available: 1
The secondary control terminal allows you to repeat the information from the main control terminal. Installation is recommended in a second room of the department, or in a common room (break room, canteen...). The control terminal has a graphical display that allows you to monitor all the events and states of the rooms in the department. The display, with an acoustic signal and adjustable backlighting, shows the most recent events with the highest priority. It has 2 buttons to be able to scroll through all events and a button to be able to silence simple calls.
Three colored backlit icons give an immediate perception of the type of event in progress: simple call, bathroom call, alarm call and emergency call, combined with the room of origin. A specific alert icon signals any malfunctioning of the system and connected devices.
Features:
- Reference Standard VDE0834-1-2 (DIN 41050)
- BUS/SCS voltage
- Degree of protection IP42
- Dimensions: Height 80mm - Width 150mm - Depth 27.8mm
If combined with the optional audio module CMTE3000 it allows to
- communicate with the rooms from which the call originates
- communicate with calls and with a nurse present
- make a general communication to all rooms
Other information:
- Complete with installation support for 4-module flush-mount boxes
- Surface installation with box CMAI1020 or on table bases CMAI1110 and CMAI1120
- Device in antibacterial material
- Up to four secondary control modules can be installed within a department
Data sheet
- Type: Hospital modules
