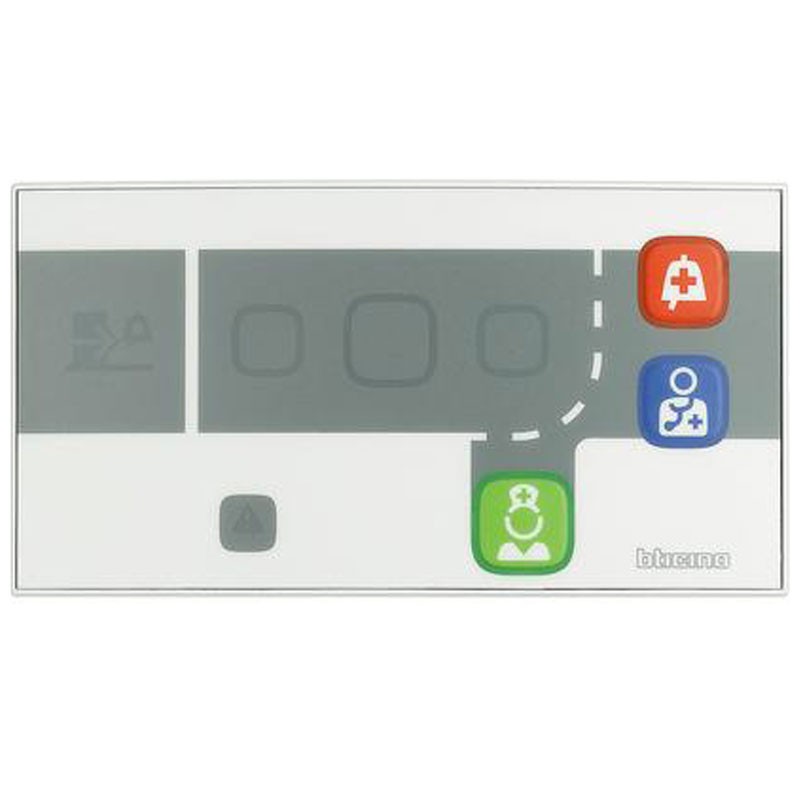

Bticino room terminal with 3 IP42 illuminable buttons CMTE1100
BTI CMTE1100
8005543442326
Bticino room terminal, multifunction device for nurse call systems, with 3 backlit buttons and audible-visual signaling, with the following features:
-
Three backlit buttons: Presence, Help, Medical Emergency
-
Indicator lights: For statuses and events in the room
-
Built-in acoustic signaling: 40-60 dBA at 2 m
-
Material: Antibacterial, ideal for healthcare environments
-
Compatible with: Escape systems and shared bathrooms
-
Installation: Wall-mounted with bracket included
-
Degree of protection: IP42, suitable for indoor hospital environments
€396.12
Items Available: 18
: 17
Frequently bought together
BTicino terminal comprehensive call management in healthcare environments
The BTicino room terminal is a device designed for installation in patient rooms, hospital wards and care facilities, offering effective management of calls to and from health care personnel. Equipped with three backlit buttons, it enables operators to quickly activate presence, request help or medical intervention, ensuring quick and visible interaction even in low-light conditions.
Visual and audible indicators for local and remote calls
The terminal has dedicated light indicators to display room status and built-in audible alerts to notify calls from other rooms. These features enable continuous and immediate monitoring, improving the efficiency of patient care and reducing intervention time.
Simplified installation and full compatibility
It comes complete with wall mounting bracket and is compatible with BTicino's BUS/SCS infrastructure. It can be installed at room entrances, in communal bathrooms, or integrated into the antifuge system, offering plant flexibility ideal for different healthcare configurations.
Antibacterial material construction: hygiene guaranteed
Designed for medicalized environments, the terminal is made of antibacterial material, reducing the risk of contamination and ensuring the hygienic safety of users, especially in facilities with high staff and patient turnover.
Recommended Applications.
-
Hospitals and private clinics
-
RSAs (assisted living facilities)
-
Nursing homes
-
Inpatient wards and multi-patient rooms
-
Assisted bathrooms and common areas
-
Nurse call and escape control systems
Technical Characteristics Bticino Room Terminal
| Parameter | Value |
|---|---|
| Type | Room terminal with buttons |
| Reference Standards | VDE0834-1-2 (DIN 41050) |
| BUS/SCS voltage | 27 Vdc (min 18 Vdc) |
| Power consumption | BUS: 3 mA Auxiliary standby: 38.5 mA Auxiliary max (modular): 166 mA Auxiliary max (compact): 198 mA Standby emergency: 44.5 mA Max emergency: 68 mA |
| Built-in acoustic signaling | 40-60 dBA at 2 meters |
| Indicator lights | Status and event signaling in the room |
| Degree of protection | IP42 |
| Operating temperature | +5/+40 degrees |

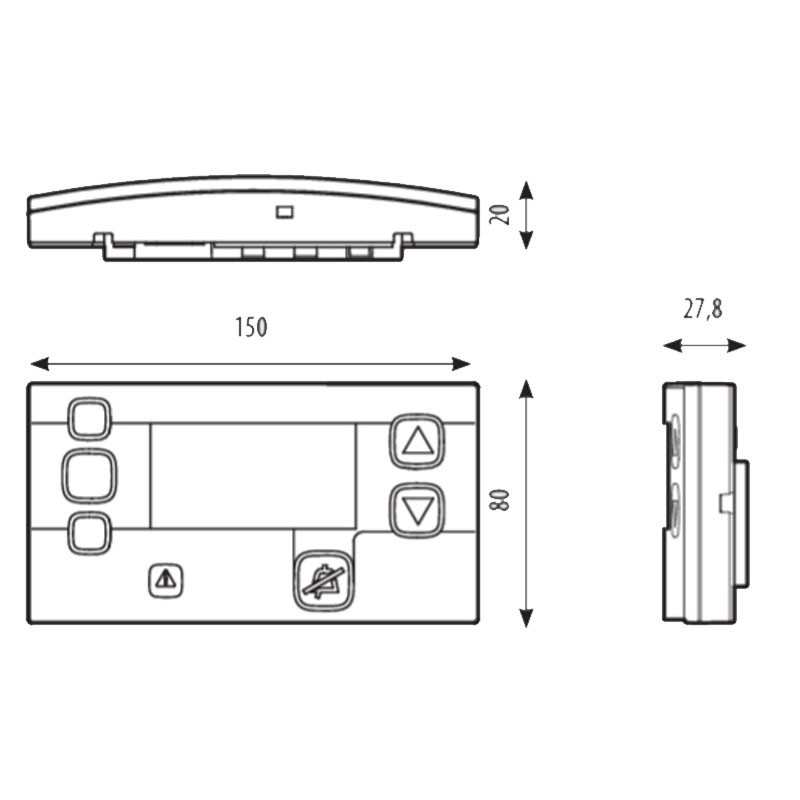

| Dimensions | 80 x 150 x 27.8 mm |
| Installation | Wall-mounted (bracket included) |
| Material | Antibacterial, suitable for sanitary environments |
| Buttons present | Nurse presence, Call for help, Medical alarm (backlit) |
| Compatibility | Anti-escape systems and shared bathrooms |
There are no reviews
Data sheet
- Type: Hospital modules
