BPT Came AGT V color videointercom with handset 5-inch display 840CF-0020
CMC 840CF-0020
8050456082589
BPT Came AGT V color videointercom with handset and 5-inch display, soft-touch buttons, bright images, advanced functions for home security and comfort, with the following features:
-
Display: 5-inch color LCD with OSD adjustment
-
Power supply: 15-20V DC from BUS
-
Keys: Soft-touch with built-in LEDs and matte finish
-
Aux button: Programmable for auxiliary functions or doorman call
-
Compatible with systems: X1 and XIP
-
Functions: Door opener, Latch, doorman call, auto-on video
-
Degree of protection: IP30
-
Installation: Wall-mounted (box 503 or Ø60)
-

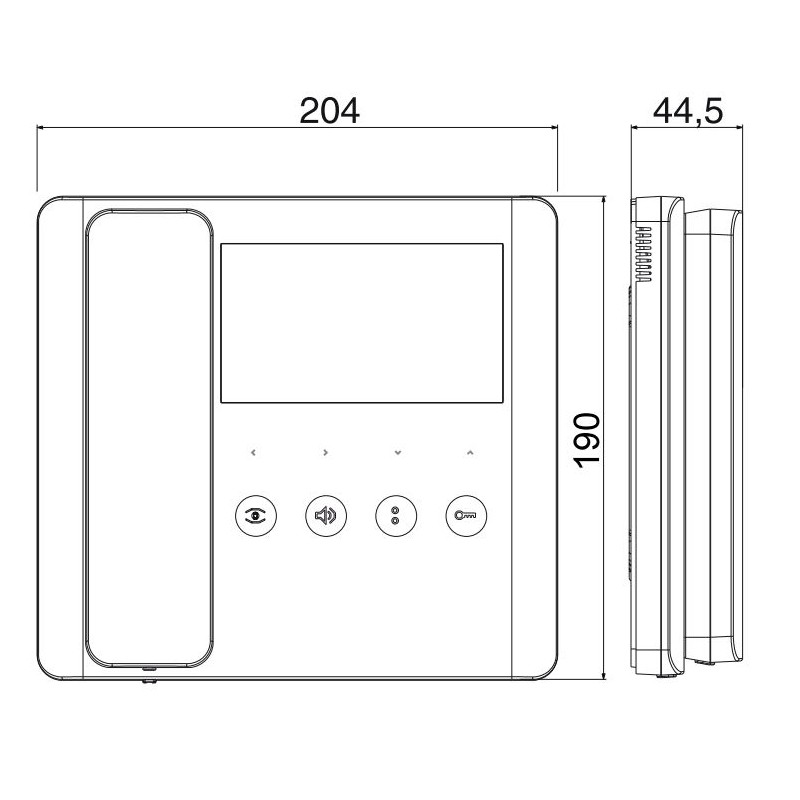

Dimensions: 204x190x44.5 mm (WxHxD)
€155.35
Items Available: 22
: 14
BPT Came video intercom modern design and advanced functionality

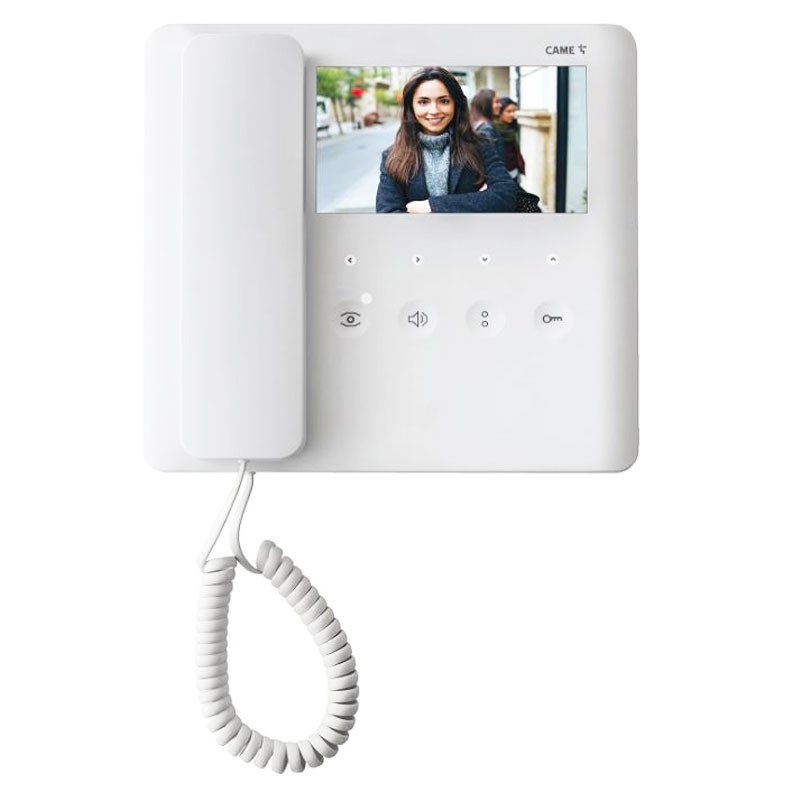

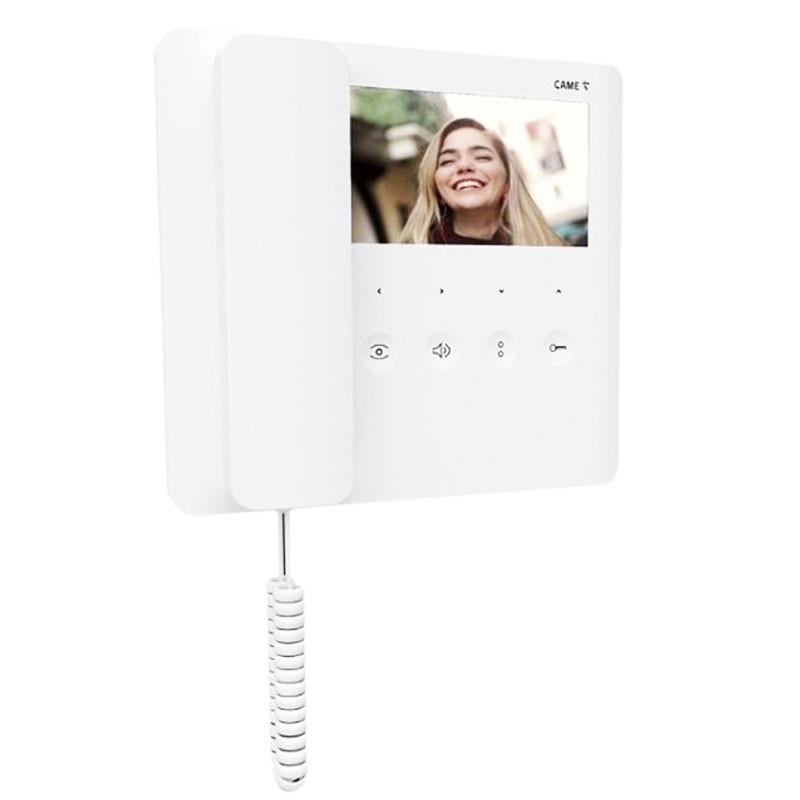

The AGT V videointercom Came BPT is an elegant and functional device designed to blend into any home environment. With its ergonomic handset with magnetic hook and backlit touch buttons, it offers an intuitive and secure user experience.
Brilliant images and complete control
The 5-inch LCD display, provides clear and vivid images, with color, brightness and contrast adjustments directly from OSD menu. Master/Slave function allows video dribble between multiple monitors in case of simultaneous calls, improving communication management in complex installations.
Built-in safety and comfort
Built-in functions include video auto-connection of door stations, gate opening management, and the ability to display gate status via LEDs. The AUX button enables customizations such as door call or activation of lights or automations.
Easy installation and full compatibility

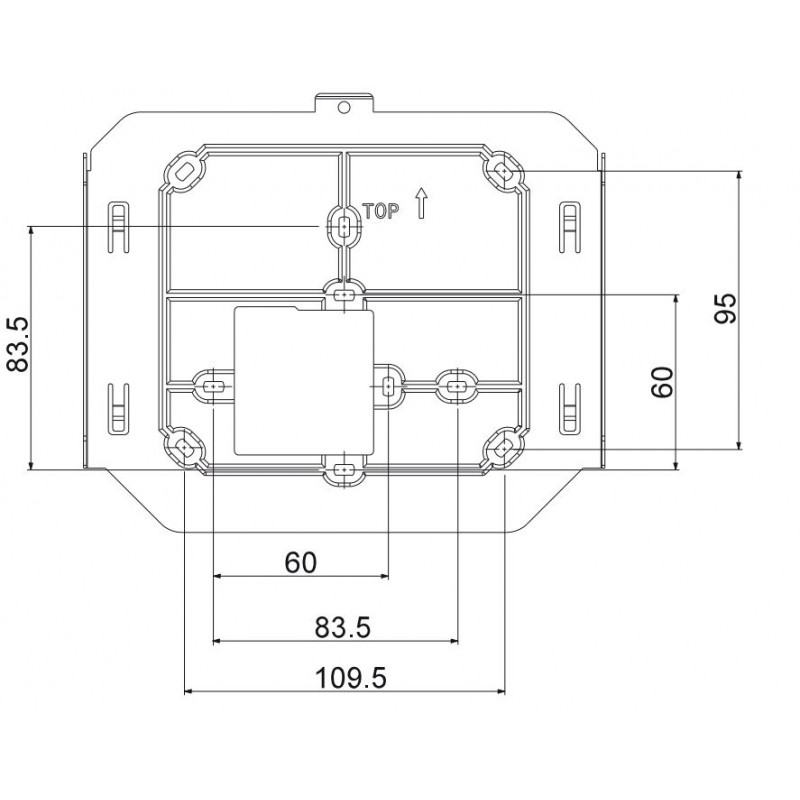

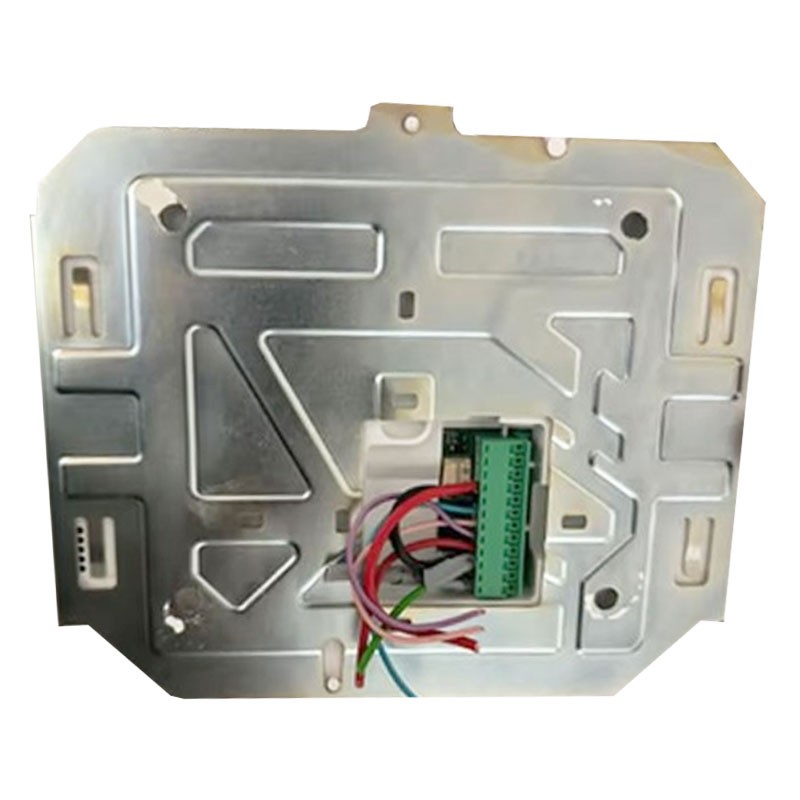

Compatible with X1 and XIP systems, the AGT V video intercom can be easily installed on the wall, either on a 503 horizontal/vertical box or a Ø 60 mm round box. Powered by BUS 15-20V DC, it has very low standby consumption.
Technical Specifications Came LCD Video Intercom
| Parameter | Value |
|---|---|
| Display | 5" color LCD |
| Keys | 4 soft-touch + 1 AUX |
| Power supply | 15-20 V DC from BUS |
| Power consumption (max / stand-by) | 175 mA / <1 mA |
| Dimensions (WxHxD) | 204 x 190 x 44.5 mm |
| Installation | Wall-mounted (box 503 or Ø60) |
| Compatibility | X1 system, XIP |
| Adjustments | OSD: color, contrast, brightness |
| Functions | Door opener, Latch, door call, auto-on video |
| Operating temperature | +5 ÷ +40 °C |
| Degree of protection | IP30 |
| Video standard | PAL/NTSC |
| Color | White |
There are no reviews
Data sheet
- Type: Video Intercoms
- Model: Intercom function
- System: 2-Wire
