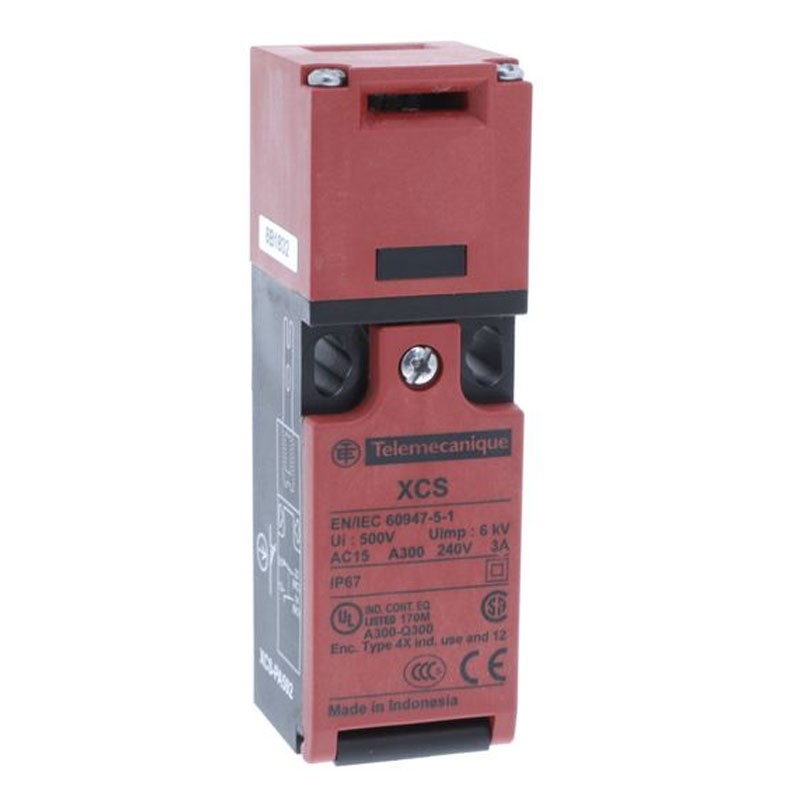

Telemecanique Safety Switch XCSPA791
TSI XCSPA791
3389110720525
Schneider Telemecanique Safety Switch, with the following characteristics:
- Conventional thermal current in box [Ithe]: 10A
- Rated impulse withstand voltage [Uimp]: 6 kV in accordance with EN/IEC 60947-5-1
- Protection against short circuits: 10A cartridge fuse type gG (gl)
- Rtc forced extraction actuator: 10N
- Maximum operating rate: 10 cycles/m for maximum duration
Telemecanique Safety Switch XCSPA791
€22.51
€22.51
Tax included
Tax included
Pay in installments with Klarna
Out of stock
Incoming
Safety level:
- Up to category 4 With properly wired appropriate monitoring system in accordance with EN/ISO 13849-1
- Up to PL = e With appropriate monitoring system properly wired according to EN/ISO 13849-1
- Can reach SIL 3 With appropriate monitoring system correctly wired according to EN/IEC 61508
Rated insulation voltage [Ui]:
- 300V according to UL 508
- 500V according to EN/IEC 60947-1
- 300V according to CSA C22.2 No 14
Rated operational current [Ie]:
- 6A at 120V, AC-15, A300 according to EN/IEC 60947-5-1
- 3A at 240V, AC-15, A300 according to EN/IEC 60947-5-1
- 0.55A @ 125V, DC-13, Q300 complies with EN/IEC 60947-5-1
- 0.27A @ 250V, DC-13, Q300 according to EN/IEC 60947-5-1
Other features:
- Schneider Telemecanique Series
- Protection treatment TC
- Operating ambient temperature -25...70 °C
- Storage temperature -40...70 °C
- Vibration resistance 5 gn (F= 10...500 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 10 gn for 11 ms according to IEC 60068-2-27
- Protection class against electric shock: Class II in accordance with EN/IEC 61140
- IP rating: IP67 in accordance with EN/IEC 60529 and EN/IEC 60947-5-1
- Design: Compact
- Material: Plastic
- Type of head Key-operated turret: Composition and type
- Contacts: 2 NC
- Contacts operation: Slow opening, simultaneous
- Cable entry 1 threaded entry for Pg 11
- Cable outer diameter: 7...10 mm
- Electrical connection: Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end sleeve
- Number of poles: 2
- Description of locking options: Without locking of the actuator
- Insulation: Double insulated
- Positive opening: With NC contact
- Mechanical endurance: 1000000 cycles
- Min force: positive opening 15 N
- Min actuation speed: 0,01 m/s
- Max actuation speed: 0,5 m/s
- Safety-reliability data: B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
- Housing material PA (polyamide)
- Head material PA (polyamide)
- Depth 30 mm
- Height 94 mm
- Width 30 mm
- Product weight 0.11 kg
