Comelit dual technology ceiling sensor range 4 meters DT360A
COE DT360A
8023903428063
Comelit dual technology ceiling sensor with the following features:
- Maximum mounting height 4 meters
- 360-degree coverage angle
- 10 GHz microwave
- LED signaling
- IR and MW range up to 4 meters
- Operating consumption less than 30 mA
€90.19
Items Available: 12
: 2

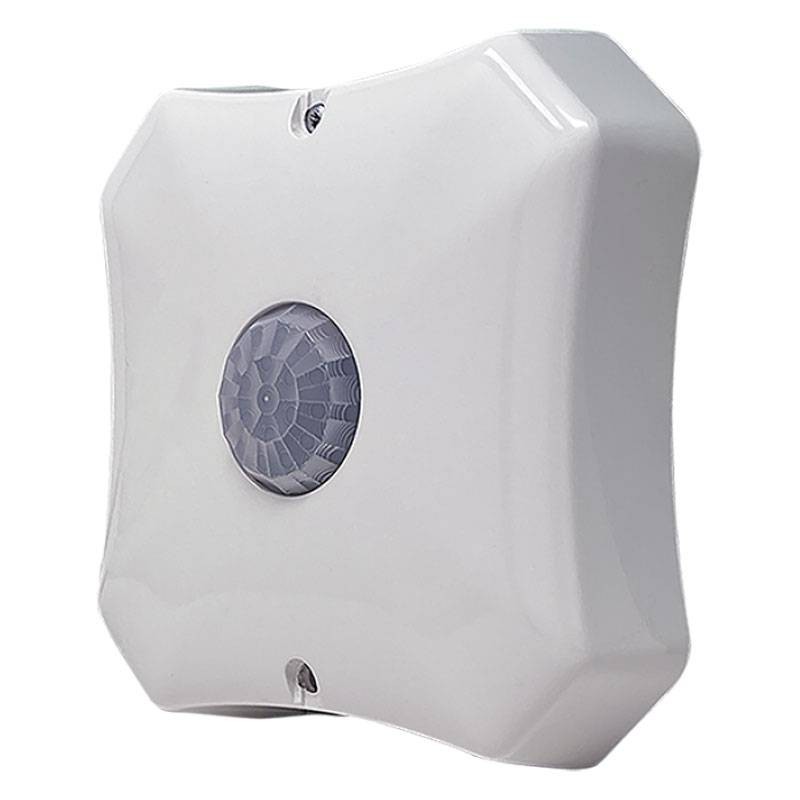

Dual technology sensor (passive infrared and microwave) for ceiling mounting. Suitable in volumetric protection of closed rooms of residential or industrial use. Its simple design makes it suitable for placement in all residential settings.
It is a stable sensor designed for false alarm prevention. Maximum mounting height 4 meters, 360-degree coverage angle, 10 GHz microwave, signal LED, IR and MW range up to 4 meters, and operating consumption less than 30 mA.
Features:
- Detection type: Dual technology sensor (passive infrared + microwave)
- Anti-masking technology: yes
- Infrared range (m) 4
- Coverage angle 110
- Infrared sensitivity adjustment Yes
- Microwave sensitivity adjustment Yes
- Microwave frequency 10.5GHz (X-band)
- Sensor logic AND/OR
- Warm up time 60s
- Led 3 (IR: red, MW: yellow, Alarm: blue)
- Type ABS coating materials
- Product color White
- Operating temperature (°C) -20 to 60
- Height (mm) 27
- Width (mm) 139
- Depth (mm) 139
- Indoor use Yes
- Installation height (m) 1 ÷ 4
- Warm up time (s) (secs) 60
- Supply voltage 9÷16VDC
- Maximum current consumption (mA) 33
- Contact type NC
- Maximum indoor distance (m) 13
- Microwave frequency (GHz) 10
There are no reviews
Data sheet
- Type: Sensors
- System: Antimasking
- Installation: Ceiling
