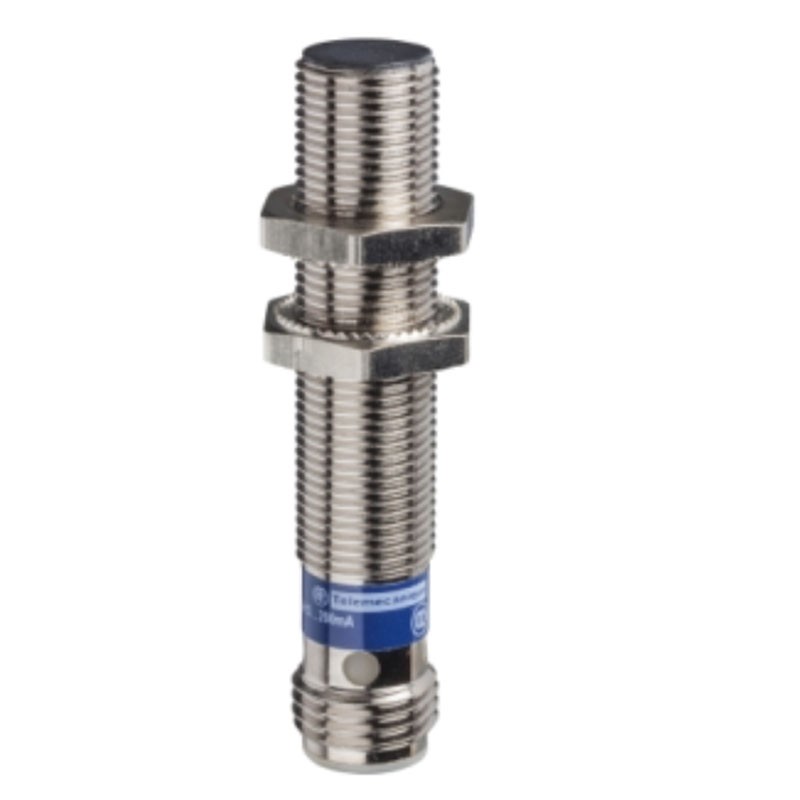

Telemecanique Proximity Sensor XS6 M12 SN 4mm NO NPN XS612B1NAM12
TSI XS612B1NAM12
3389110146301
Telemecanique Schneider XS6 M12 inductive proximity sensor, with the following characteristics:
- Rated supply voltage [Us]: 12...48 V DC with reverse polarity protection
- Switching capacity in mA: <= 200 mA DC with overload and short-circuit protection
- IP rating: IP67 according to IEC 60529, IP69K according to DIN 40050
- Thread type: M12 x 1
- Sensor shape: cylindrical M12
- Size 62 mm
- Body type: fixed
- Metal immersion mounting possibility: yes
- Material: metal
- Output signal type: digital
- Wiring type: 3 wires
€30.44
€30.44
Tax included
Tax included
Out of stock
Incoming
Other technical features:
- Nominal sensing distance: 4 mm
- Digital output function: 1 NO
- Output circuit type: DC
- Digital output type: NPN
- Electrical connection: male M12 connector, 4-pin
- Sensing surface: front side
- Front panel material: PPS
- Cassette material: nickel-plated brass
- Sensing range: > 2.5 to 4 mm
- Operating zone: 0...3.2 mm
- Differential travel: 1...15% Sr
- Status LED: output status: 1 LED (yellow)
- Supply voltage limits: 10...58V DC
- Switching frequency: <= 2500 Hz
- Maximum voltage drop: <2 V (closed)
- Current consumption: <= 10 mA at no load
- Maximum delay before on: 10 ms
- Maximum response delay: 0.2 ms
- Maximum recovery delay: 0.2 ms
- CE Symbology
- Threaded length 42 mm
- Length 62 mm
- Weight: 0.02 kg
- Operating ambient temperature: -25/+70 °C
- Storage temperature: -40/+85 °C
- Vibration resistance: 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) complies with IEC 60068-2-6
- Shock resistance: 50 gn for 11 ms complies with IEC 60068-2-27
There are no reviews
Data sheet
- Type: Sensors
- Voltage: 12/48V
