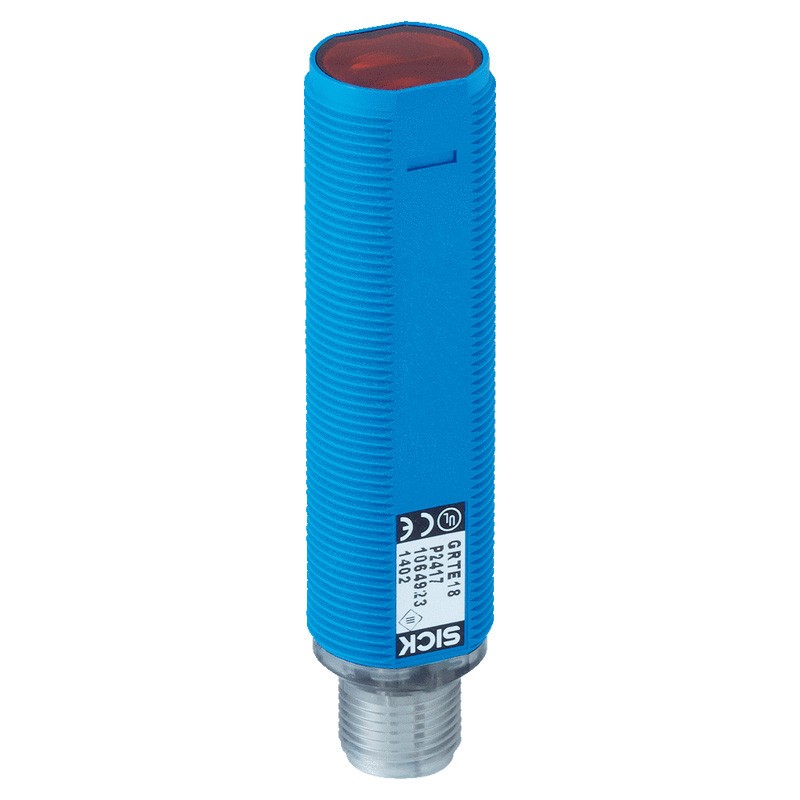

Sick through-beam photoelectric sensor with LED Light 1064921
SIK 1064921
Sick through-beam photoelectric sensor, precise detection up to 15 metres with visible PinPoint LED light, with the following characteristics:
-
Type of light: Visible red light (PinPoint LED)
-
Wavelength: 650 nm
-
Max. detection distance: 15 m
-
Recommended operating distance: 10 m
-
Light spot at 10 m: 250 mm
-
Thread: M18 x 1
-
Optical axis: Axial
-
Supply voltage: 10-30V DC
-
Current consumption: 30 mA
-
Protection class: IP67
-
Dimensions: 18x18x73.5 mm (WxHxD)
€103.27
Items Available: 2
: 1
Photoelectric sensor efficient and reliable detection
The Sick GRSE18-P2447 through-beam photoelectric sensor is designed for industrial applications where high precision and excellent reliability are required even over long distances. Thanks to its through-beam technology and visible red PinPoint LED light emission, the device allows accurate detection up to 15 meters, with an optimal operating distance of up to 10 meters.
Compact and durable design for industrial environments
The compact and robust structure of the sensor makes it perfect for installations even in confined spaces. The ABS plastic body and PMMA lens ensure resistance to impacts, dust, and moisture, making it suitable for complex environmental conditions. The IP67 protection rating allows its use in harsh industrial environments.
Configurable functionalities and intuitive signals
The Sick GRSE18-P2447 sensor features a potentiometer for sensitivity adjustment, and LED indicators (green/yellow) to signal operating status and object presence. This facilitates installation and maintenance, improving operational efficiency.
Simple and versatile electrical interface
Equipped with a complementary PNP switching output, the device supports both light on and dark on modes, thus adapting to different operating logics. The response time < 500 µs and the switching frequency up to 1,000 Hz ensure high performance in dynamic applications.
Applications of the photoelectric sensor
The sensor is ideal for object detection on conveyor belts, presence control in automated production lines, access protection, and passage monitoring in industrial, logistics, and OEM fields. EMC compatibility according to EN 60947-5-2 standard ensures safe integration into complex industrial systems.
Technical Features Sick Photoelectric Sensor
| Dimensions (W x H x D) | 18 x 18 x 73.5 mm |
| Type of light | Visible red light (PinPoint LED) |
| Wavelength | 650 nm |
| Maximum detection distance | 15 m |
| Recommended operating distance | 10 m |
| Light spot at 10 m | Ø 250 mm |
| Thread | M18 x 1 |
| Optical axis | Axial |
| Setting | Potentiometer |
| Indicators | Green LED (power), Yellow LED (status) |
| Supply voltage | 10 ... 30 V DC |
| Residual ripple | < 5 Vpp |
| Current consumption | 30 mA |
| Output | PNP, Complementary |
| Switching type | Light on / Dark on |
| Max. output current | 100 mA |
| Response time | < 500 µs |
| Switching frequency | 1,000 Hz |
| Connection | M12 connector, 4-pin |
| Integrated protections | A, B, D |
| Protection rating | IP67 |
| Housing material | ABS plastic |
| Optics material | PMMA plastic |
| Operating temperature | -25 °C ... +55 °C |
| Storage temperature | -40 °C ... +70 °C |
| EMC compatibility | EN 60947-5-2 |
There are no reviews
Data sheet
- Type: Sensors
- Degree of protection: IP67
