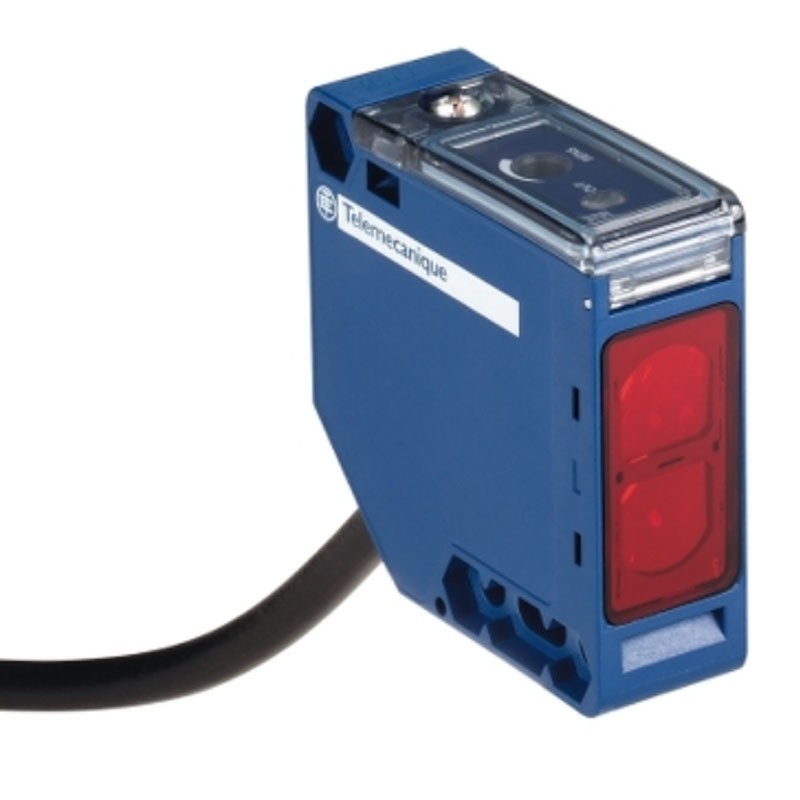

Telemecanique XUK photoelectric sensor with cable XUK0ARCTL2
TSI XUK0ARCTL2
3389110160420
XUK Telemecanique Schneider photoelectric sensor, with the following characteristics:
- Rated supply voltage [Us]: 24...240 V AC, 24...240 V DC
- Supply voltage limits: 20...264 V AC, 20...264 V DC
- Switching capacity in mA: 3A (cos ϕ = 1 for 0.5 million cycles at 1 cycle per second at 250 V)
- Switching frequency: <= 20 Hz
- Maximum voltage drop: <1.5 V (closed state)
- Power consumption in W: 3W AC/DC
- Timing range: 0...10 s monostable, delay to excitation or de-excitation (programmable) delay
- Maximum delay before on: 300 ms
- Maximum response delay: 25 ms
- Maximum recovery delay: 25 ms
Can be mounted directly on a surface or bracket due to its three attachment points.
€96.96
Items Available: 11
: 2
Schneider Electric's compact design multimode photoelectric sensor has a PBT housing, 30-meter sensing distance, NO + NC function relay output and is pre-wired (2-meter cable).
It has a supply voltage of 24 to 240 VDC/dc. This multi-mode rectangular photoelectric sensor has a plastic housing, and is CSA, UL certified.
Other technical features:
- Configuration: self-learning
- Electrical life: 500000 cycles, cos f = 1, operating range <60 cycles/m at 250V
- Operating ambient temperature: -25/+55 °C
- Storage temperature: -40/+70 °C
- Vibration resistance: 7 gn, amplitude = +/-1.5 mm (f = 10...55 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 11 ms) complies with IEC 60068-2-27
- IP degree of protection: double insulation IP65 complying with IEC 60529
- Sensor shape: compact 50 x 50
- Sensing system: multimode
- Material: plastic
- Output signal type: digital
- Power supply circuit type; AC/DC
- Wiring type: 5 wires
- Digital output function: 1 NO or 1 NC programmable
- Electrical connection: cable
- Cable length: 2 meters
- Cassette material: PBT
- Lens material: PMMA
- Output type: relay
- Additional output: without, <= 50 mA with overload and short circuit protection
- Wire insulation material: PvR
- Depth: 50 mm
- Height: 50 mm
- Width: 18 mm
- Weight: 0.175 kg
Emission:
- Infrared proximity
- Infrared proximity with background suppression
- Infrared through-beam
- Red polarized reflection
Nominal sensing distance:
- 4 m polarized reflection need reflector XUZC50
- 30 m thru-beam need a transmitter XUK0ARCTL2T
- 0.28 m proximity with background suppression
- 0.8 m proximity
Status LED:
- 1 LED (green) for power supply
- 1 LED (red) for instability
- 1 LED (yellow) for output status
