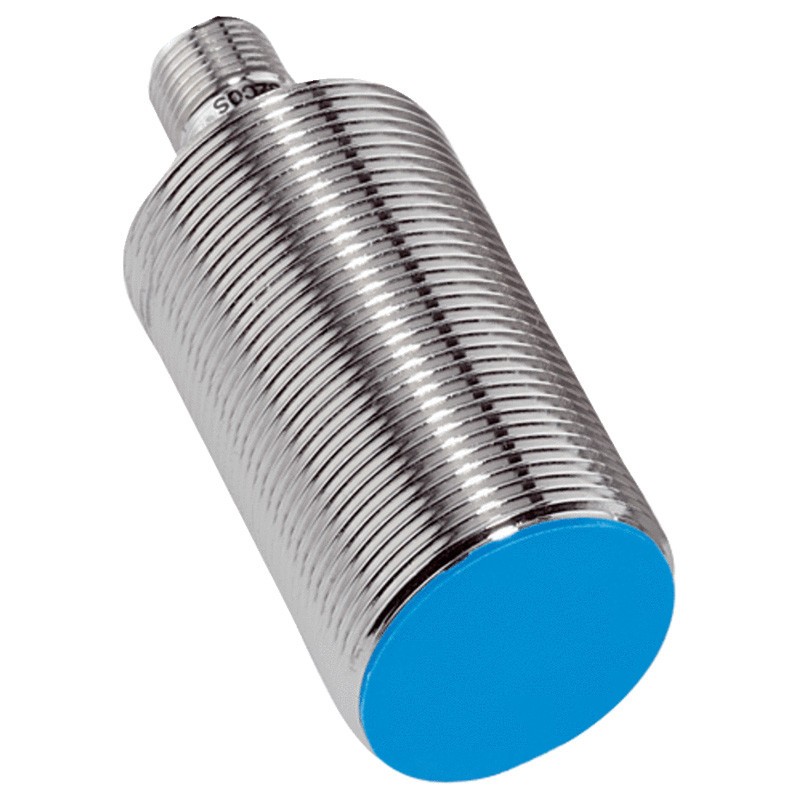

Sick IME30 M30 4-pole inductive proximity sensor 1041030
SIK 1041030
Sick IME30 M30 inductive proximity sensor, with the following features:
- Supply voltage: 10V DC ... 30V DC
- Residual ripple ≤ 10 %
- Voltage drop ≤ 2V
- Availability delay ≤ 125 ms
- Hysteresis 3 % ... 15 %
- Reproducibility ≤ 2 %
- Thermal drift (d Sr) ± 10 %
- EMC according to EN 60947-5-2
- Continuous current IA ≤ 200 Ma
- No-load current: ≤ 10 mA
- Degree of protection: IP67
- Short-circuit protection: YES
- Reverse polarity protection: YES
- Trigger pulse protection: YES
€32.52
Items Available: 2
: 1
Other technical characteristics:
- Vibration and shock resistance: 30 g, 11 ms/10 Hz...55 Hz, 1 mm
- Ambient operating temperature: -25 °C/+75 °C
- Housing material: Brass, nickel-plated
- Material, active surface: plastic, PA 66
- Maximum tightening torque: ≤ 100 Nm
- Thread size: M30 x 1.5
- Diameter: Ø 30 mm
- Switching distance Sn: 15 mm
- Protected switching distance Sa: 12.15 mm
- Metal mounting: flush
- Switching frequency 500 Hz
- Connection type: M12 male connector, 4-pin
- Switching output: PNP
- Output function: N/O
- Electrical equipment: DC 3-wire
- Degree of protection: IP67
