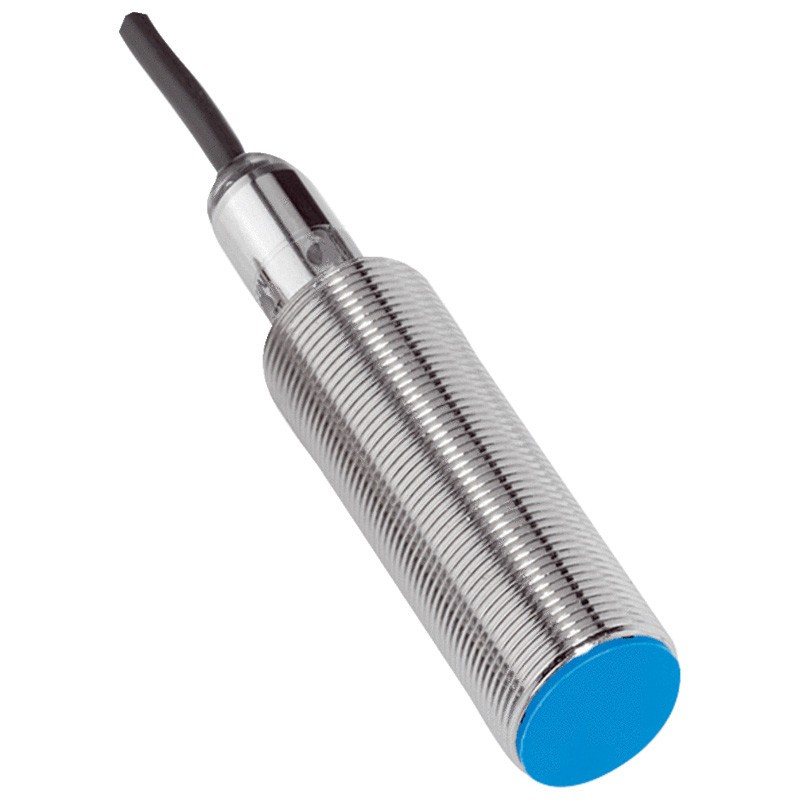

Sick IME18 inductive proximity sensor with cable 1040972
SIK 1040972
Sick IME inductive proximity sensor, with the following characteristics:
- Housing: metric shape
- Supply voltage: 10 V DC ... 30 V DC
- Residual ripple ≤ 10 %
- Voltage drop: ≤ 2 V 1)
- Availability delay: ≤ 100 ms
- Hysteresis: 5 % ... 15 %
- Reproducibility: ≤ 2 % 2) 3)
- Thermal drift (d Sr) ± 10 %
- EMC: according to EN 60947-5-2
- Continuous current IA ≤ 200 mA
- No-load current ≤ 10 mA
- Short-circuit protection: SI
- Reverse polarity protection: YES
- Trigger pulse protection: YES
€25.54
Items Available: 2
: 1
Other technical characteristics:
- Vibration and shock resistance: 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
- Ambient operating temperature: -25/+75 °C
- Material, active surface: plastic, PA 66
- Maximum tightening torque ≤ 40 Nm
- MTTFD: 1,735
- DCavg: 0 %
- Thread size: M18 x 1
- Diameter: Ø 18 mm
- Switching distance Sn: 8 mm
- Protected switching distance Sa: 6.48 mm
- Metal mounting: flush
- Switching frequency: 1,000 Hz
- Connection type Cable, 3-wire, 2 meters
- Switching output: PNP
- Output function: N/C
- Electrical equipment: DC 3-wire
- Degree of protection: IP67
- Scope of supply : Retaining nut, brass, nickel-plated (2 x)
There are no reviews
Data sheet
- Type: Sensors
- Degree of protection: IP67
