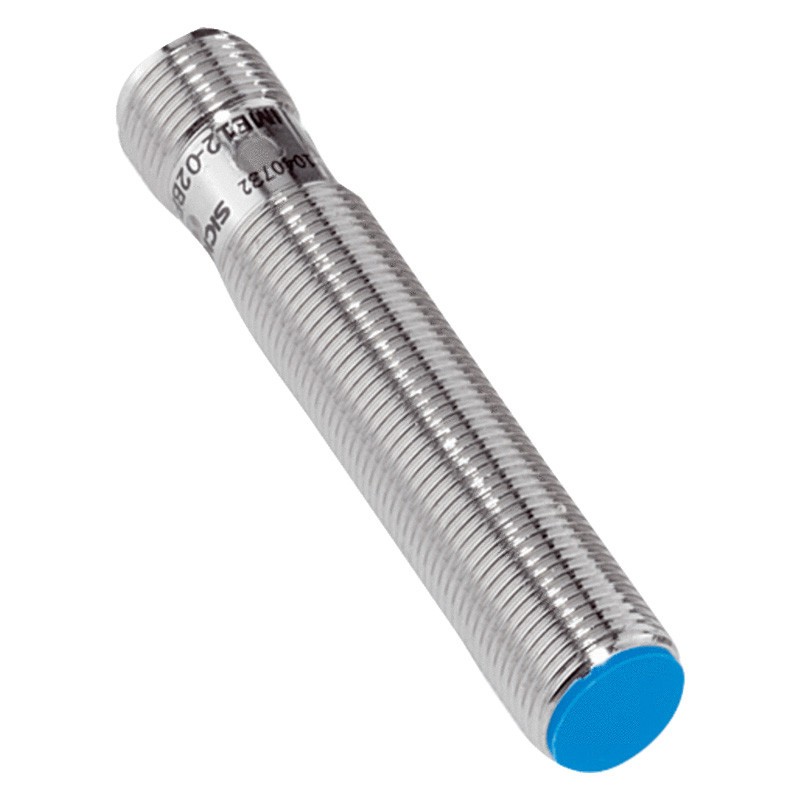

Sick inductive proximity sensor IME12 M12 4 Poles 1040764
SIK 1040764
Sick IME M12 inductive proximity sensor, with the following features:
- Supply voltage: 10V DC ... 30V DC
- Residual ripple ≤ 10 %
- Voltage drop ≤ 2V
- Availability delay ≤ 100 ms
- Hysteresis 5 % ... 15 %
- Reproducibility ≤ 2 %
- Thermal drift (d Sr) ± 10 %
- EMC according to EN 60947-5-2
- Continuous current IA ≤ 200 Ma
- Degree of protection: IP67
- Short-circuit protection: SI
- Reverse polarity protection: YES
- Trigger pulse protection: YES
Sick inductive proximity sensor IME12 M12 4 Poles 1040764
€23.10
€23.10
Tax included
Tax included
Pay in installments with Klarna
Items Available: 13
Other technical characteristics:
- Vibration and shock resistance: 30 g, 11 ms/10 Hz...55 Hz, 1 mm
- Ambient operating temperature: -25 °C/+75 °C
- Housing material: Brass, nickel-plated
- Material, active surface: Plastic, PA 66

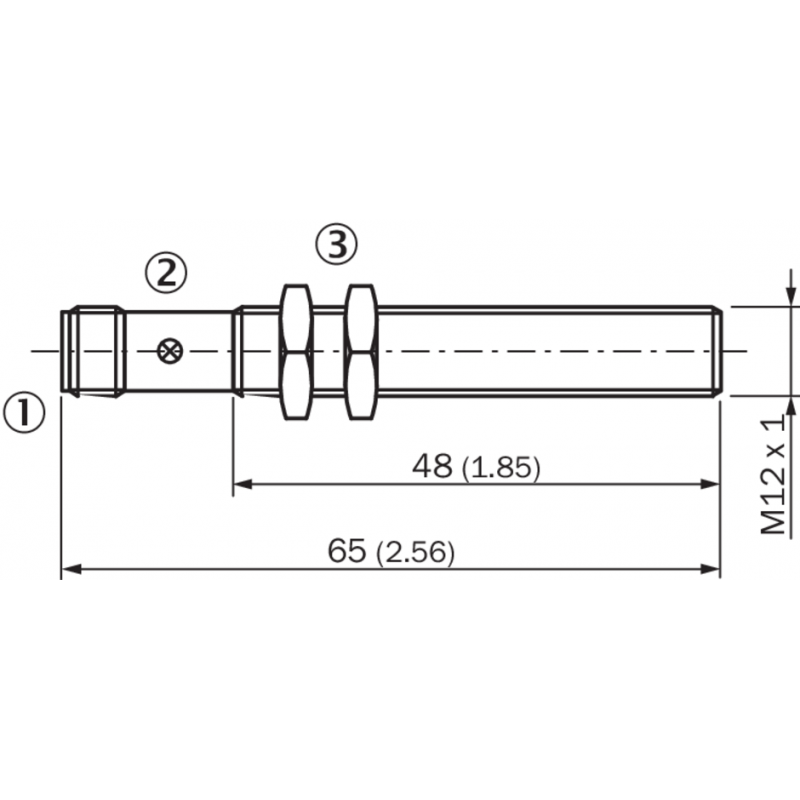

- Length 65 mm
- Useful thread length 48 mm
- Maximum tightening torque: ≤12 Nm
- Housing structure: Standard
- Thread size: M12 x 1
- Diameter: 12 mm dia.
- Switching distance Sn: 4 mm
- Protected switching distance Sa: 3.24 mm
- Metal mounting: flush
- Switching frequency 2,000 Hz
- Connection type: male M12 connector, 4-pin
- Switching output: PNP
- Output function: N/O
- Electrical equipment: DC 3-wire
