Lovato GN series switch diagram 13-40A 7GN4013U
LOV 7GN4013U

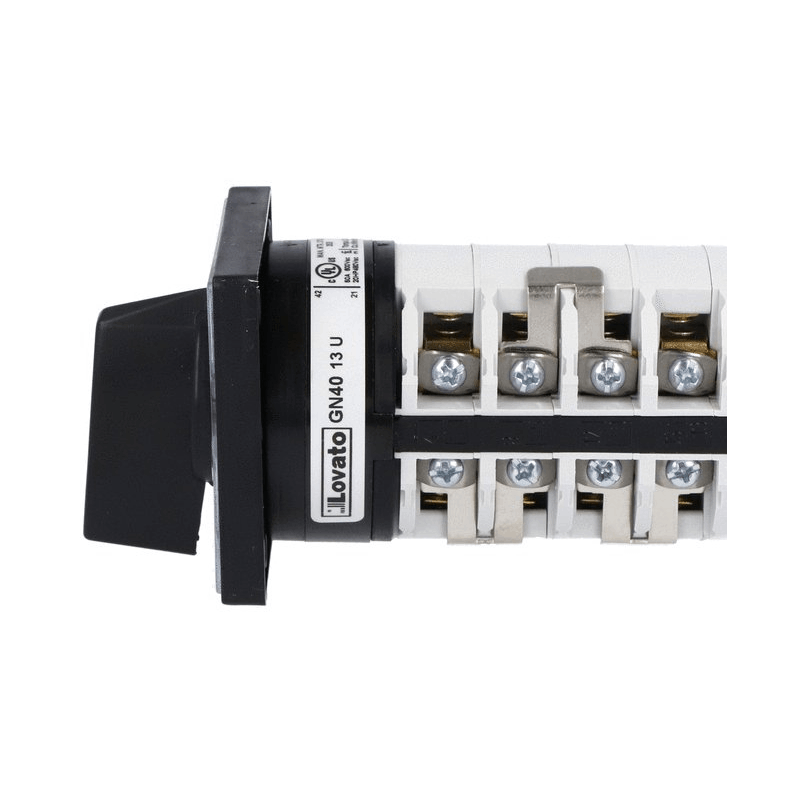

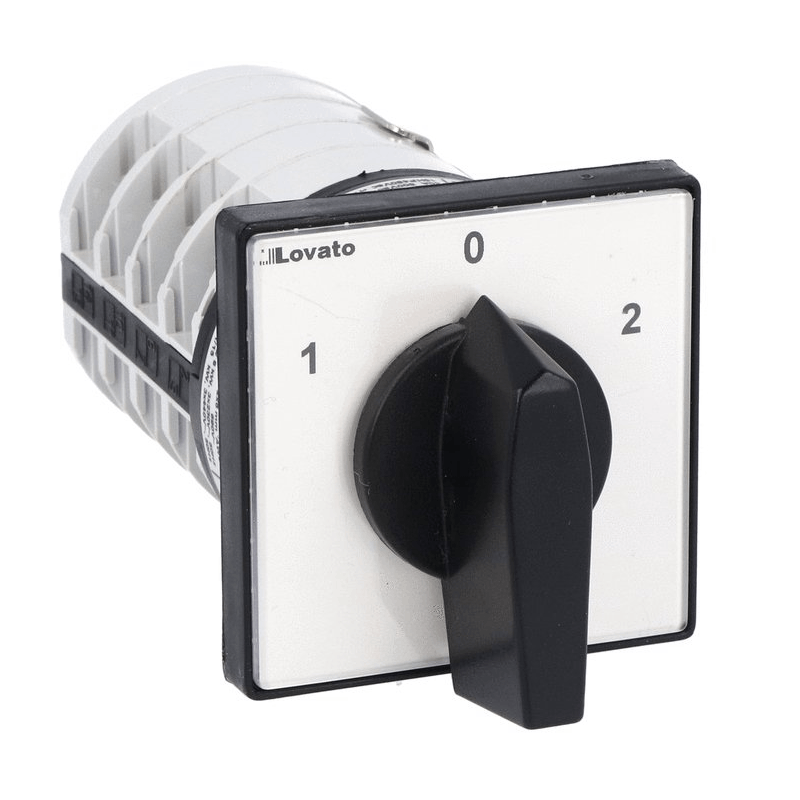

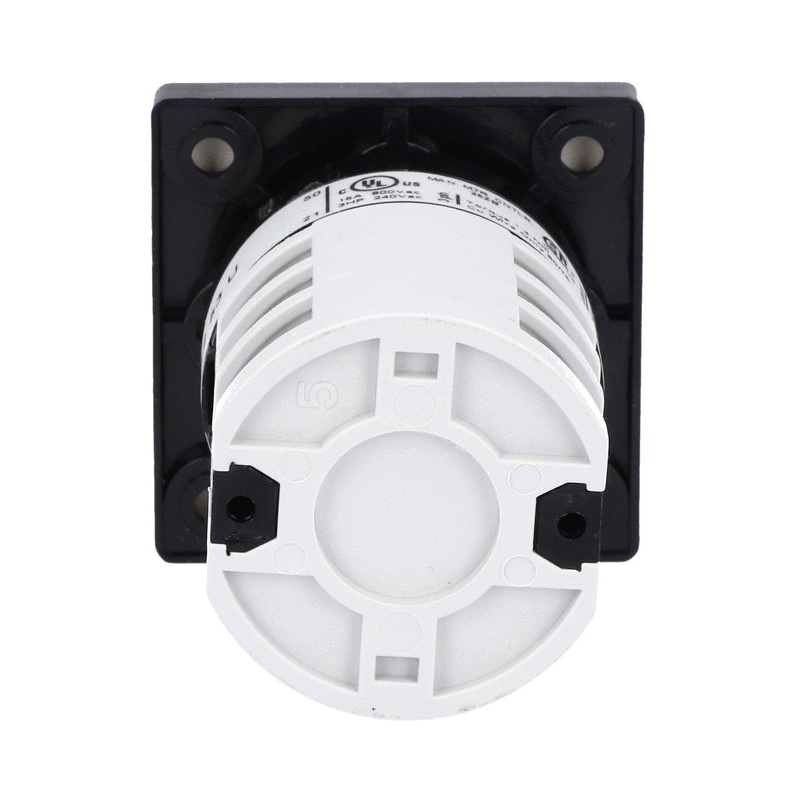

Lovato 7GN series rotary cam switch with the following characteristics:
- Rated insulation voltage Ui: IEC/EN 690V - UL/CSA 600V
- Rated impulse withstand voltage Uimp kV 6
- Conventional free air thermal current Ith: IEC/EN UN 40A - UL/CSA UN 50
- Rated operating voltage: 480V
- Rated operating impulse voltage: kV 4

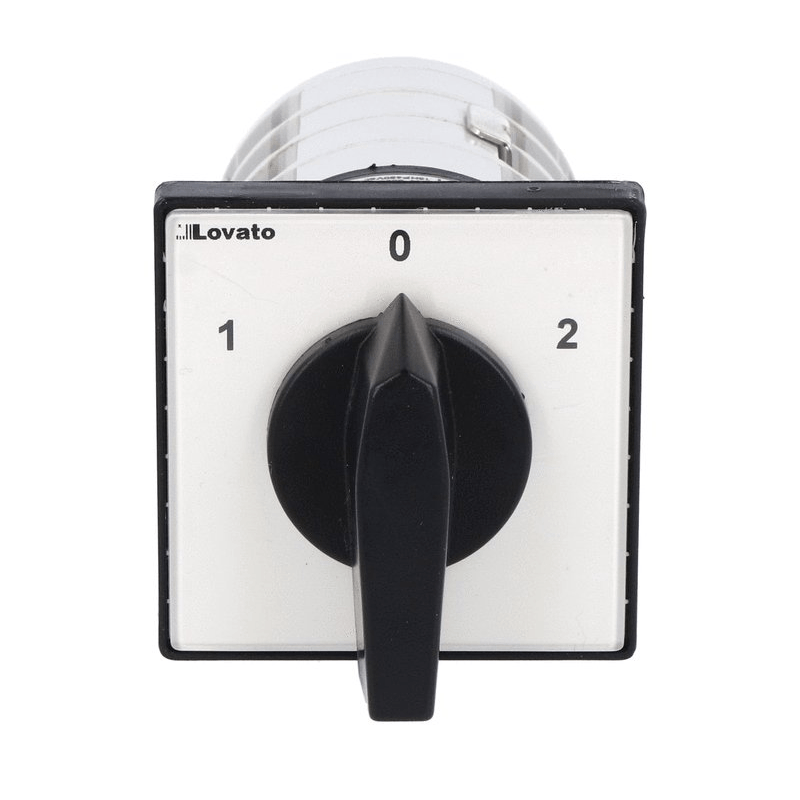

- Mounting module: front mounting with black handle
- 4 Elements
- Rated short-time withstand current Icw: 1s UN 1000
€80.94
Items Available: 1
Other technical characteristics:
- Conductivity: 10/5 mA/V
- Power dissipation: 2W

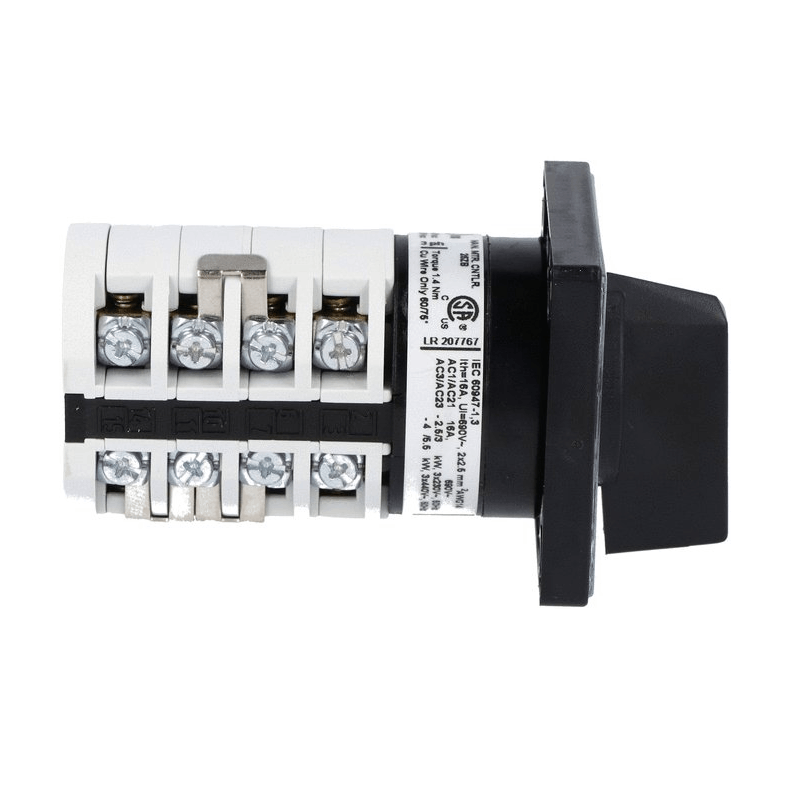

- M4 screw terminals
- Tightening torque for terminals max Nm: 1.2
- Mechanical life: 5x106 cycles
- Operating temperature: -25/+55°C
- Storage temperature: -40/+70°C
- IP rating of front plate IP40 - IP rating of terminals IP00

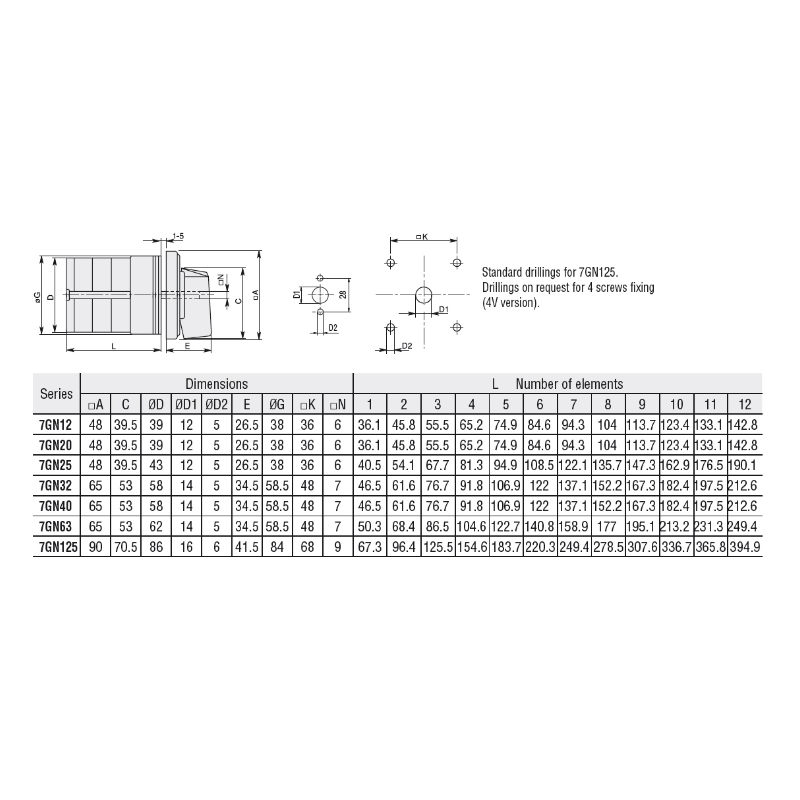

- Dimensions: front plate 65X65mm
There are no reviews
Data sheet
- Type: Commutators
- Voltage: 600V
- Poles: 4P
- Degree of protection: IP40
- Amps: 40A
