Lovato GN series switch diagram 13- 32A 7GN3213U

Lovato
Lovato
LOV 7GN3213U 3850144003415

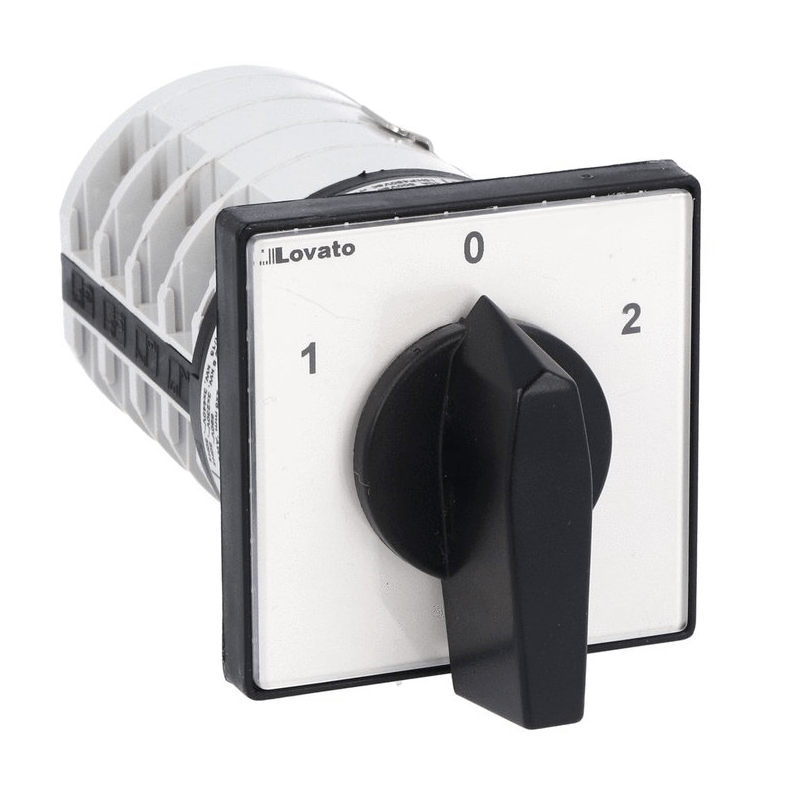

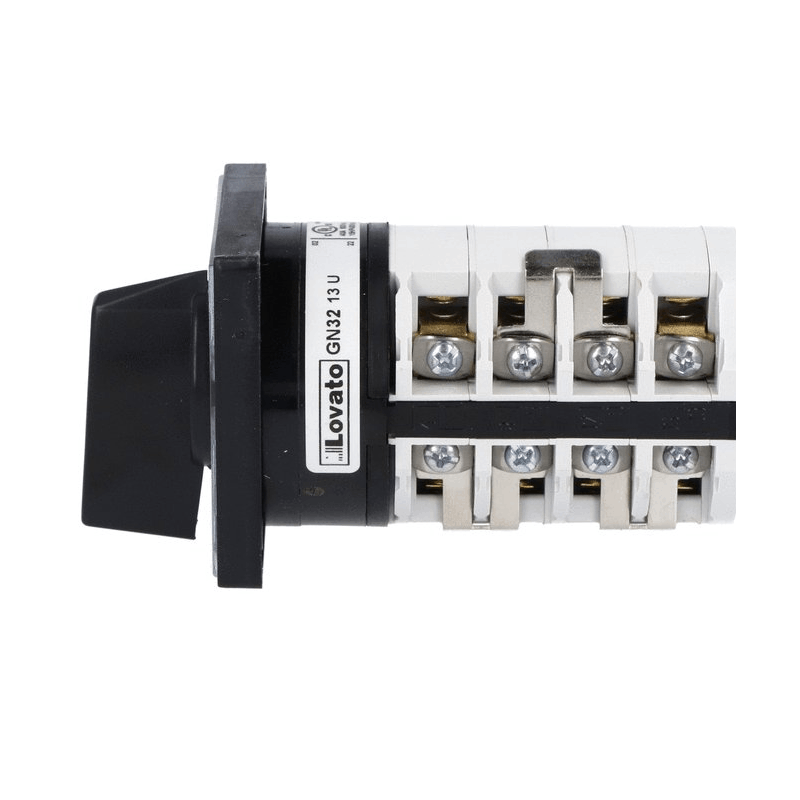

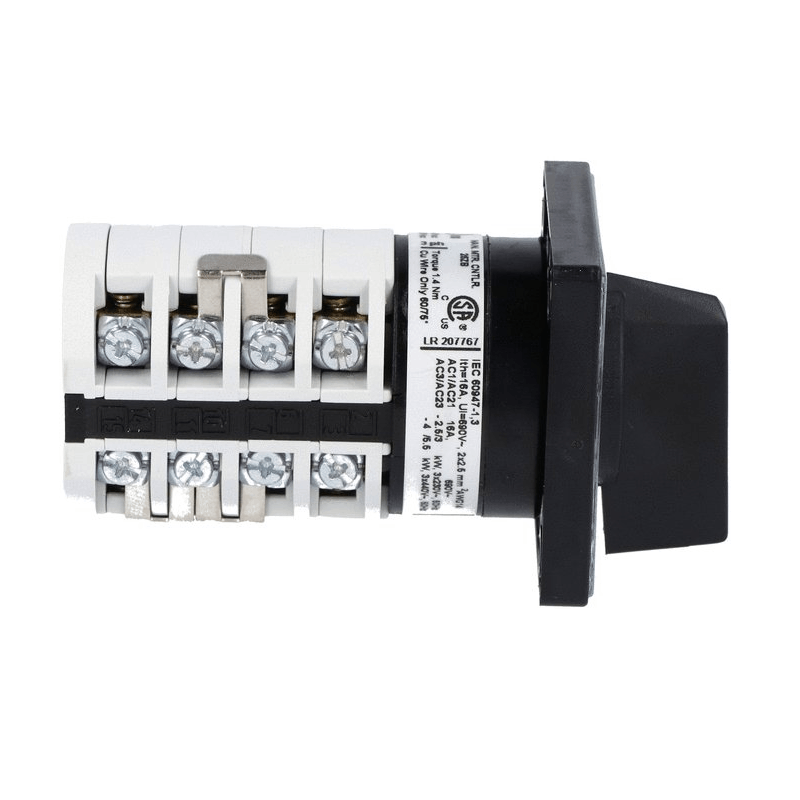

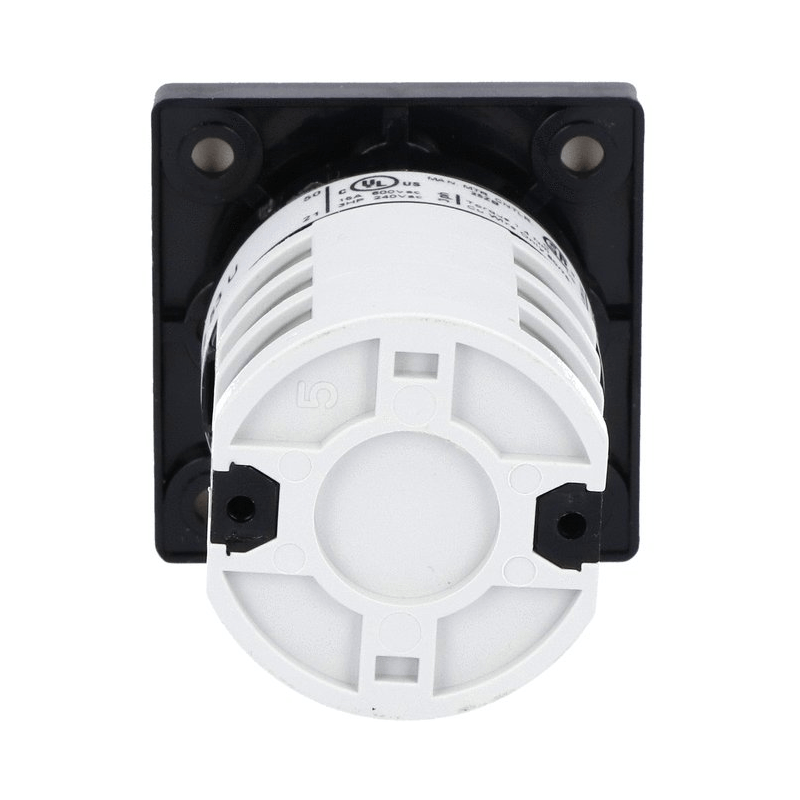

Lovato 7GN series rotary cam switch with the following characteristics:

  • Rated insulation voltage Ui: IEC/EN 690V - UL/CSA 600V
  • Rated impulse withstand voltage Uimp kV 6
  • Conventional free air thermal current Ith: IEC/EN UN 32A - UL/CSA UN 40
  • Rated operating voltage: 480V
  • Rated operating impulse voltage: kV 4

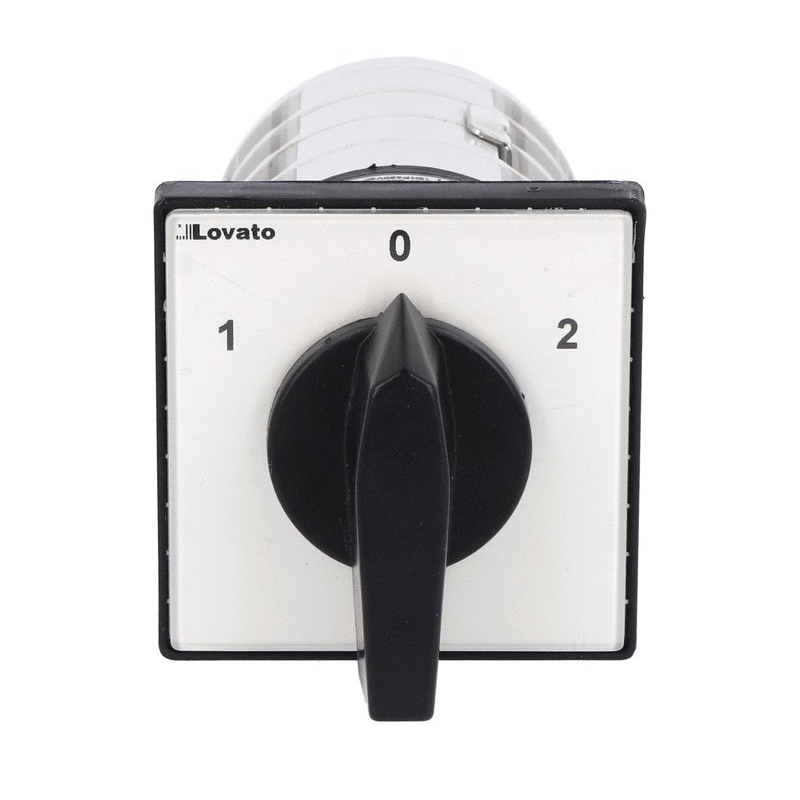

  • Mounting module: front mounting with black handle
  • 4 Elements
  • Rated short-time withstand current Icw: 1s UN 800
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato GN series switch diagram 13- 32A 7GN3213U
€56.86
€56.86

€56.86
Tax included
Calculate shipping cost
Out of stock
Further availability of the manufacturer
Incoming
€56.86

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical characteristics:

  • Conductivity: 10/5 mA/V
  • Power dissipation: 1.5W
  • M4 screw terminals
  • Tightening torque for terminals max Nm: 1.2
  • Mechanical life: 5x106 cycles
  • Operating temperature: -25/+55°C
  • Storage temperature: -40/+70°C
  • IP rating of front plate IP40 - IP rating of terminals IP00

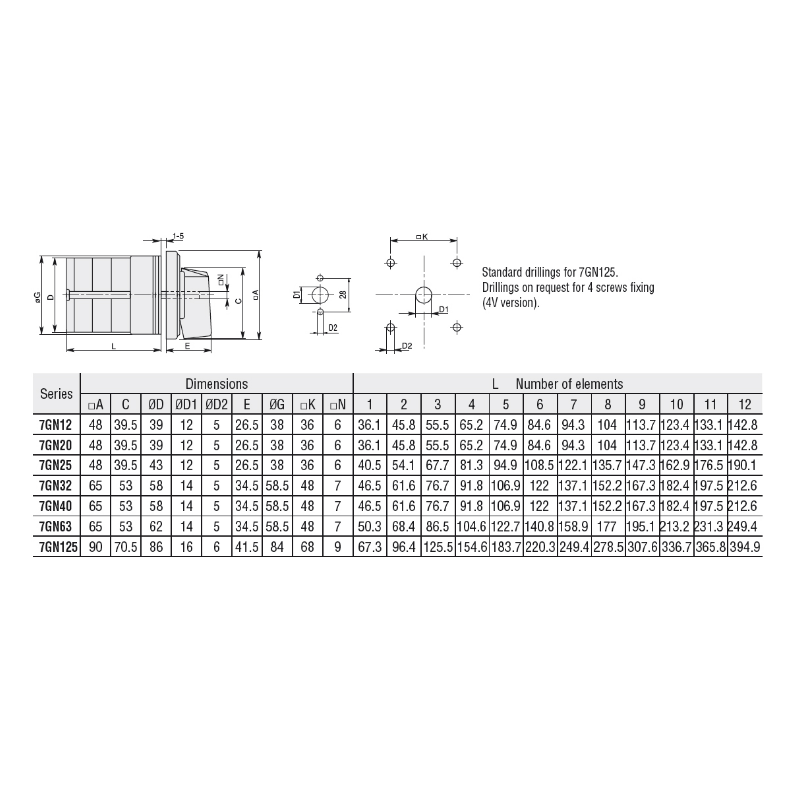

  • Dimensions: front plate 65X65mm

There are no reviews

Data sheet

Type:
Commutators
Voltage:
600V
Poles:
4P
Degree of protection:
IP40
Amps:
32A
