Lovato GN series switch scheme 12- 32A 7GN3212U
LOV 7GN3212U
3850144003910

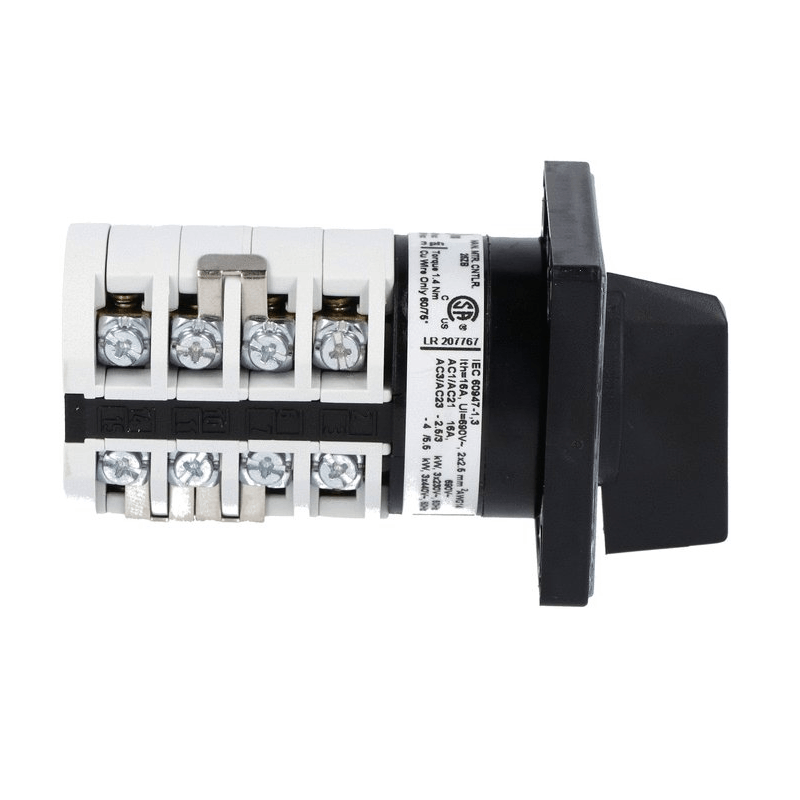

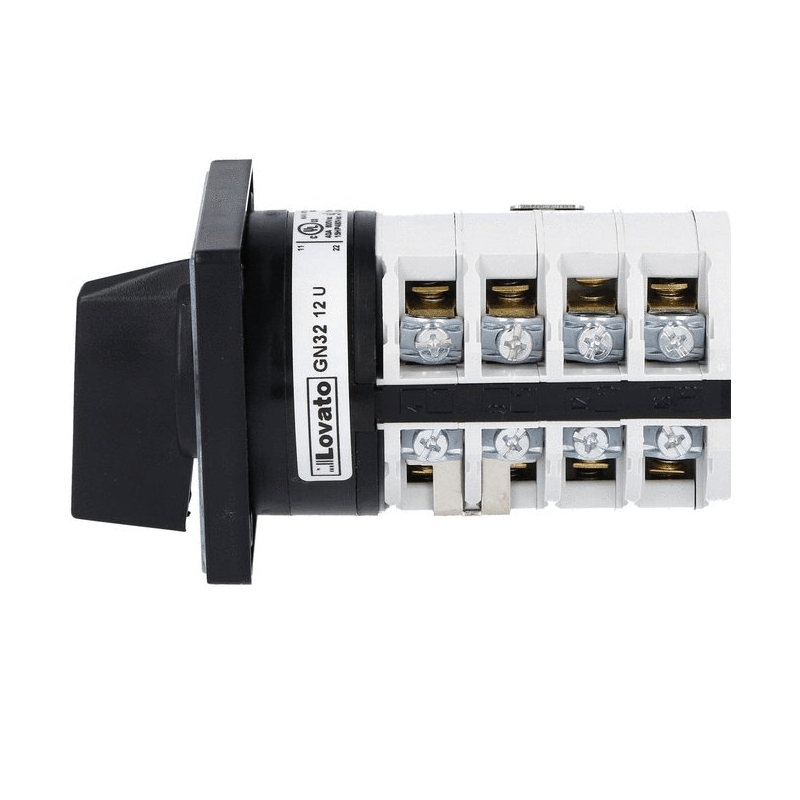

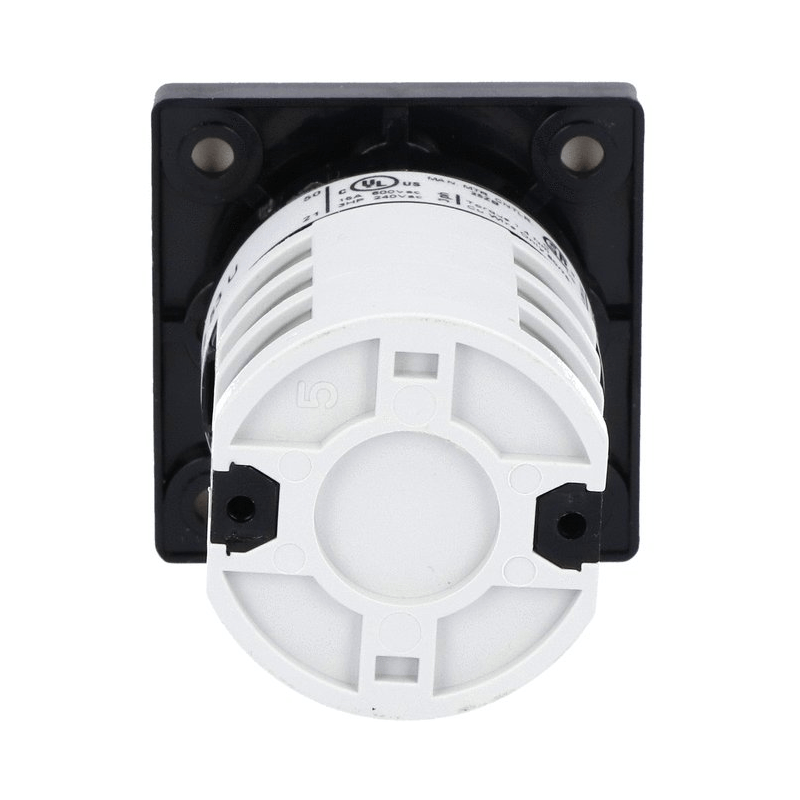

Lovato 7GN series rotary cam switch with the following characteristics:
- Rated insulation voltage Ui: IEC/EN 690V - UL/CSA 600V
- Rated impulse withstand voltage Uimp kV 6
- Conventional free air thermal current Ith: IEC/EN UN 32A - UL/CSA UN 40

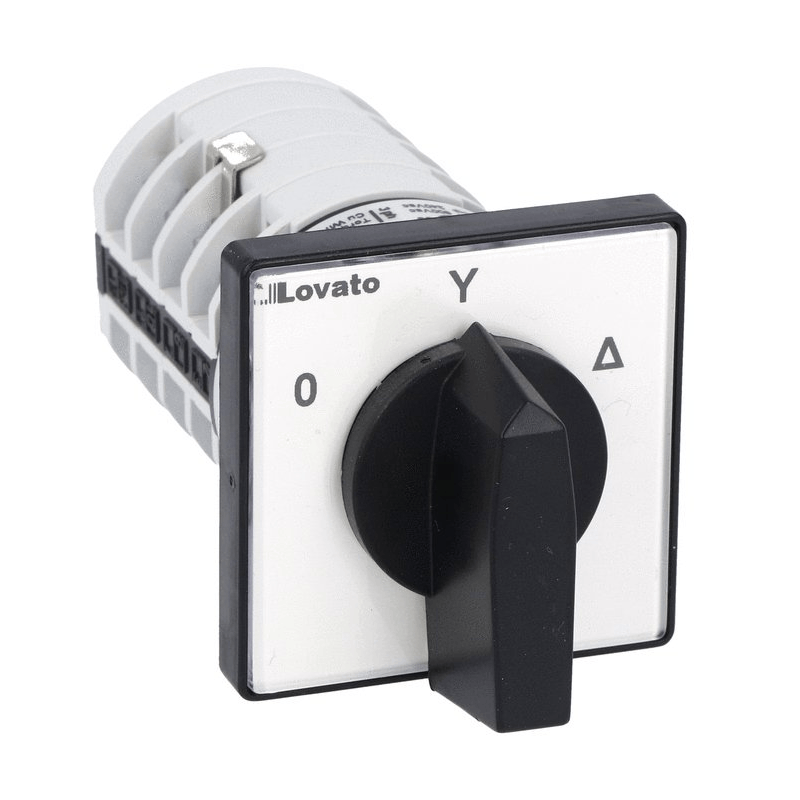

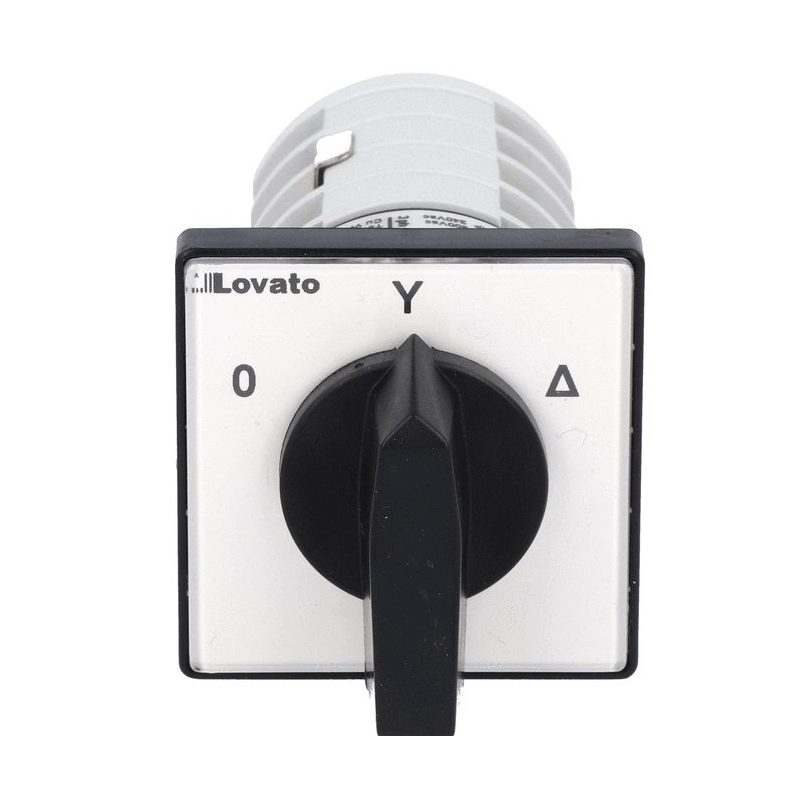

- Star-delta motor starter switch 32A
- Rated operating voltage: 480V
- Rated operating impulse voltage: kV 4
- Mounting module: front mounting with black handle
- 4 elements
- Rated short-time running current Icw: 1s UN 800
€56.86
Items Available: 3
: 1
Other technical characteristics:
- Conductivity: 10/5 mA/V
- Power dissipation: 1.5W
- M4 screw terminals
- Tightening torque for terminals max Nm: 1.2
- Mechanical life: 5x106 cycles
- Operating temperature: -25/+55°C
- Storage temperature: -40/+70°C
- IP rating of front plate IP40 - IP rating of terminals IP00

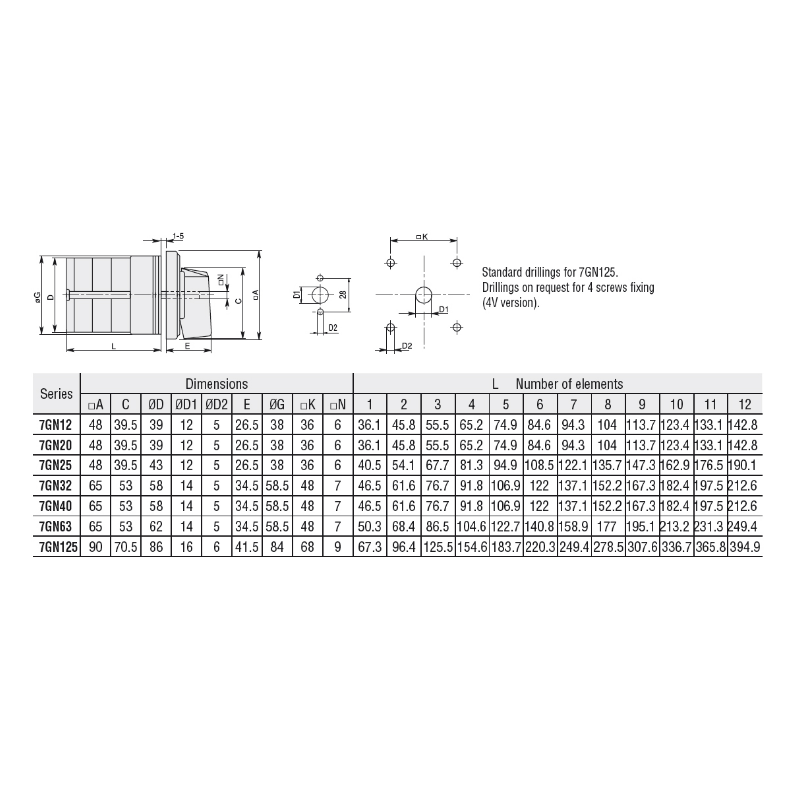

- Dimensions: front plate 65X65mm
There are no reviews
Data sheet
- Type: Commutators
- Voltage: 600V
- Poles: 4P
- Degree of protection: IP40
- Amps: 32A
