Lovato four-pole switch GN series scheme 92-63A 7GN6392O98

Lovato
Lovato
LOV 7GN6392O98 3850144002647

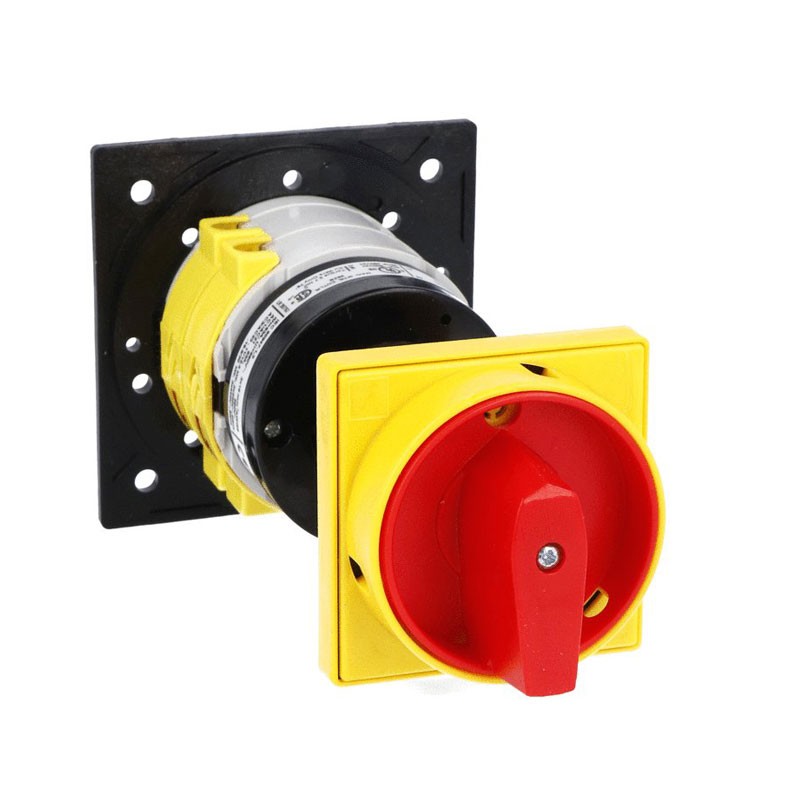

Lovato 7GN series rotary cam switch with the following characteristics:

  • IEC/EN rated insulationvoltageUi: 690V
  • Rated impulse withstand voltage Uimp: kV 6
  • Rated operating voltage: 480V
  • Rated operating impulse voltage: kV 4
  • Conventional free air thermal current Ith: IEC/EN UN 63
  • Operating current: IEC UN 63
  • Power dissipation: 3.4W
  • Screw terminals: M5
  • Tightening torque for terminals max: Nm 2
  • Mechanical life: 5x106 cycles
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato four-pole switch GN series scheme 92-63A 7GN6392O98
€85.07
€85.07

€85.07
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€85.07

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Lovato series
  • Operating temperature: -25/+55°C
  • Storage temperature: -40/+70°C
  • Switching scheme: 92 - 4-pole ON/OFF switch
  • Number of elements: 2
  • Mounting module: rear mounting with red/yellow padlockable handle in 0, door coupling and protective cover
  • Rear mounting with red/yellow padlockable handle in 0
  • Door coupling and protective covers, front plate 65X65mm
  • Frontal IP grade: IP40
  • IP grade of terminals IP00

There are no reviews

Data sheet

Type:
Commutators
Voltage:
690V
Poles:
4P
Degree of protection:
IP40
Amps:
63A
