Lovato line switch GN series scheme 53- 16A 7GN1253U
LOV 7GN1253U
3850144002333

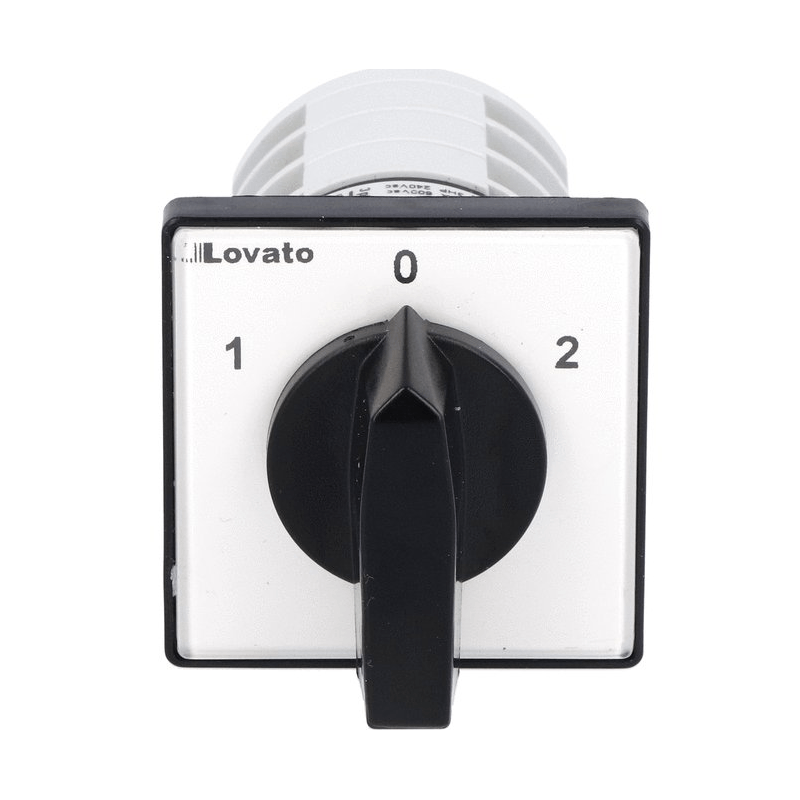

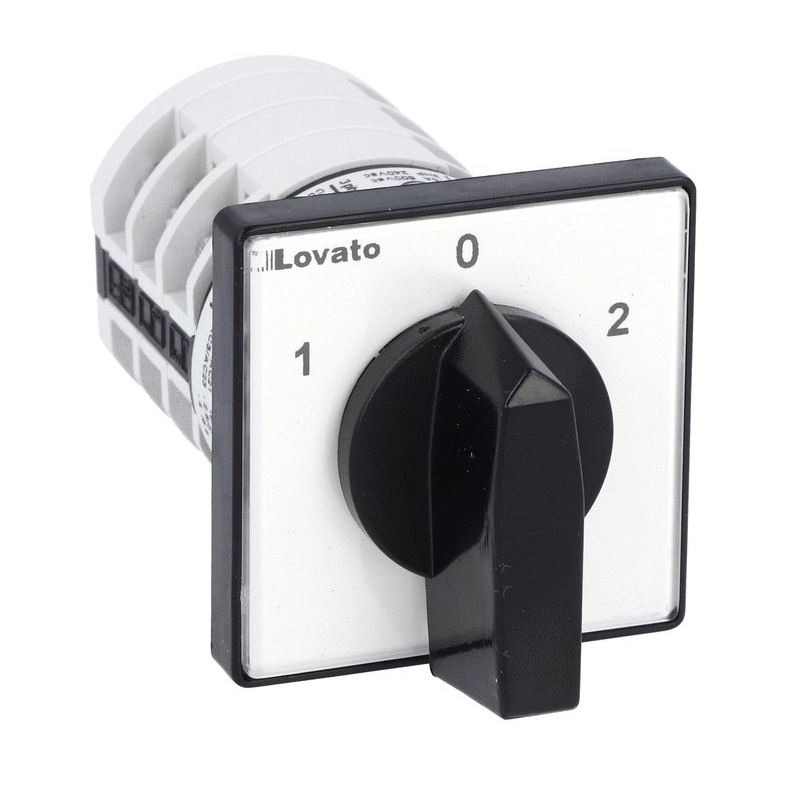

Lovato 7GN series rotary cam switch with the following characteristics:
- Rated insulation voltage Ui: IEC/EN 690V - UL/CSA 600V
- Rated impulse withstand voltage Uimp kV 6
- Conventional free air thermal current Ith: IEC/EN UN 16 - UL/CSA UN 15
- Rated operating voltage: 480V
- Rated operating impulse voltage: kV 4
- Mounting module: front mounting with black handle
- 3 poles - 3 elements
- Rated short-time withstand current Icw: 1s UN 200
€20.90
Items Available: 1
Other technical characteristics:
- Conductivity: 10/5 mA/V
- Power dissipation: 0.8W

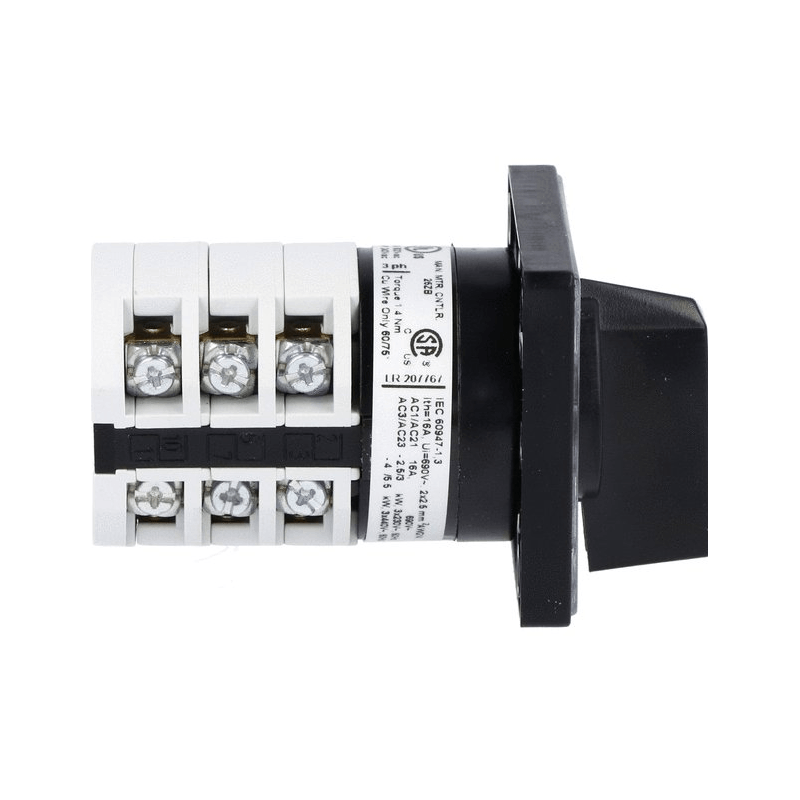

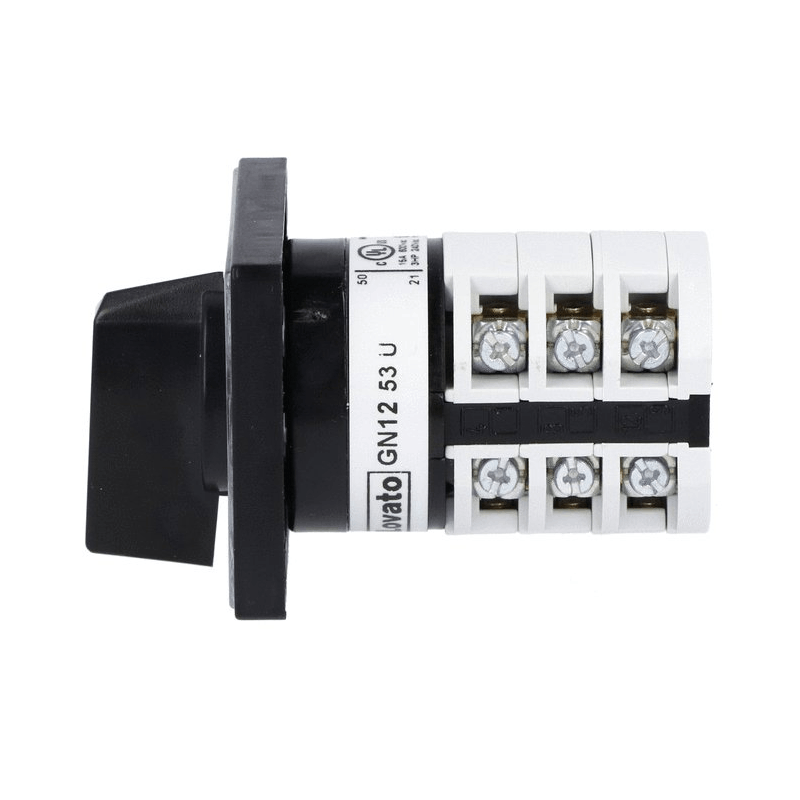

- M3 screw terminals
- Tightening torque for terminals max Nm: 0.5
- Mechanical life: 3x10⁶ cycles
- Operating temperature: -25/+55°C
- Storage temperature: -40/+70°C
- IP rating of front plate IP40 - IP rating of terminals IP00

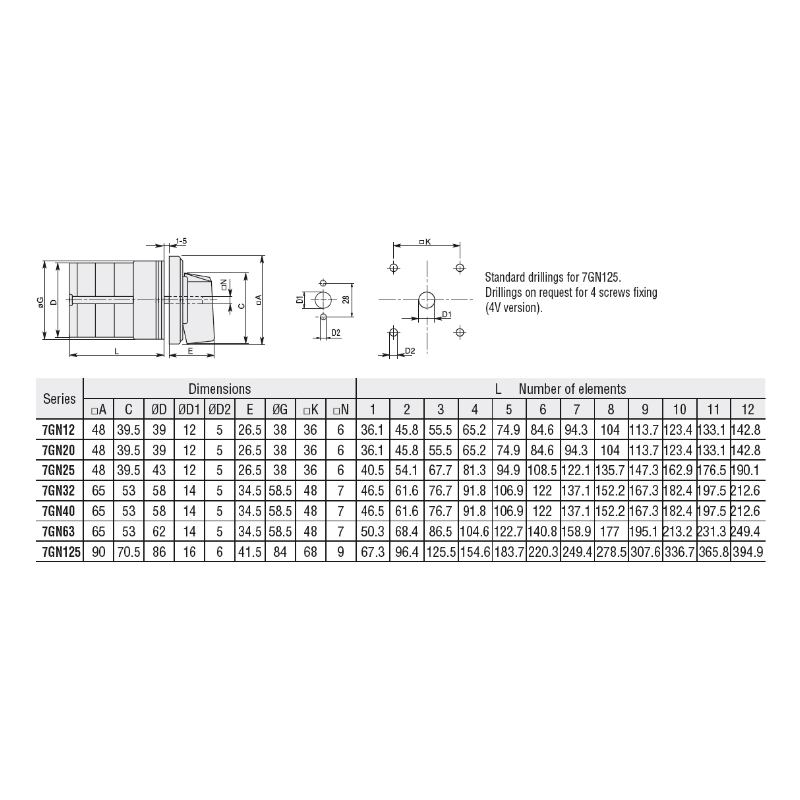

- Dimensions: front plate 48x48mm
There are no reviews
Data sheet
- Type: Commutators
- Voltage: 600V
- Poles: 3P
- Degree of protection: IP40
- Amps: 16A
