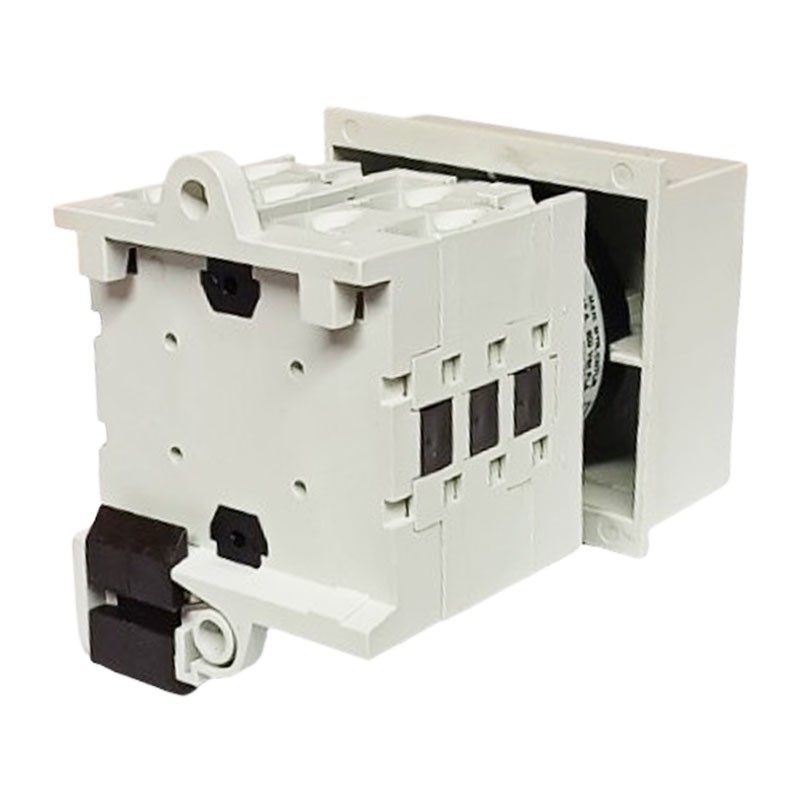

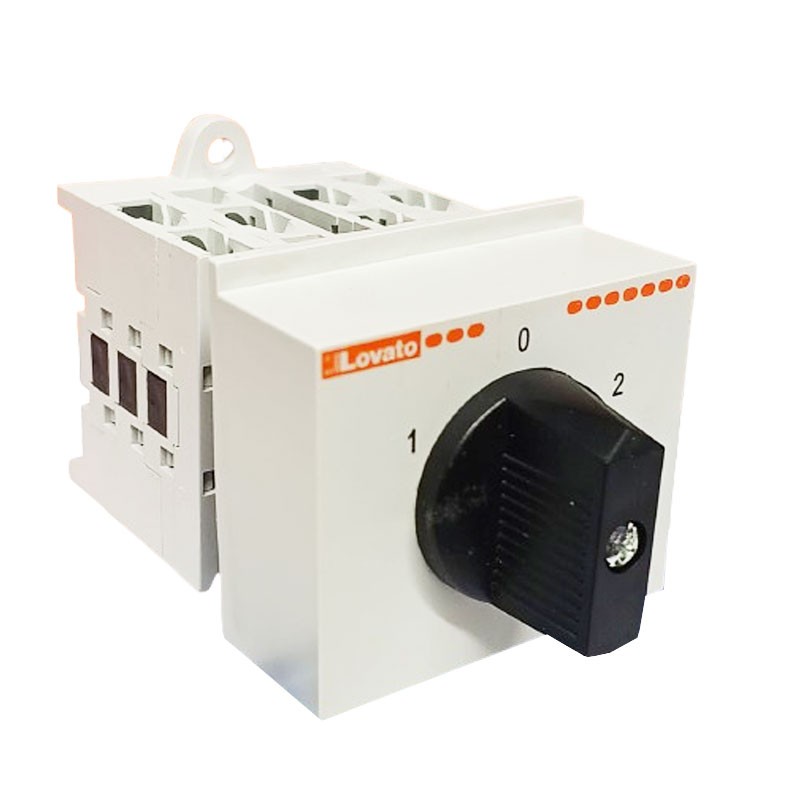

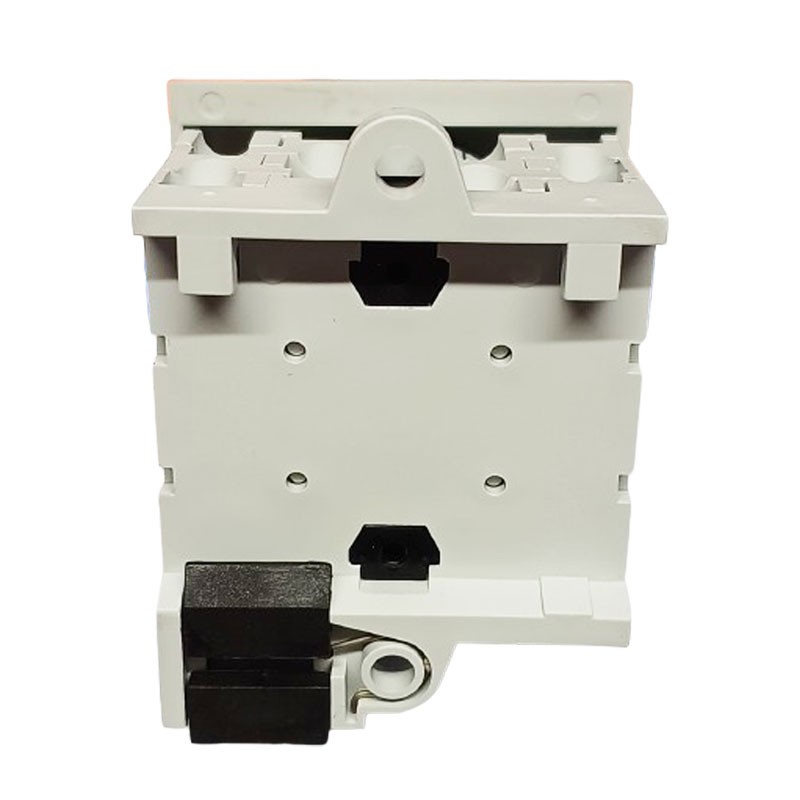

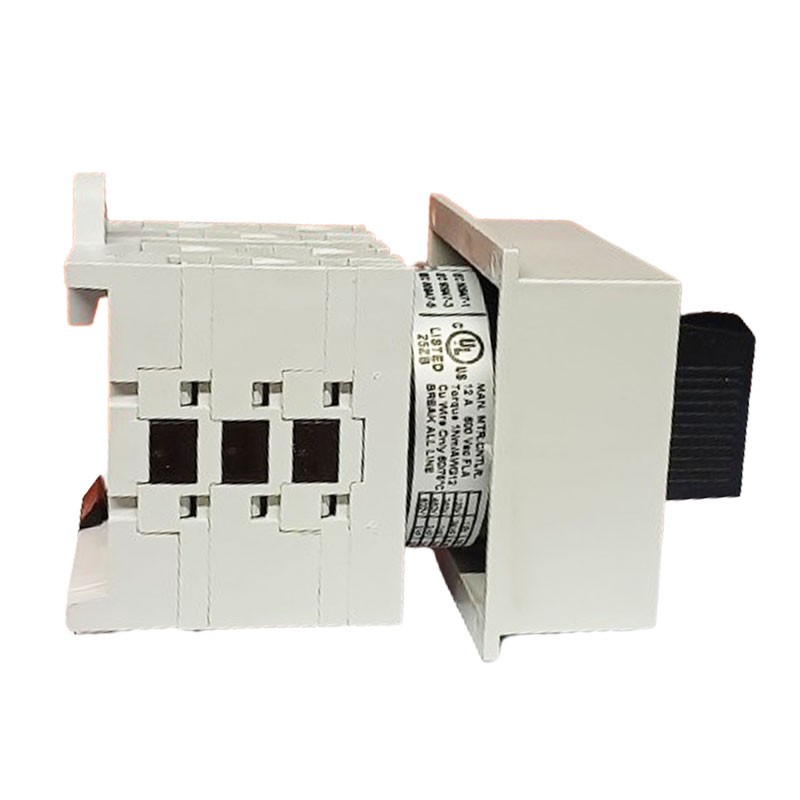

Lovato 16A GX series three-pole DIN mount switch GX1653048
LOV GX1653O48
8013975100608
Lovato GX SERIES rotary cam switch:
- Rated insulation voltage: 690V
- Rated operating voltage 440V
- Power dissipation 0.6W,
- 3 poles
- 16 amps
- 3M screw terminals
- Tightening torque for terminals max Nm 0.5
- Modular service cover for 35mm DIN rail mounting
- With black handle and 45x54mm face plate
- IP rating of front panel IP65
- IP rating of terminals IP20
- Operating temperature: -25/+55°C
- Storage temperature: -40/+70°C
€25.55
Items Available: 24
: 13
Data sheet
- Type: Commutators
- Voltage: 440V
- Poles: 3P
- Degree of protection: IP65
- Amps: 16A
