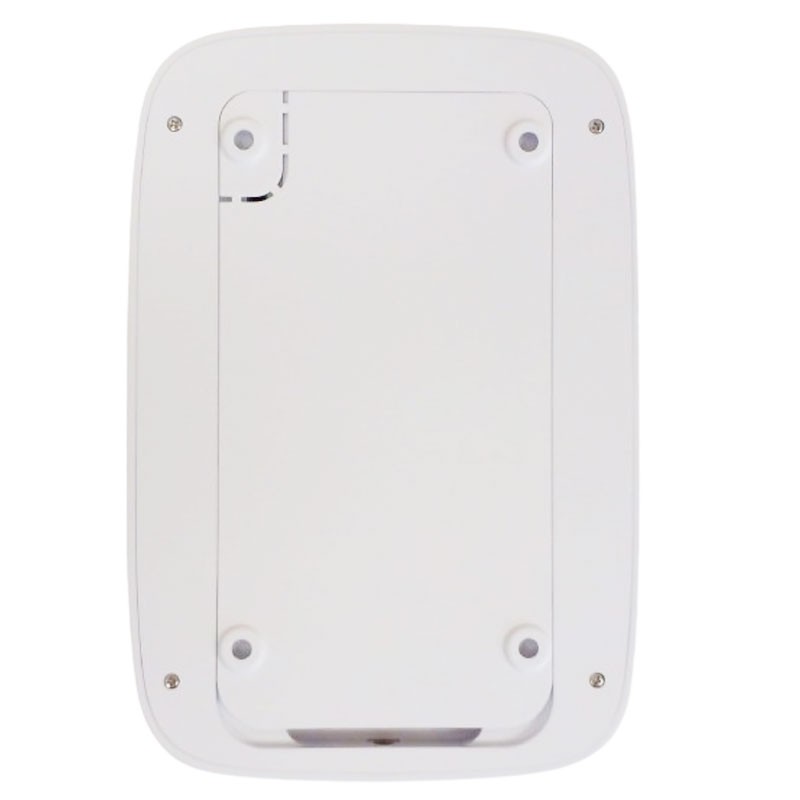

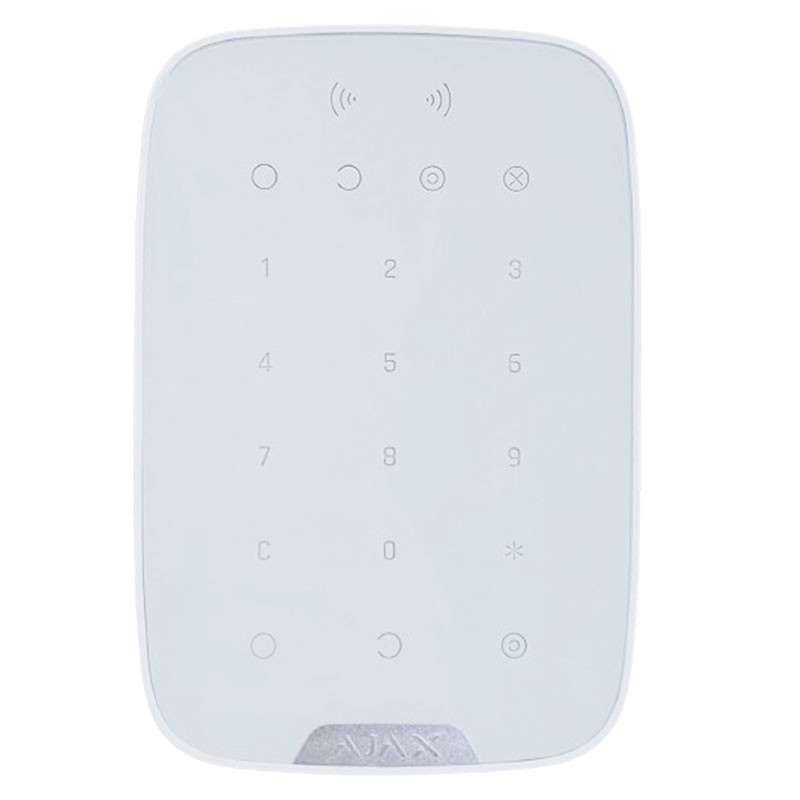

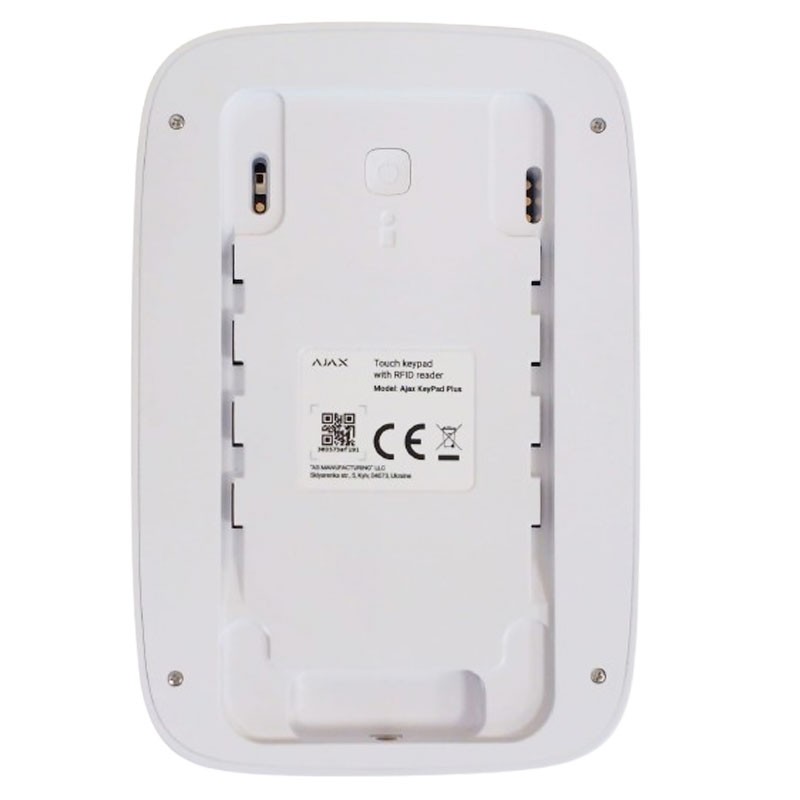

Ajax KeyPad Plus Jeweller Wireless Keyboard White
08T 38253
4823114015397
The Ajax KeyPad Plus Jeweller white, is a state-of-the-art wireless touch keyboard designed to control Ajax system security modes with maximum simplicity, speed and protection.
It supports PIN codes, Pass cards and Tag key fobs with DESFire® encrypted technology for secure contactless authentication inaccessible to hackers.
Wireless touch keyboard with 4 control modes:
- System on/off
- Night mode activation
- Specific area management
- Panic button
Authentication by:
- Numeric codes (up to 99 for unregistered users)
- Pass cards and Tag key fobs (DESFire® chip)
Key features:
- Jeweller technology: range up to 1,700 m in open field
- Battery life: up to 3.5 years with 4 AAA batteries preinstalled
- Encrypted communication, anti-jamming system and tamper protection
- Event logging and access management via Ajax app
- Support for coercion code (simulates unlocking and sends silent alarm)
- Automation scenario control (e.g., lights, shutters, water)
- Proxi White Contactless key fob accessory code 23526.
€162.11
Items Available: 56
: 3
Frequently bought together
KeyPad Plus Ajax Keyboard, Smart Security with Contactless Authentication
Jeweller's KeyPad Plus offers transparent and secure management of an Ajax system. It controls security modes, activates Night Mode, and manages specific areas with a single device. KeyPad Plus supports Pass cards and Tag key fobs with DESFire® chips that are virtually impossible to hack, as well as various access codes. The device is connected wirelessly to a hub at a maximum distance of 1,700 m1. Batteries last up to 3.5 years.
Keypad Authentication Methods
KeyPad Plus supports contactless access devices, such as Pass cards or Tag key fobs, as well as codes for user authentication. Access information is available in Ajax apps. All events, including user activity and authentication details, can be viewed in the app log. The apps also allow administrators to grant, revoke, restrict, or terminate access permissions to specific users in real time.
Pass Card and Keychain Tag
When someone uses the Pass card or Tag key fob, it is recorded in the event log in the Ajax app. The administrator can revoke, restrict, or temporarily suspend access rights at any time. Administrators can also modify users' rights by expanding or limiting their access to specific areas.
Code
KeyPad Plus supports the following code types:
- keypad code (one per keypad)
- personal code (individual codes for up to 200 users)
- codes for unregistered users (up to 99 codes)
- duress codes (one keypad code and up to 200 personal codes)
Contactless access devices for the Keypad
Pass card and Tag keypad are equipped with original DESFire® chips and have the same functionality but with different cases. Users can choose the most convenient form for them. One Tag or Pass can manage up to 13 security systems. Access devices are sold separately in batches of 3/10/100.
Top-level data protection of tasteira Ajax
To identify users quickly and securely, KeyPad Plus Jeweller is equipped with DESFire® technology. It is the industry-leading contactless solution for identifying the user via a card or key fob.
DESFire® complies with the international ISO 14443 standard and combines full 128-bit encryption with copy protection. This technology is also used in European capital transport systems and NASA access systems.
Access codes for unregistered users
By simply assigning a personal access code in the hub settings, office employees, cleaning staff, or others can access the area with the utmost convenience.
- Creating and editing codes remotely
- Notifications of code addition, removal and deactivation
- A unique name and ID to identify the user
- Up to 99 keypad codes
Panic button for complete protection
KeyPad Plus is equipped with a panic button that triggers an alarm. The panic button can be set to notify users of the alarm, activate sirens, or run an automation scenario. If the user is forced to disarm the system, they can use a duress code. After the code is entered, the keypad simulates regular disconnection and sends an alarm to the security company. KeyPad Plus has a coercion code for the device and supports individual codes for up to 200 users3, including unregistered users.
Intelligent security management console
KeyPad Plus is also an easy way to use automation scenarios. Simply change the security mode via keypad or press a panic button on the device. The Ajax system automatically turns off lights, water, and appliances. In addition, the system closes the shutters when the user leaves the premises and engages the system.
Ajax Keypad Technical Specifications
Ajax Device Compatibility
| Compatible Devices |
|---|
| Hub (4G) Jeweller |
| Hub 2 (2G) Jeweller |
| Hub 2 (4G) Jeweller |
| Hub 2 Plus Jeweller |
| Hub BP Jeweller |
| Hub Hybrid (2G) |
| Hub Hybrid (4G) |
| Hub Hybrid (4G) (without casing) |
| Hub Plus Jeweller |
| ReX 2 Jeweller |
| ReX Jeweller |
Jeweller Communication Technology
| Feature | Description |
|---|---|
| Description | Proprietary wireless communication technology for transmission of commands, alarms and events. |
| Key Features. | - Two-way communication. - Advanced anti-sabotage system. - Block encryption with mobile key. - Instant notifications. - Remote control and configuration in Ajax apps. |
| Operating frequencies | - 866.0-866.5 MHz - 868.0-868.6 MHz - 868.7-869.2 MHz - 905.0-926.5 MHz - 915.85-926.5 MHz - 921.0-922.0 MHz Based on sales region. |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Automatic power control | Reduces power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | Up to 1,700 m (between keyboard and hub or repeater in open field) |
| Encrypted communication | All saved and transmitted data are protected by block encryption with a moving key. |
| Frequency hopping | To avoid radio interference and signal inhibition. |
Main Features
| Feature | Description |
|---|---|
| Sensor type | Capacitive |
| Malfunctions and safety modes | Active LED indication for safety mode, problems with detectors or loss of communication with the hub |
| Functional button | - Alarm: sends alarm to hub and activates sirens - Silence fire alarm: disables interconnected fire alarms - Off: button disabled |
| Control | Codes, Pass cards, Tag key fobs (identical function, different design) |
| Access via DESFire® | EV1, EV2 - ISO 14443-compliant technology with 128-bit encryption and copy protection |
| Access codes | - Up to 200 personal codes (one per user, depends on hub model) - 1 keypad code (general for KeyPad Plus) |
| Coercion codes | - Up to 200 personal codes (one per user, depends on hub model) - 1 keypad code (general for KeyPad Plus) |
| Codes for unregistered users | Up to 99 personal codes (depends on the hub model) |
| Area security management | General keypad code entry + area ID to manage specific security |
Antisabotage protection
| Feature | Description |
|---|---|
| Protection against code guessing attempts | KeyPad Plus locks for 3-180 minutes if an incorrect code is entered more than 3 times within 1 minute. Time adjustable by a PRO or administrator in the Ajax app. |
| Tamper alarm | Notifications if an attempt is made to detach the keyboard from the surface or remove it from the mounting panel. |
| Counterfeit protection | Device authentication |
| Detection of connection loss | Within 36 s (depends on Jeweller or Jeweller/Fiber settings) |
Power supply
| Feature | Description |
|---|---|
| Batteries | 4 × AA (preinstalled) |
| Type | Type C |
| Calculated battery life | up to 3.5 years |
| Operating voltage | 2,25-3,3 V⎓ |
| Rated voltage | 3 V⎓ |
| Quiescent current consumption | 0.064 mA |
| Maximum current consumption | 165 mA |
| Full battery capacity | 12,000 mAh |
| Low battery voltage | 2,5 V⎓ |
| Low recovery voltage | 2,7 V⎓ |
| End-of-life voltage | 2.25 V⎓ (device is turned off) |
| Capacity at end of life | 500 mAh |
| Manufacturer | Huiderui, Energizer |
Case
| Feature | Description |
|---|---|
| Dimensions | 165 × 113 × 20 mm |
| Weight | 267 g |
| Operating temperatures | -10 °C to +40 °C |
| Maximum allowable humidity | up to 75% |
Contents in the Package
| Element | Description |
|---|---|
| Main device | KeyPad Plus Jeweller |
| Mounting panel | SmartBracket |
| Batteries | 4 AA batteries (preinstalled) |
| Installation accessories | Installation kit |
| Documentation | Quick Start Guide |
