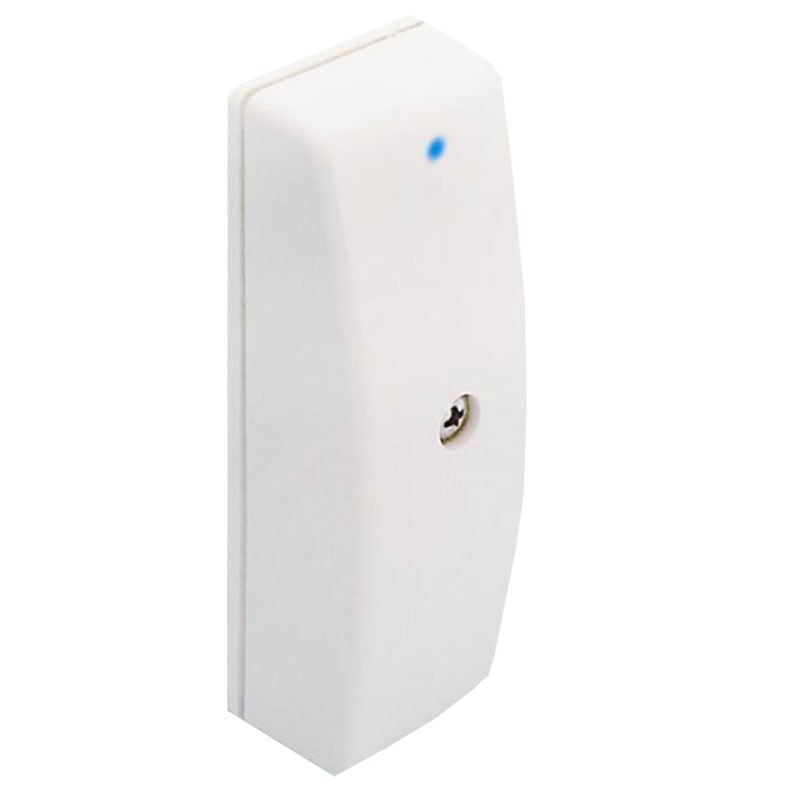

Hiltron electronic seismic sensor for XM XM70S series
C1A XM70S
Hiltron electronic shock detector sensor for XM Series.
€29.08
Items Available: 14
: 3
INSTALLATION:
- Securely fasten the sensor vertically to the surface.
- Check to make sure the base fits tightly. This allows vibrations to reach the piezoelectric sensor without being dampened by other materials in the way.
- Use the two pre-marked holes to screw the sensor base if the surface allows it, or use an appropriate adhesive.
- Position the circuit by matching the three holes to the pins on the base.
- Make the electrical connection
Features:
- Hiltron Series
- Connection on MPX bus line 2 wires / 3 wires
- Tamper protection
- White color
- Wall and glass installation
- Nominal supply voltage 12Vdc ±10% (also only from two wires MPX line)
- Maximum absorption 2mA(on +12V); 1mA (on MPX)
- Sensitivity levels 8 (from 50mS to 225mS with 25mS step)
- Channel anti-sabotage 24h
- Coverage 1.5 meters (concrete) ÷ 3.5 meters (glass, wood, steel)
- Programmable signaling LED
- External container Nylon
- Operating temperature: +5°C ÷ 40°C
- Safety grade 1
- Environmental class 2
- Complies with CEI EN 50131-1 standards
Dimensions (mm)
- (L) 77mm
- (H) 26mm
- (D)24.5mm
There are no reviews
Data sheet
- Type: Sensors
- System: With Wires
