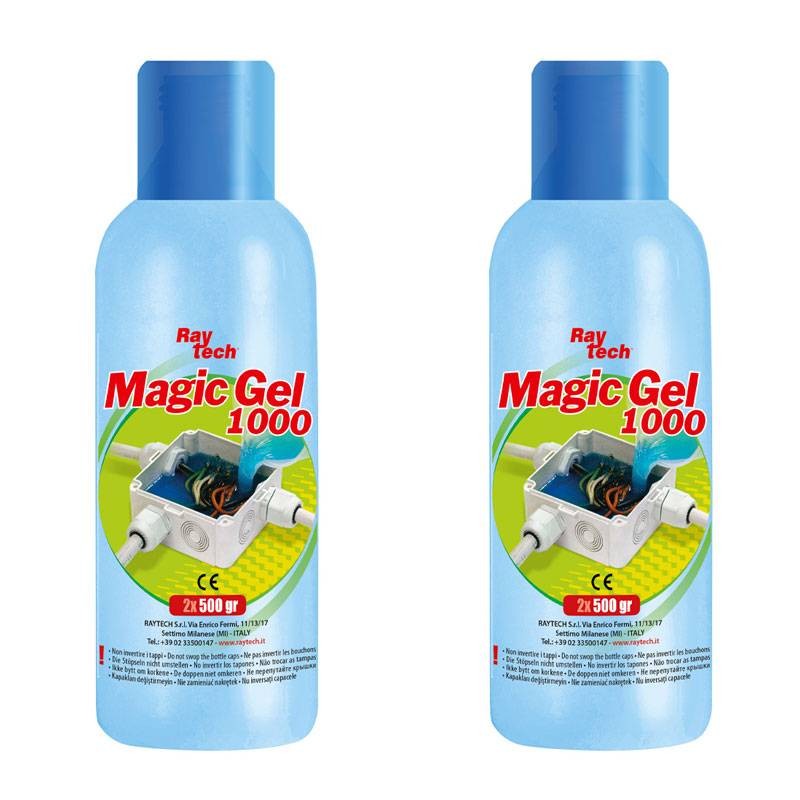

Raytech Insulating Cable Sealing Gel 2 x 500 ml MAGIC-GEL
RYT MAGIC-GEL
8032853651650
Raytech sealing insulation gel for cables with the following characteristics:
- Dielectric strength: >20 kV/mm
- Cross-linking time: fast (about 10 min. at 23°C)
- Volume resistivity: >2 . 1015 cm
- Operating temperature: -60°C / +200°C
- Overload temperature for limited time: up to 250°C
- Stabilized for: mold - UV
- Degree of protection: IP68
- Capacity: 2 Bottles of 500 ml
Gel of very high dielectric and thermal properties, ideal for connection systems (muffles or cassettes) for power cables.
€43.83
Items Available: 169
: 19

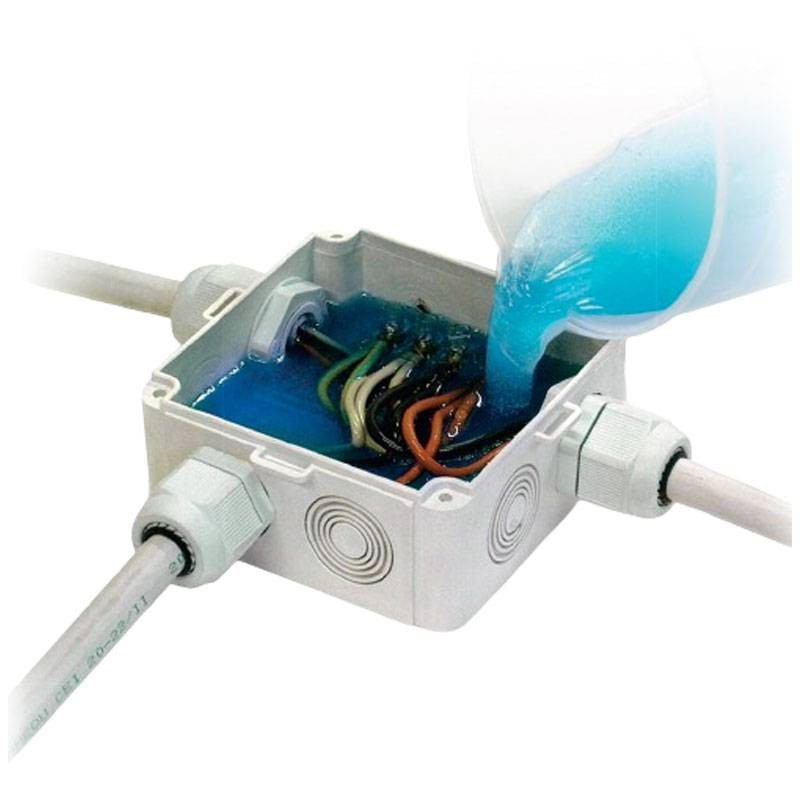

The insulating and sealing gel cast in suitable enclosures provides IP68 protection and is capable of replacing any type of resin. It is a polymer-type, bottled self-sealing insulator with cold cross-linking.
Once poured, the insulation, characterized by very low viscosity, engulfs and coats any type of material by cross-linking in less than 10 minutes. It cross-links with a very low isothermal peak that does not thermally stress the materials with which it comes in contact.
Advantages:
- For all applications characterized by high tensions and high temperatures.
- Gel not classified as hazardous according to CLP Directive
- Fast cross-linking (only 10 minutes)
- Low viscosity
Package contents: 2 bottles of 500 ml each, 1 measuring cup, 1 mixing paddle.
There are no reviews
Data sheet
- Type: Sealants
