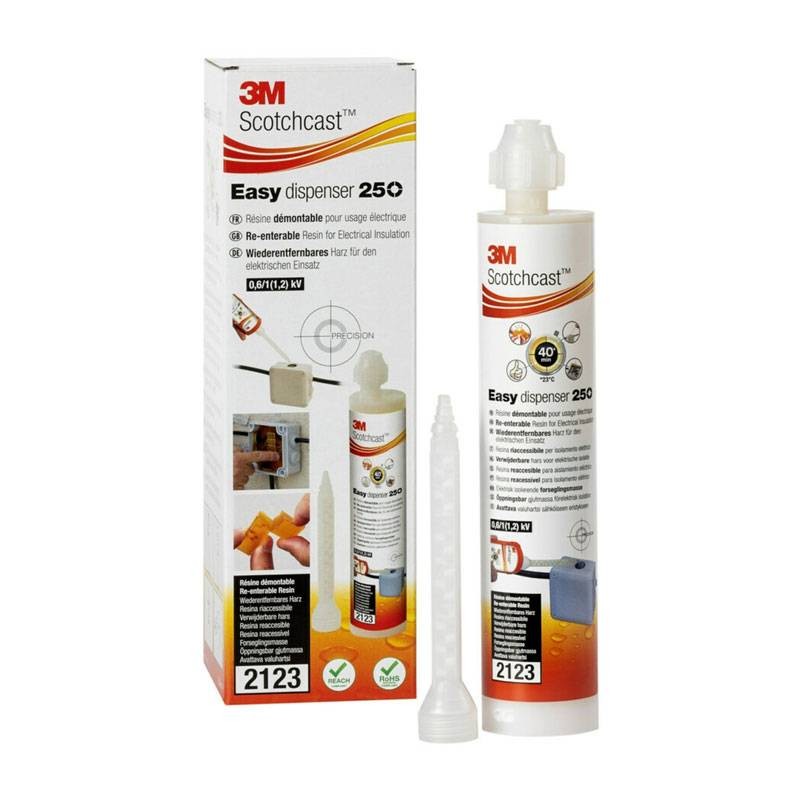

3M Scotchcast electrical insulation resin in 250ml dispenser 7100231726
3MI 7100231726
4054596840645
3M Scotchcast 2123 re-accessible resin is a high-performance solution for insulating and protecting low-voltage cable connections in industrial and residential environments. Packaged in 250-mL dispensers, it is ideal for junction boxes, providing long-lasting protection against moisture and wear:
- Two-component polybutadiene resin: Flexible and soft, formulated for effective curing at room temperature
- Easy application: Thanks to the Easy Dispenser 250 system, it flows easily even at low temperatures, filling the joint evenly
- Strong and durable: Withstands a continuous temperature of 90 °C and has excellent wetting properties and low viscosity
- Effective insulation up to 1 kV: Provides electrical protection for low-voltage connections
- Certifications: Complies with RoHS Directive 2011/65/EU and CENELEC standards HD 623.S1 (EN50393).
€29.65
Items Available: 27
: 22
3M Scotchcast electrical insulation resin Reliable protection
Scotchcast 2123 resin is designed for safe and re-accessible electrical insulation, protecting cable connections up to 1 kV. With its low viscosity and ability to effectively fill the enclosure, this resin minimizes voids and prevents moisture infiltration.
Safety and regulatory compliance
This resin complies with RoHS and REACH regulations, making it suitable for applications in professional environments. Its gelling time of 62 minutes at 23 °C (73 °F) makes it easy to handle and apply, while its flexibility and re-accessibility properties allow the joints to be reworked when necessary.
Detailed technical specifications
- Model: 3M Scotchcast 2123
- Format: Easy Dispenser 250, 250 ml
- Hardness: 0 Shore A (ASTM D2240)
- Gelling time: 62 minutes at 23 °C
- Maximum temperature in continuous use: 90 °C
- Rated voltage: Up to 1 kV
- Compliance: RoHS 2011/65/EU, REACH 1907/2007/EC, CENELEC HD 623.S1 (EN50393)
There are no reviews
Data sheet
- Type: Sealants
