Ziggiotto grooved concentric reduction 2x1 1/4 inches 50x32mm B0240060042
914 B0240060042

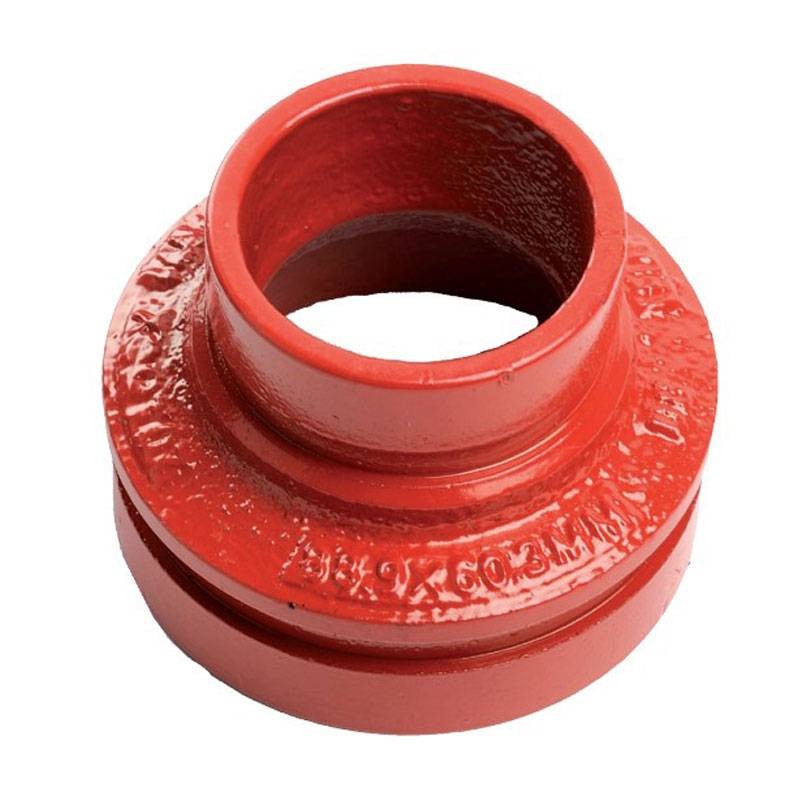

Ziggiotto grooved concentric reducer, ideal for high-pressure hydraulic systems. Compatible with water and glycol (up to 15%) and UL/FM certified, it provides a smooth and safe transition between two different pipe diameters, with the following features:
-
Nominal diameter: 2 x 1 1/4 inches (50x32 mm)
-
Outer diameter: 60.3x42.2 mm
-

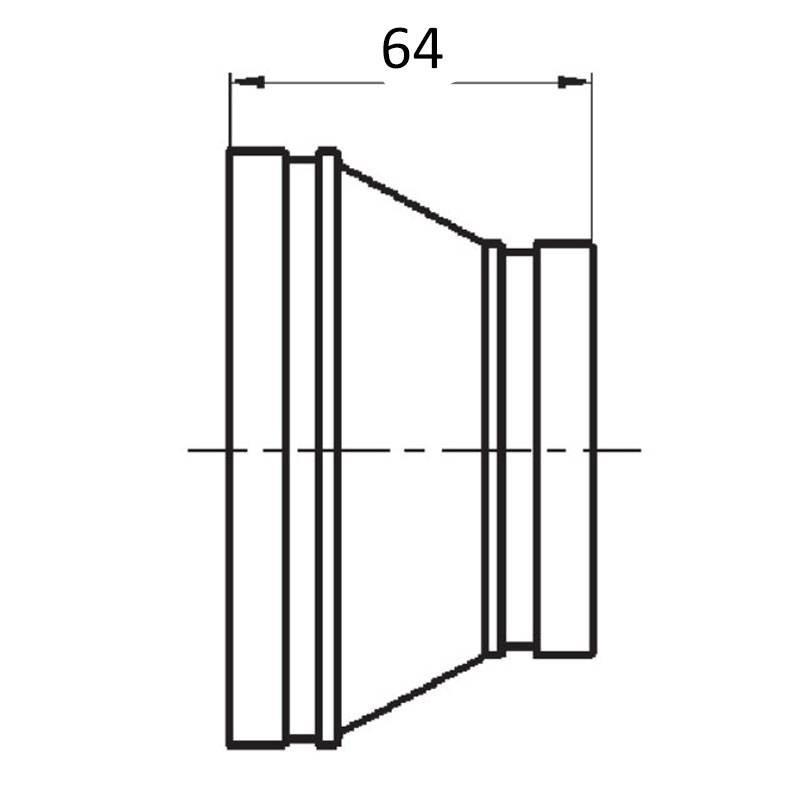

Length: 64 mm
-
Nominal pressure rating: PN500
-
Compatible with: Water and glycol systems (max 15%)
-
Certifications: UL / FM
-
Alternative to: Welding, flanging and threading
€5.08
Items Available: 10
: 9
Grooved concentric reduction junction between different diameters
The grooved concentric reduction is an essential component for installations that need transitions between pipes of different diameters while maintaining hydraulic continuity and mechanical strength. The grooved system allows a quick, reliable and reversible connection, perfect for installation or maintenance work.
Versatility of use
Thanks to its UL/FM certification, the reduction is particularly suitable for fire protection, HVAC and industrial water distribution systems. It is compatible with water- and glycol-based fluids up to a concentration of 15 percent.
Technical Specifications Ziggiotto Concentric Reducer
| Nominal diameter | 2x 1 1/4 inches (50x32 mm) |
| Pipe outer diameter | 60.3x42.2 mm |
| Nominal pressure | PN500 |
| Length | 64 mm |
| Connection system | Groove (rolling or turning) |
| Compatible material | Grooved steel |
| Certifications | UL / FM |
| Compatible fluids | Water and glycol (up to 15%) |
| Applications | HVAC, fire protection, industrial systems (no potable water) |
There are no reviews
Data sheet
- Type: Reductions
- Connections: 1-1/4 inches
2 inches
