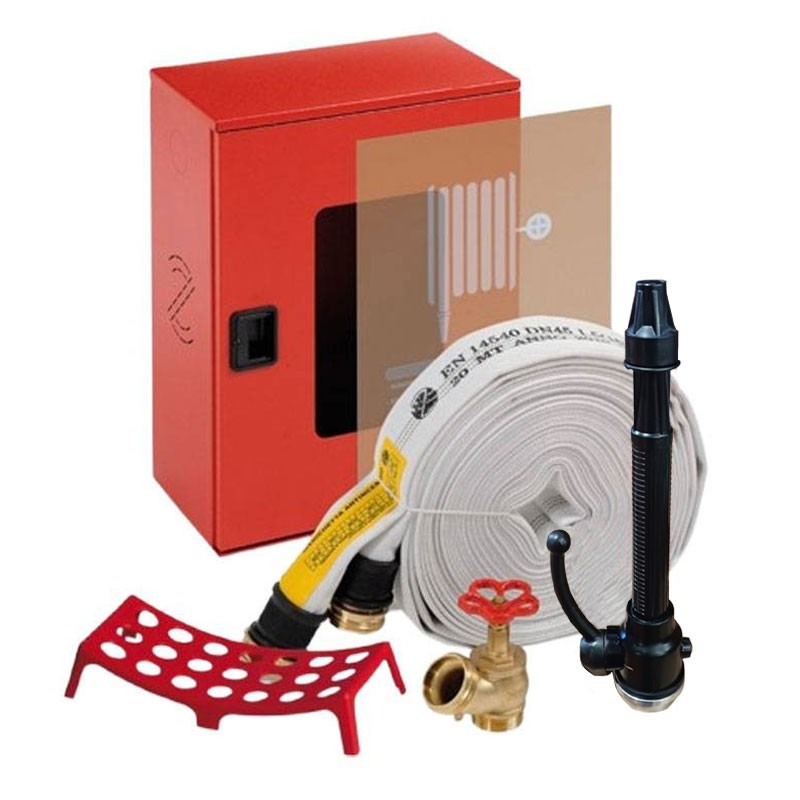

Ziggiotto Cubaslim Wall Hydrant with 25-Meter Hose D9F25B
914 D9F25B
Ziggiotto Cubaslim wall-mounted hydrant with open hatch, equipped with 25-meter flexible hose and UNI 45 three-effect lance, conforming to EN 671-2:2012 with CE marking and CSI approval for indoor and outdoor firefighting systems, with the following features:
-
Box: Painted sheet metal for indoor or outdoor installation
-
Hose: DN 45 25-meter flexible hose certified EN 14540
-
Hydrant tap: DN 45 PN 16 brass with ISO 7 threading
-
Fire hydrant nozzle: UNI 45 with three effects included Black
-
Hatch: Frangible plate with screen printing to standard
-
Conforms to standard: EN 671-2:2012 with approval CSI 0497/CPR/276
€148.45
Items Available: 14
: 13
Frequently bought together
Cubaslim wall hydrant safety and compactness
Ziggiotto's Cubaslim wall hydrant represents a compact, high-performance solution for fire protection in both indoor and outdoor environments. Designed to fit into even the smallest spaces, this device combines strength, practicality and compliance with current regulations.
Sturdy structure and functional design
The box made of red painted sheet metal is available with an open door equipped with frangible sheet. Ventilation louvers, provision for water connection, and a lock with seal hole make it a practical and safe system.
Complete equipment for intervention
Inside the box is a complete firefighting system: hydrant tap DN 45 PN 16 in brass, 25-meter hose DN 45 certified EN 14540 with UNI 804 fittings and tie-downs in accordance with UNI 7422. The equipment is enriched with rubber sleeves, numbered seal, red hose saver support and a UNI 45 three-effect lance, selectable from various models (Black, Florida, Gold, Roto Ø12, Arizona Ø13).
Applications and regulations
With CE marking and compliance with EN 671-2:2012, the Cubaslim hydrant is ideal for public, industrial and commercial buildings. CSI Approval No. 0497/CPR/276 guarantees the quality and reliability of the system, making it compliant with legally required fire safety requirements.
Technical Characteristics Wall Hydrant
| Dimensions | 370 mm (W) x 200 mm (D) x 520 mm (H) |
| Box | Sheet metal painted RAL3000 red |
| Tubing | DN 45 flexible hose, length 25 meters, EN 14540 standard |
| Tap | DN 45 PN 16 brass, ISO 7 |
| Lance | UNI 45 with three effects Black |
| Accessories included | Numbered seal, red hose guard, rubber sleeves |
| Certifications | CE, EN 671-2:2012, CSI 0497/CPR/276 |
| Installation | Indoor/outdoor |
There are no reviews
Data sheet
- Type: Fire sprinkler systems
- Model: Collection
